Chiaravalli

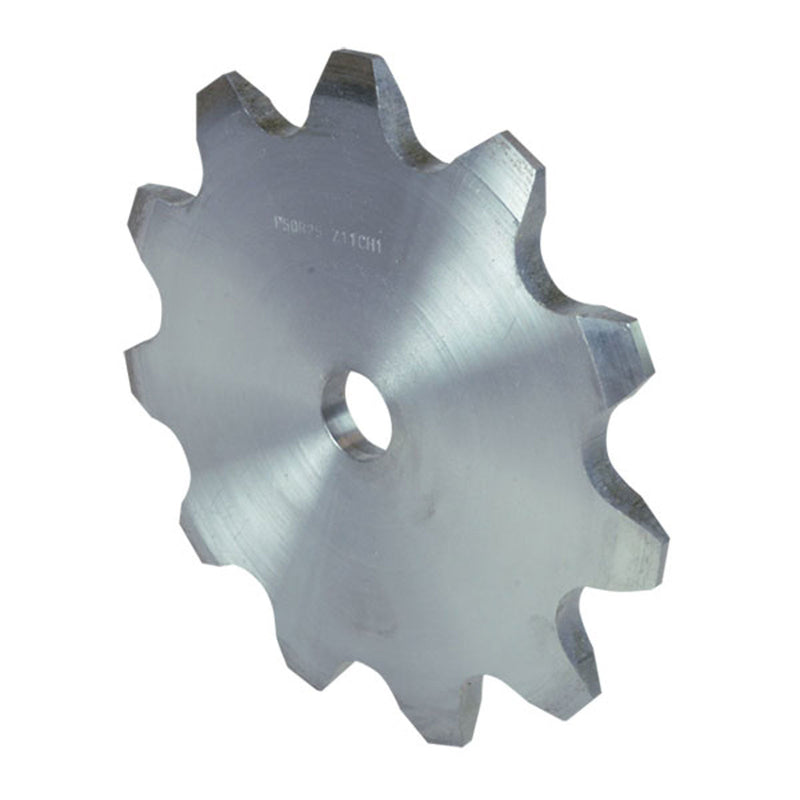

Platewheel for Conveyor and Elevator Chains P50 — Roller 31

Name: Chiaravalli Platewheel for Conveyor and Elevator Chains P50 — Roller 31
Brand: Chiaravalli

Simplex platewheel for P50 conveyor and elevator chain with Ø 31 mm rollers.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`24503106`	`6`	`20` mm	`116.2` mm	`100` mm	`0.75` kg
`24503107`	`7`	`20` mm	`133.8` mm	`115.24` mm	`1.0` kg
`24503108`	`8`	`20` mm	`152.3` mm	`130.6` mm	`1.1` kg
`24503109`	`9`	`20` mm	`167.9` mm	`146.2` mm	`1.71` kg
`24503110`	`10`	`25` mm	`183.5` mm	`161.85` mm	`2.02` kg
`24503111`	`11`	`25` mm	`199.2` mm	`177.5` mm	`2.31` kg
`24503112`	`12`	`25` mm	`212` mm	`193.2` mm	`2.5` kg
`24503113`	`13`	`30` mm	`230.6` mm	`208.95` mm	`2.98` kg
`24503114`	`14`	`30` mm	`246.4` mm	`224.7` mm	`4.05` kg
`24503115`	`15`	`30` mm	`262.1` mm	`240.45` mm	`4.9` kg
`24503116`	`16`	`30` mm	`278` mm	`256.3` mm	`5.04` kg
`24503118`	`18`	`30` mm	`309.6` mm	`287.95` mm	`6.9` kg
`24503119`	`19`	`30` mm	`325.5` mm	`303.8` mm	`6.85` kg
`24503120`	`20`	`30` mm	`341.3` mm	`319.6` mm	`8.06` kg
`24503121`	`21`	`30` mm	`357.1` mm	`335.45` mm	`8.8` kg
`24503122`	`22`	`30` mm	`373` mm	`351.35` mm	`9.9` kg
`24503123`	`23`	`30` mm	`388.9` mm	`367.2` mm	`10.06` kg
`24503124`	`24`	`30` mm	`404.7` mm	`383.05` mm	`11.25` kg
`24503125`	`25`	`30` mm	`419.7` mm	`398.95` mm	`12.3` kg
`24503126`	`26`	`30` mm	`436.5` mm	`414.8` mm	`14.11` kg
`24503127`	`27`	`30` mm	`452.4` mm	`430.7` mm	`15.46` kg
`24503128`	`28`	`30` mm	`468.2` mm	`446.55` mm	`16.8` kg
`24503132`	`32`	`30` mm	`531.8` mm	`510.1` mm	`21.35` kg
`24503135`	`35`	`30` mm	`579.5` mm	`557.8` mm	`25.7` kg
`24503138`	`38`	`30` mm	`622` mm	`605.45` mm	`30.05` kg
