Chiaravalli

Platewheel for Conveyor and Elevator Chains P75 — Roller 25

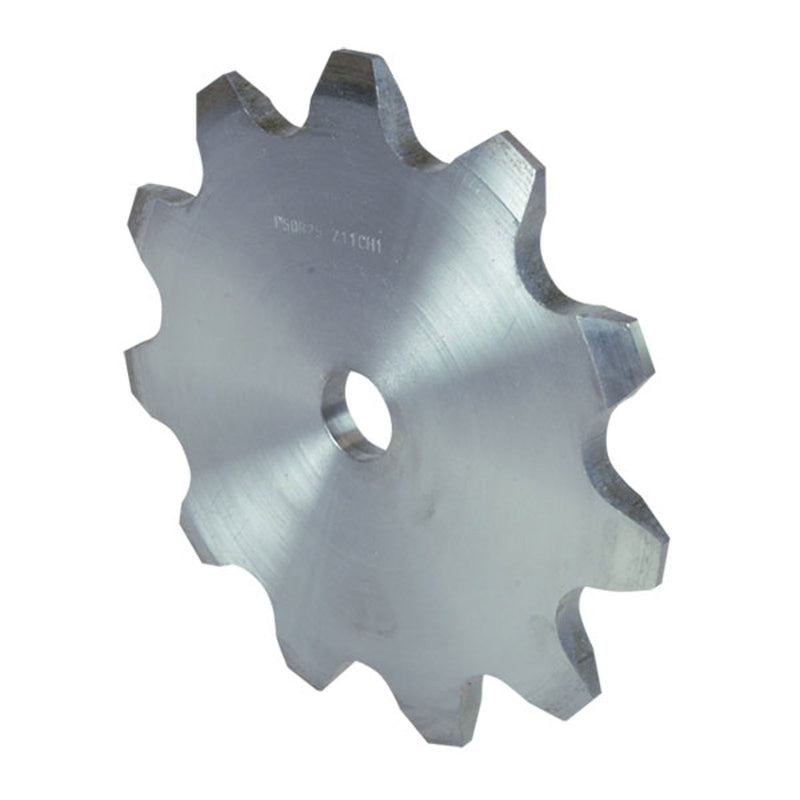

Name: Chiaravalli Platewheel for Conveyor and Elevator Chains P75 — Roller 25
Brand: Chiaravalli

Simplex platewheel for P75 conveyor and elevator chain with Ø 25 mm rollers.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`24752508`	`8`	`30` mm	`213.4` mm	`195.98` mm	`3.2` kg
`24752509`	`9`	`30` mm	`236.8` mm	`219.3` mm	`4.0` kg
`24752510`	`10`	`30` mm	`260.2` mm	`242.77` mm	`5.0` kg
`24752511`	`11`	`30` mm	`283.7` mm	`266.25` mm	`5.43` kg
`24752512`	`12`	`30` mm	`307.3` mm	`289.8` mm	`7.0` kg
`24752513`	`13`	`30` mm	`330.9` mm	`313.42` mm	`7.56` kg
`24752515`	`15`	`30` mm	`378.1` mm	`360.67` mm	`8.0` kg
`24752516`	`16`	`30` mm	`401.9` mm	`384.45` mm	`12.17` kg
`24752525`	`25`	`30` mm	`615.9` mm	`598.42` mm	`29.25` kg
