Chiaravalli

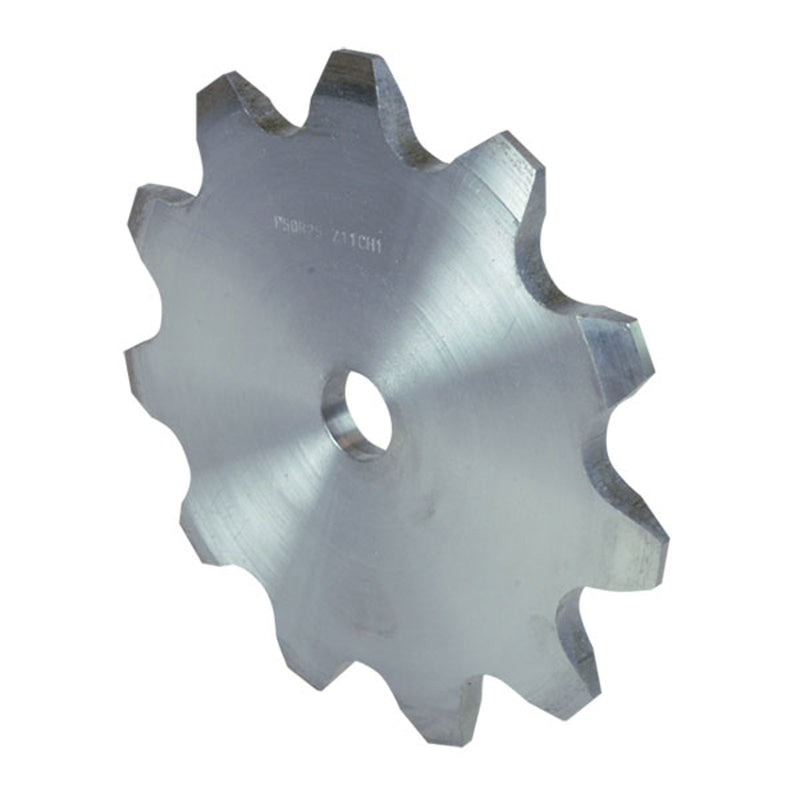

Platewheel for Conveyor and Elevator Chains P75 — Roller 31

Name: Chiaravalli Platewheel for Conveyor and Elevator Chains P75 — Roller 31
Brand: Chiaravalli

Simplex platewheel for P75 conveyor and elevator chain with Ø 31 mm rollers.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`24753108`	`8`	`30` mm	`217.6` mm	`195.98` mm	`3.5` kg
`24753109`	`9`	`30` mm	`241` mm	`219.3` mm	`3.8` kg
`24753110`	`10`	`30` mm	`264.4` mm	`242.77` mm	`4.5` kg
`24753111`	`11`	`30` mm	`287.9` mm	`266.25` mm	`5.57` kg
`24753112`	`12`	`30` mm	`311.5` mm	`289.8` mm	`6.7` kg
`24753113`	`13`	`30` mm	`334.1` mm	`313.42` mm	`7.8` kg
`24753114`	`14`	`30` mm	`358.7` mm	`337.05` mm	`9.12` kg
`24753115`	`15`	`30` mm	`382.3` mm	`360.67` mm	`10.42` kg
`24753116`	`16`	`30` mm	`406.1` mm	`384.45` mm	`11.98` kg
`24753121`	`21`	`30` mm	`524.8` mm	`503.17` mm	`20.62` kg
`24753125`	`25`	`30` mm	`620.1` mm	`598.42` mm	`27.0` kg
