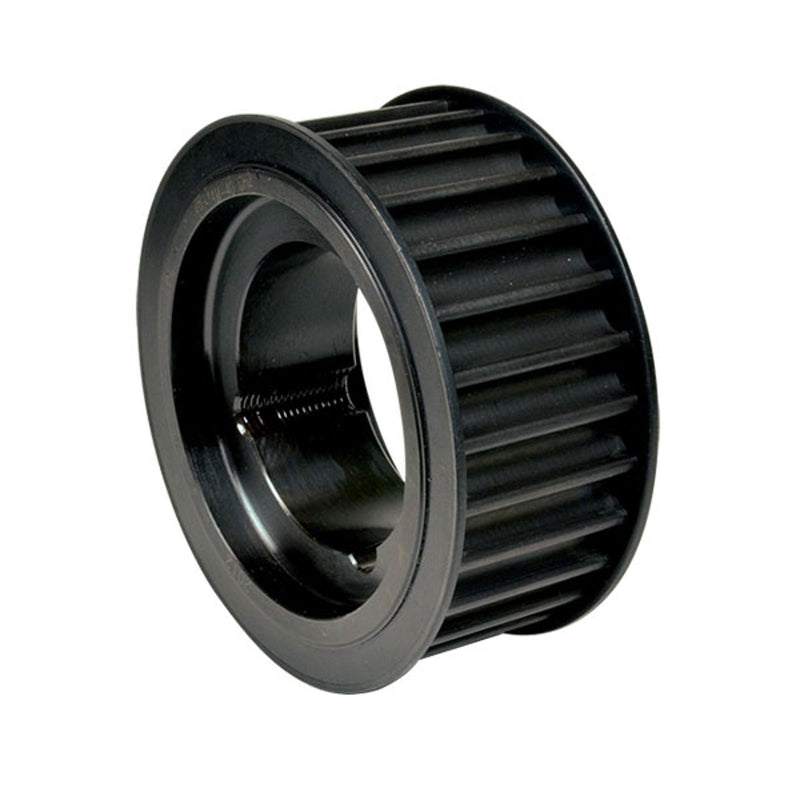

Chiaravalli Poly Chain® GT Timing Pulley 14M-125 (14 mm pitch, 125 mm belt) — product photo
Chiaravalli

Poly Chain® GT Timing Pulley 14M-125 (14 mm pitch, 125 mm belt)

Timing Pulleys

Poly Chain® GT timing pulley 14M-125 (14 mm pitch, for 125 mm belt width), teeth Z 38–192. Types without the TL prefix are pilot-bore executions; TL types mount on a Taper-Lock® bush (the Taper bush column gives the bush size, Bore max the largest bore it accepts). Material: Cast iron.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code TypeExec.Taper bushBore maxDpDeDf flangeDm hubFSP Weight CAD
48892038 14M-38S-125 1F — 115 mm 169.34 mm 166.54 mm 183 mm 141 mm 141 mm 161 mm 20 mm 20.3 kg
48892040 14M-40S-125 1F — 125 mm 178.25 mm 175.45 mm 188 mm 156 mm 141 mm 161 mm 20 mm 23.0 kg
48892044 14M-44S-125 1F — 140 mm 196.08 mm 193.28 mm 211 mm 169 mm 141 mm 161 mm 20 mm 28.8 kg
48892048 14M-48S-125 1F — 160 mm 213.9 mm 211.11 mm 226 mm 185 mm 141 mm 161 mm 20 mm 34.6 kg
48892050 TL 14M-50S-125 7F 3525 100 mm 222.82 mm 220.02 mm 240 mm — 141 mm 65 mm 38 mm 16.8 kg
48892056 TL 14M-56S-125 7F 3525 100 mm 249.55 mm 246.76 mm 256 mm — 141 mm 65 mm 38 mm 21.6 kg
48892060 TL 14M-60S-125 6 4030 115 mm 267.38 mm 264.58 mm — — 141 mm 76 mm 32.5 mm 25.6 kg
48892064 TL 14M-64S-125 6 4030 115 mm 285.21 mm 282.41 mm — — 141 mm 76 mm 32.5 mm 29.7 kg
48892072 TL 14M-72S-125 8 4030 115 mm 320.86 mm 318.06 mm — 215 mm 141 mm 76 mm 32.5 mm 30.0 kg
48892080 TL 14M-80S-125 8 4030 125 mm 356.51 mm 353.71 mm — 215 mm 141 mm 76 mm 32.5 mm 33.4 kg
48892090 TL 14M-90S-125 8 4030 115 mm 401.07 mm 398.27 mm — 215 mm 141 mm 76 mm 32.5 mm 39.4 kg
48892112 TL 14M-112S-125 10 4535 125 mm 499.11 mm 496.31 mm — 215 mm 141 mm 89 mm 26 mm 56.0 kg
48892140 TL 14M-140S-125 10 4535 125 mm 623.89 mm 621.09 mm — 215 mm 141 mm 89 mm 26 mm 73.0 kg
48892168 TL 14M-168S-125 10 5040 125 mm 748.66 mm 745.87 mm — 267 mm 141 mm 102 mm 19.5 mm 101.0 kg
48892192 TL 14M-192S-125 10 5040 125 mm 855.61 mm 852.82 mm — 267 mm 141 mm 102 mm 19.5 mm 121.5 kg

Product Information

Material
Cast iron
Pitch
14.0 mm
