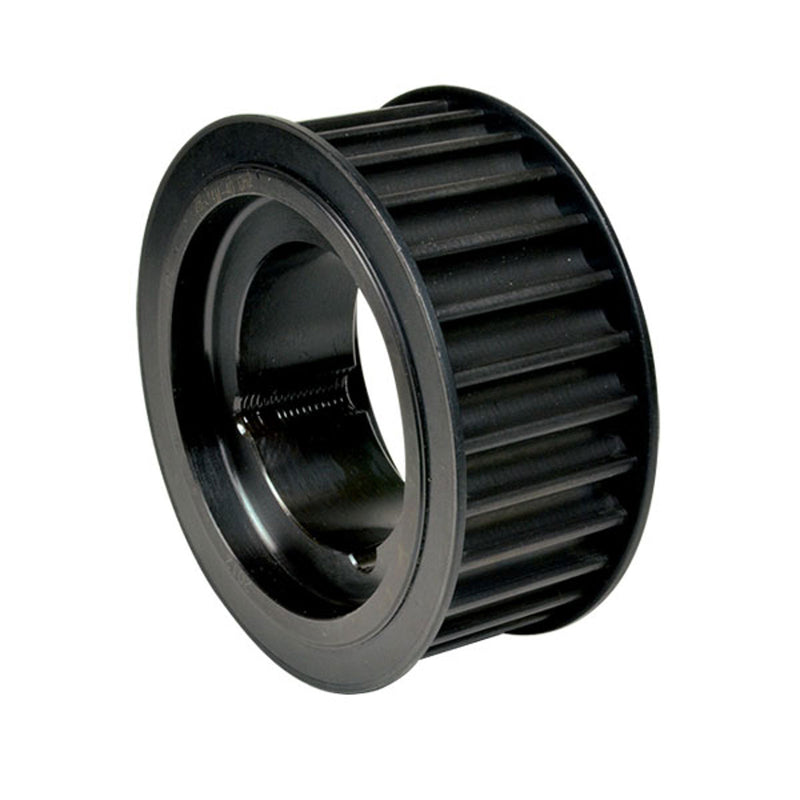

Poly Chain® GT Timing Pulley 14M-20 (14 mm pitch, 20 mm belt)

Timing Pulleys

Poly Chain® GT timing pulley 14M-20 (14 mm pitch, for 20 mm belt width), teeth Z 28–140. Types without the TL prefix are pilot-bore executions; TL types mount on a Taper-Lock® bush (the Taper bush column gives the bush size, Bore max the largest bore it accepts). Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code TypeExec.Taper bushBore maxDpDeDf flangeDm hubFSPMaterial Weight CAD
48820028 TL 14M-28S-20 4F 2012 50 mm 124.78 mm 121.98 mm 128 mm — 33 mm 32 mm 1 mm Steel C 45 1.66 kg
48820030 TL 14M-30S-20 4F 2012 50 mm 133.69 mm 130.89 mm 138 mm — 33 mm 32 mm 1 mm Steel C 45 2.2 kg
48820032 TL 14M-32S-20 4F 2012 50 mm 142.6 mm 139.8 mm 154 mm — 33 mm 32 mm 1 mm Steel C 45 3.2 kg
48820034 TL 14M-34S-20 2F 2517 60 mm 151.52 mm 148.72 mm 160 mm 117 mm 33 mm 45 mm — Steel C 45 3.0 kg
48820036 TL 14M-36S-20 2F 2517 60 mm 160.43 mm 157.63 mm 168 mm 117 mm 33 mm 45 mm — Steel C 45 3.6 kg
48820038 TL 14M-38S-20 2F 2517 60 mm 169.34 mm 166.54 mm 183 mm 117 mm 33 mm 45 mm — Steel C 45 4.0 kg
48820040 TL 14M-40S-20 2F 2517 60 mm 178.25 mm 175.45 mm 188 mm 117 mm 33 mm 45 mm — Steel C 45 4.7 kg
48820044 TL 14M-44S-20 2F 3020 75 mm 196.08 mm 193.28 mm 211 mm 144 mm 33 mm 51 mm — Steel C 45 5.6 kg
48820048 TL 14M-48S-20 2F 3020 75 mm 213.9 mm 211.11 mm 226 mm 144 mm 33 mm 51 mm — Steel C 45 6.8 kg
48820050 TL 14M-50S-20 2F 3020 75 mm 222.82 mm 220.02 mm 240 mm 144 mm 33 mm 51 mm — Steel C 45 7.7 kg
48820056 TL 14M-56S-20 12F 3020 75 mm 249.55 mm 246.76 mm 256 mm 144 mm 33 mm 51 mm 9 mm Cast iron 7.7 kg
48820060 TL 14M-60S-20 11 3020 75 mm 267.38 mm 264.58 mm — 159 mm 33 mm 51 mm 9 mm Cast iron 8.5 kg
48820064 TL 14M-64S-20 11 3020 75 mm 285.21 mm 282.41 mm — 159 mm 33 mm 51 mm 9 mm Cast iron 10.2 kg
48820072 TL 14M-72S-20 11 3020 75 mm 320.86 mm 318.06 mm — 159 mm 33 mm 51 mm 9 mm Cast iron 11.5 kg
48820080 TL 14M-80S-20 11 3020 75 mm 356.51 mm 353.71 mm — 159 mm 33 mm 51 mm 9 mm Cast iron 13.5 kg
48820090 TL 14M-90S-20 13 3020 75 mm 401.07 mm 398.27 mm — 159 mm 33 mm 51 mm 9 mm Cast iron 14.2 kg
48820112 TL 14M-112S-20 13 3020 75 mm 499.11 mm 496.31 mm — 159 mm 33 mm 51 mm 9 mm Cast iron 18.1 kg
48820140 TL 14M-140S-20 13 3020 75 mm 623.89 mm 621.09 mm — 159 mm 33 mm 51 mm 9 mm Cast iron 22.9 kg

Product Information

Pitch
14.0 mm
