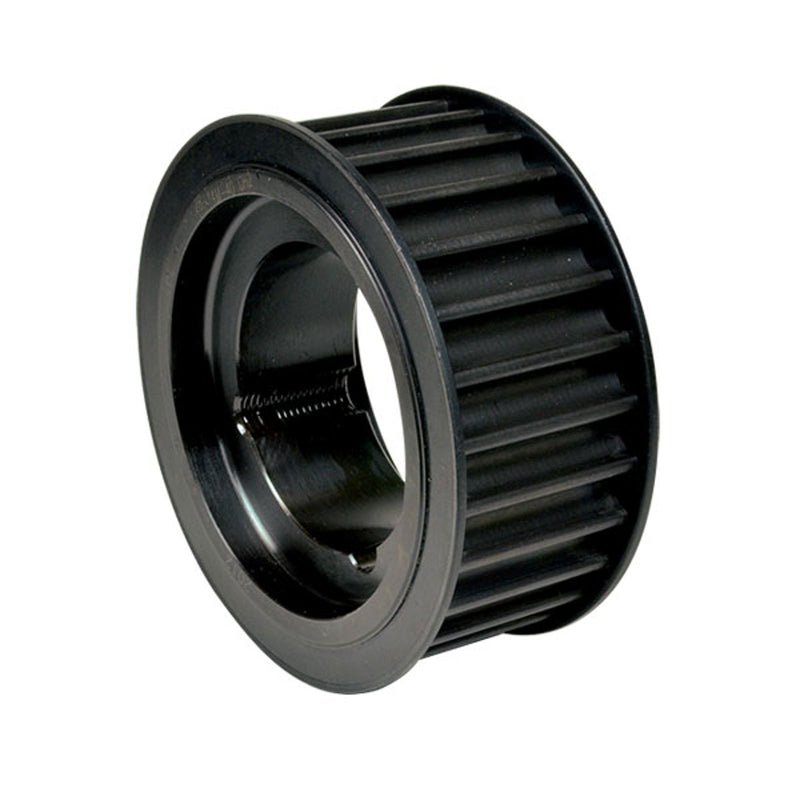

Chiaravalli Poly Chain® GT Timing Pulley 14M-37 (14 mm pitch, 37 mm belt) — product photo
Chiaravalli

Poly Chain® GT Timing Pulley 14M-37 (14 mm pitch, 37 mm belt)

Timing Pulleys

Poly Chain® GT timing pulley 14M-37 (14 mm pitch, for 37 mm belt width), teeth Z 28–192. Types without the TL prefix are pilot-bore executions; TL types mount on a Taper-Lock® bush (the Taper bush column gives the bush size, Bore max the largest bore it accepts). Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code TypeExec.Taper bushBore maxDpDeDf flangeDm hubFSPMaterial Weight CAD
48837028 TL 14M-28S-37 5F 2012 50 mm 124.78 mm 121.98 mm 128 mm — 51 mm 32 mm 19 mm Steel C 45 2.2 kg
48837030 TL 14M-30S-37 7F 2517 60 mm 133.69 mm 130.89 mm 138 mm — 51 mm 45 mm 3 mm Steel C 45 2.5 kg
48837032 TL 14M-32S-37 7F 2517 60 mm 142.6 mm 139.8 mm 154 mm — 51 mm 45 mm 3 mm Steel C 45 3.0 kg
48837034 TL 14M-34S-37 7F 2517 60 mm 151.52 mm 148.72 mm 160 mm — 51 mm 45 mm 3 mm Steel C 45 3.8 kg
48837036 TL 14M-36S-37 5F 2517 60 mm 160.43 mm 157.63 mm 168 mm — 51 mm 45 mm 6 mm Steel C 45 4.3 kg
48837038 TL 14M-38S-37 5F 2517 60 mm 169.34 mm 166.54 mm 183 mm — 51 mm 45 mm 6 mm Steel C 45 5.1 kg
48837040 TL 14M-40S-37 5F 2517 60 mm 178.25 mm 175.45 mm 188 mm — 51 mm 45 mm 6 mm Steel C 45 6.0 kg
48837044 TL 14M-44S-37 4F 3020 75 mm 196.08 mm 193.28 mm 211 mm — 51 mm 51 mm — Steel C 45 7.0 kg
48837048 TL 14M-48S-37 4F 3020 75 mm 213.9 mm 211.11 mm 226 mm — 51 mm 51 mm — Steel C 45 9.0 kg
48837050 TL 14M-50S-37 4F 3020 75 mm 222.82 mm 220.02 mm 240 mm — 51 mm 51 mm — Steel C 45 10.0 kg
48837056 TL 14M-56S-37 9F 3020 75 mm 249.55 mm 246.76 mm 256 mm 144 mm 51 mm 51 mm — Cast iron 9.2 kg
48837060 TL 14M-60S-37 8 3020 75 mm 267.38 mm 264.58 mm — 159 mm 51 mm 51 mm — Cast iron 10.2 kg
48837064 TL 14M-64S-37 8 3020 75 mm 285.21 mm 282.41 mm — 159 mm 51 mm 51 mm — Cast iron 12.2 kg
48837072 TL 14M-72S-37 8 3020 75 mm 320.86 mm 318.06 mm — 159 mm 51 mm 51 mm — Cast iron 13.4 kg
48837080 TL 14M-80S-37 8 3020 75 mm 356.51 mm 353.71 mm — 159 mm 51 mm 51 mm — Cast iron 16.1 kg
48837090 TL 14M-90S-37 10 3020 75 mm 401.07 mm 398.27 mm — 159 mm 51 mm 51 mm — Cast iron 17.2 kg
48837112 TL 14M-112S-37 10 3020 75 mm 499.11 mm 496.31 mm — 159 mm 51 mm 51 mm — Cast iron 23.0 kg
48837140 TL 14M-140S-37 13 3525 100 mm 623.89 mm 621.09 mm — 206 mm 51 mm 65 mm 7 mm Cast iron 41.0 kg
48837168 TL 14M-168S-37 13 3525 100 mm 748.66 mm 745.87 mm — 206 mm 51 mm 65 mm 7 mm Cast iron 51.5 kg
48837192 TL 14M-192S-37 13 4030 115 mm 855.61 mm 852.82 mm — 215 mm 51 mm 76 mm 12.5 mm Cast iron 60.0 kg

Product Information

Pitch
14.0 mm
