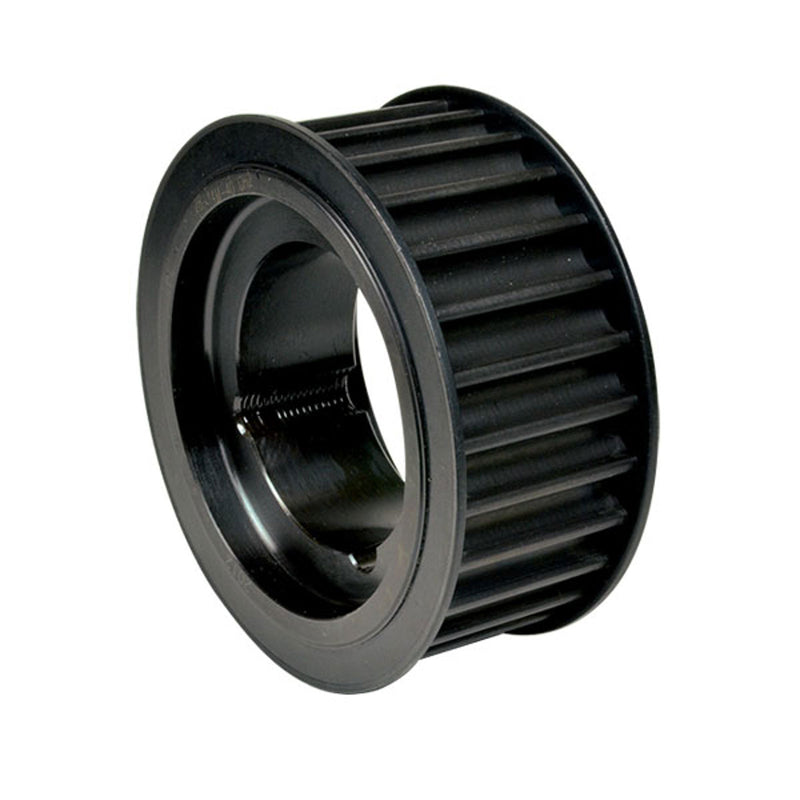

Poly Chain® GT Timing Pulley 14M-68 (14 mm pitch, 68 mm belt)

Timing Pulleys

Poly Chain® GT timing pulley 14M-68 (14 mm pitch, for 68 mm belt width), teeth Z 34–192. Types without the TL prefix are pilot-bore executions; TL types mount on a Taper-Lock® bush (the Taper bush column gives the bush size, Bore max the largest bore it accepts). Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code TypeExec.Taper bushBore maxDpDeDf flangeDm hubFSPMaterial Weight CAD
48868034 14M-34S-68 1F — 100 mm 151.52 mm 148.72 mm 160 mm 132 mm 84 mm 104 mm 20 mm Steel C 45 10.5 kg
48868036 14M-36S-68 1F — 100 mm 160.43 mm 157.63 mm 168 mm 131 mm 84 mm 104 mm 20 mm Steel C 45 11.7 kg
48868038 14M-38S-68 1F — 115 mm 169.34 mm 166.54 mm 183 mm 141 mm 84 mm 104 mm 20 mm Steel C 45 13.4 kg
48868040 14M-40S-68 1F — 125 mm 178.25 mm 175.45 mm 188 mm 156 mm 84 mm 104 mm 20 mm Steel C 45 15.4 kg
48868044 TL 14M-44S-68 7F 3020 75 mm 196.08 mm 193.28 mm 211 mm — 84 mm 51 mm 16.5 mm Steel C 45 9.2 kg
48868048 TL 14M-48S-68 5F 3020 75 mm 213.9 mm 211.11 mm 226 mm — 84 mm 51 mm 33 mm Steel C 45 11.3 kg
48868050 TL 14M-50S-68 7F 3525 100 mm 222.82 mm 220.02 mm 240 mm — 84 mm 65 mm 9.5 mm Steel C 45 15.5 kg
48868056 TL 14M-56S-68 7F 3525 100 mm 249.55 mm 246.76 mm 256 mm — 84 mm 65 mm 9.5 mm Cast iron 16.8 kg
48868060 TL 14M-60S-68 6 3525 100 mm 267.38 mm 264.58 mm — — 84 mm 65 mm 9.5 mm Cast iron 20.4 kg
48868064 TL 14M-64S-68 6 3525 100 mm 285.21 mm 282.41 mm — — 84 mm 65 mm 9.5 mm Cast iron 23.6 kg
48868072 TL 14M-72S-68 8 3525 100 mm 320.86 mm 318.06 mm — 178 mm 84 mm 65 mm 9.5 mm Cast iron 20.3 kg
48868080 TL 14M-80S-68 10 3525 100 mm 356.51 mm 353.71 mm — 178 mm 84 mm 65 mm 9.5 mm Cast iron 21.3 kg
48868090 TL 14M-90S-68 10 3525 100 mm 401.07 mm 398.27 mm — 178 mm 84 mm 65 mm 9.5 mm Cast iron 24.4 kg
48868112 TL 14M-112S-68 10 3525 100 mm 499.11 mm 496.31 mm — 178 mm 84 mm 65 mm 9.5 mm Cast iron 32.7 kg
48868140 TL 14M-140S-68 10 3525 100 mm 623.89 mm 621.09 mm — 206 mm 84 mm 65 mm 9.5 mm Cast iron 55.0 kg
48868168 TL 14M-168S-68 10 3525 100 mm 748.66 mm 745.87 mm — 206 mm 84 mm 65 mm 9.5 mm Cast iron 71.0 kg
48868192 TL 14M-192S-68 10 4030 115 mm 855.61 mm 852.82 mm — 215 mm 84 mm 76 mm 4 mm Cast iron 80.5 kg
