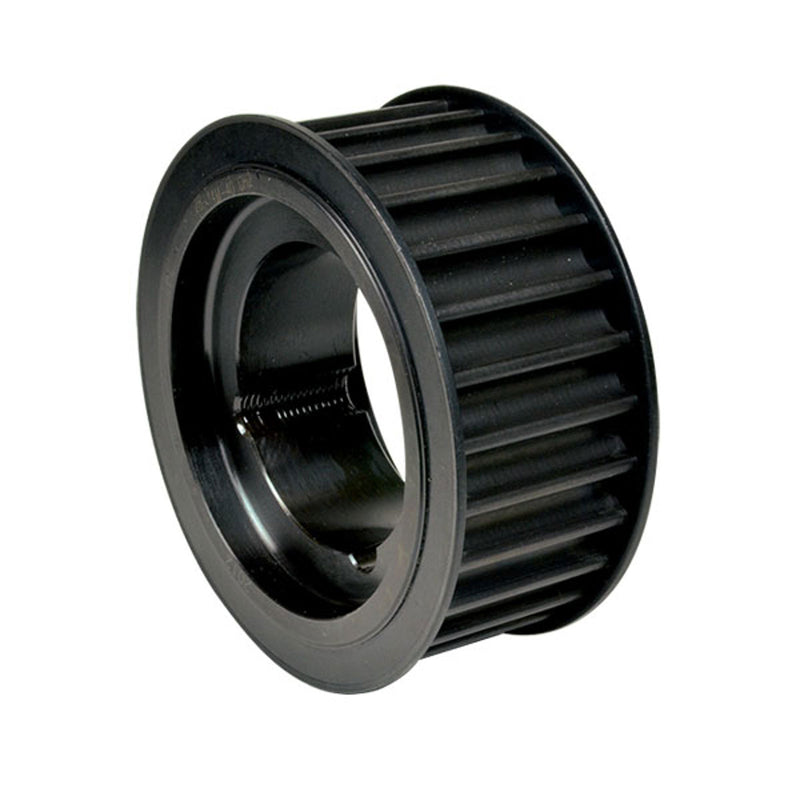

Poly Chain® GT Timing Pulley 14M-90 (14 mm pitch, 90 mm belt)

Timing Pulleys

Poly Chain® GT timing pulley 14M-90 (14 mm pitch, for 90 mm belt width), teeth Z 36–192. Types without the TL prefix are pilot-bore executions; TL types mount on a Taper-Lock® bush (the Taper bush column gives the bush size, Bore max the largest bore it accepts). Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code TypeExec.Taper bushBore maxDpDeDf flangeDm hubFSPMaterial Weight CAD
48890036 14M-36S-90 1F — 110 mm 160.43 mm 157.63 mm 168 mm 131 mm 106 mm 136 mm 30 mm Steel C 45 14.5 kg
48890038 14M-38S-90 1F — 115 mm 169.34 mm 166.54 mm 183 mm 141 mm 106 mm 136 mm 30 mm Steel C 45 17.5 kg
48890040 14M-40S-90 1F — 125 mm 178.25 mm 175.45 mm 188 mm 156 mm 106 mm 136 mm 30 mm Steel C 45 19.1 kg
48890044 14M-44S-90 1F — 140 mm 196.08 mm 193.28 mm 211 mm 169 mm 106 mm 136 mm 30 mm Steel C 45 23.9 kg
48890048 TL 14M-48S-90 7F 3525 100 mm 213.9 mm 211.11 mm 226 mm — 106 mm 66 mm 20 mm Steel C 45 12.7 kg
48890050 TL 14M-50S-90 7F 3525 100 mm 222.82 mm 220.02 mm 240 mm — 106 mm 66 mm 20 mm Steel C 45 14.5 kg
48890056 TL 14M-56S-90 7F 3525 100 mm 249.55 mm 246.76 mm 256 mm — 106 mm 66 mm 20 mm Cast iron 19.0 kg
48890060 TL 14M-60S-90 6 3525 100 mm 267.38 mm 264.58 mm — — 106 mm 66 mm 20 mm Cast iron 22.5 kg
48890064 TL 14M-64S-90 6 3525 100 mm 285.21 mm 282.41 mm — — 106 mm 66 mm 20 mm Cast iron 24.0 kg
48890072 TL 14M-72S-90 8 3525 100 mm 320.86 mm 318.06 mm — 178 mm 106 mm 66 mm 20 mm Cast iron 22.6 kg
48890080 TL 14M-80S-90 8 4030 115 mm 356.51 mm 353.71 mm — 215 mm 106 mm 76 mm 15 mm Cast iron 27.0 kg
48890090 TL 14M-90S-90 8 4030 115 mm 401.07 mm 398.27 mm — 215 mm 106 mm 76 mm 15 mm Cast iron 34.1 kg
48890112 TL 14M-112S-90 10 4535 125 mm 499.11 mm 496.31 mm — 215 mm 106 mm 90 mm 8 mm Cast iron 46.0 kg
48890140 TL 14M-140S-90 10 4535 125 mm 623.89 mm 621.09 mm — 215 mm 106 mm 90 mm 8 mm Cast iron 61.0 kg
48890168 TL 14M-168S-90 10 5040 130 mm 748.66 mm 745.87 mm — 267 mm 106 mm 102 mm 2 mm Cast iron 90.0 kg
48890192 TL 14M-192S-90 10 5040 130 mm 855.61 mm 852.82 mm — 267 mm 106 mm 102 mm 2 mm Cast iron 108.5 kg

Product Information

Pitch
14.0 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
