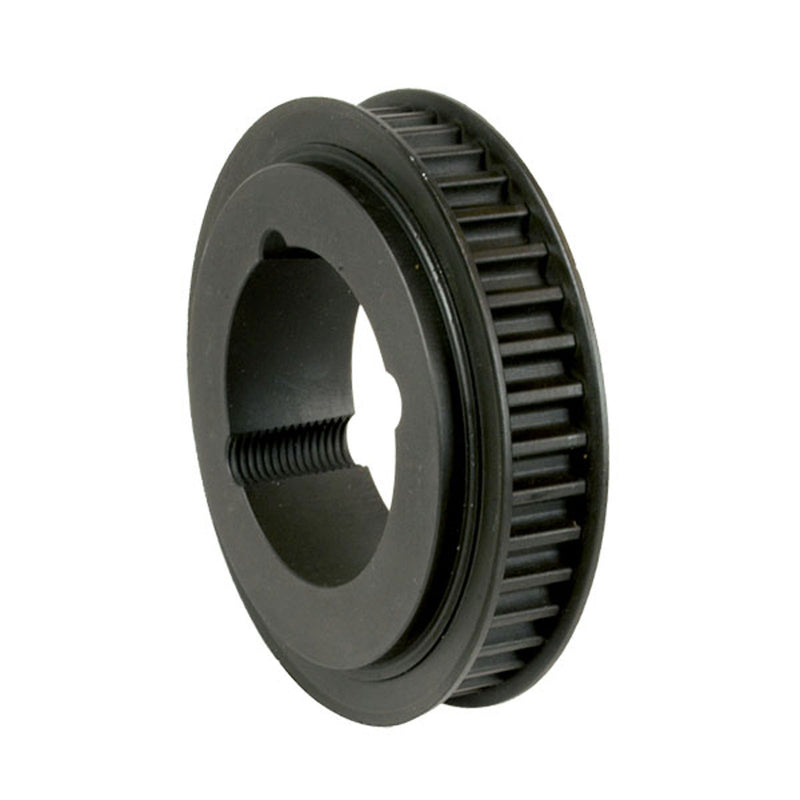

Chiaravalli Poly Chain® GT Timing Pulley 8M-36 (8 mm pitch, 36 mm belt) — product photo
Chiaravalli

Poly Chain® GT Timing Pulley 8M-36 (8 mm pitch, 36 mm belt)

Timing Pulleys

Poly Chain® GT timing pulley 8M-36 (8 mm pitch, for 36 mm belt width), teeth Z 25–192. Types without the TL prefix are pilot-bore executions; TL types mount on a Taper-Lock® bush (the Taper bush column gives the bush size, Bore max the largest bore it accepts). Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code TypeExec.Taper bushBore maxDpDeDf flangeDm hubFSPMaterial Weight CAD
48636025 8M-25S-36 1F — 32 mm 63.66 mm 62.06 mm 70 mm 49 mm 45 mm 55 mm 10 mm Steel C 45 1.4 kg
48636028 TL 8M-28S-36 4F 1210 32 mm 71.3 mm 69.7 mm 75 mm — 45 mm 25 mm — Steel C 45 0.64 kg
48636030 TL 8M-30S-36 4F 1610 42 mm 76.39 mm 74.79 mm 82.5 mm — 45 mm 25 mm — Steel C 45 0.59 kg
48636032 TL 8M-32S-36 4F 1610 42 mm 81.49 mm 79.89 mm 87 mm — 45 mm 25 mm — Steel C 45 0.79 kg
48636034 TL 8M-34S-36 4F 1610 42 mm 86.58 mm 84.98 mm 91 mm — 45 mm 25 mm — Steel C 45 0.63 kg
48636036 TL 8M-36S-36 4F 1610 42 mm 91.67 mm 90.07 mm 97 mm — 45 mm 25 mm — Steel C 45 1.15 kg
48636038 TL 8M-38S-36 4F 1610 42 mm 96.77 mm 95.17 mm 102 mm — 45 mm 25 mm — Steel C 45 1.39 kg
48636040 TL 8M-40S-36 4F 2012 50 mm 101.86 mm 100.26 mm 106 mm — 45 mm 32 mm — Steel C 45 1.34 kg
48636045 TL 8M-45S-36 4F 2012 50 mm 114.59 mm 112.99 mm 120 mm — 45 mm 32 mm — Steel C 45 1.87 kg
48636048 TL 8M-48S-36 4F 2012 50 mm 122.23 mm 120.63 mm 128 mm — 45 mm 32 mm — Steel C 45 2.2 kg
48636050 TL 8M-50S-36 4F 2012 50 mm 127.32 mm 125.72 mm 135 mm — 45 mm 32 mm — Steel C 45 2.7 kg
48636056 TL 8M-56S-36 4F 2517 60 mm 142.6 mm 141 mm 150 mm — 45 mm 45 mm — Steel C 45 3.0 kg
48636060 TL 8M-60S-36 4F 2517 60 mm 152.79 mm 151.19 mm 158 mm — 45 mm 45 mm — Steel C 45 3.8 kg
48636064 TL 8M-64S-36 4F 2517 60 mm 162.97 mm 161.37 mm 168 mm — 45 mm 45 mm — Steel C 45 4.5 kg
48636075 TL 8M-75S-36 3 3020 75 mm 190.99 mm 189.39 mm — 150 mm 45 mm 51 mm 6 mm Cast iron 6.2 kg
48636080 TL 8M-80S-36 3 3020 75 mm 203.72 mm 202.12 mm — 150 mm 45 mm 51 mm 6 mm Cast iron 7.4 kg
48636090 TL 8M-90S-36 11 3020 75 mm 229.18 mm 227.58 mm — 150 mm 45 mm 51 mm 3 mm Cast iron 7.2 kg
48636112 TL 8M-112S-36 11 3020 75 mm 285.21 mm 283.61 mm — 150 mm 45 mm 51 mm 3 mm Cast iron 10.4 kg
48636140 TL 8M-140S-36 13 3020 75 mm 356.51 mm 354.91 mm — 150 mm 45 mm 51 mm 3 mm Cast iron 12.7 kg
48636168 TL 8M-168S-36 13 3525 100 mm 427.81 mm 426.21 mm — 198 mm 45 mm 65 mm 10 mm Cast iron 21.5 kg
48636192 TL 8M-192S-36 13 3525 100 mm 488.92 mm 487.32 mm — 198 mm 45 mm 65 mm 10 mm Cast iron 27.0 kg

Product Information

Pitch
8.0 mm
