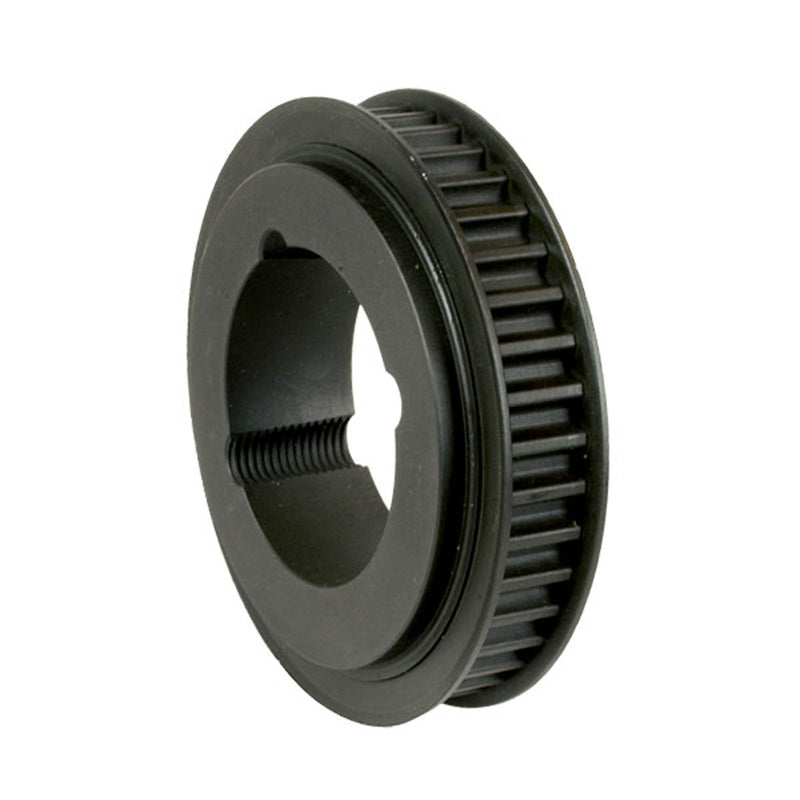

Chiaravalli Poly Chain® GT Timing Pulley 8M-62 (8 mm pitch, 62 mm belt) — product photo
Chiaravalli

Poly Chain® GT Timing Pulley 8M-62 (8 mm pitch, 62 mm belt)

Timing Pulleys

Poly Chain® GT timing pulley 8M-62 (8 mm pitch, for 62 mm belt width), teeth Z 30–192. Types without the TL prefix are pilot-bore executions; TL types mount on a Taper-Lock® bush (the Taper bush column gives the bush size, Bore max the largest bore it accepts). Material per size: Steel C 45 or Cast iron — see the Material column.

The Exec. column refers to the execution figures on the dimension drawings (F executions are flanged).

Product Configuration

Select a row to add it to your quote

Code TypeExec.Taper bushBore maxDpDeDf flangeDm hubFSPMaterial Weight CAD
48662030 8M-30S-62 1F — 42 mm 76.39 mm 74.79 mm 82.5 mm 63 mm 72 mm 84 mm 12 mm Steel C 45 2.4 kg
48662032 8M-32S-62 1F — 50 mm 81.49 mm 79.89 mm 87 mm 68 mm 72 mm 84 mm 12 mm Steel C 45 2.8 kg
48662034 8M-34S-62 1F — 55 mm 86.58 mm 84.98 mm 91 mm 69 mm 72 mm 84 mm 12 mm Steel C 45 3.0 kg
48662036 8M-36S-63 1F — 60 mm 91.67 mm 90.07 mm 97 mm 76 mm 72 mm 84 mm 12 mm Steel C 45 3.4 kg
48662038 8M-38S-62 1F — 60 mm 96.77 mm 95.17 mm 102 mm 78 mm 72 mm 84 mm 12 mm Steel C 45 3.8 kg
48662040 TL 8M-40S-62 4F 2012 50 mm 101.86 mm 100.26 mm 106 mm — 72 mm 32 mm — Steel C 45 2.06 kg
48662045 TL 8M-45S-62 4F 2012 50 mm 114.59 mm 112.99 mm 120 mm — 72 mm 32 mm — Steel C 45 3.0 kg
48662048 TL 8M-48S-62 4F 2517 60 mm 122.23 mm 120.63 mm 128 mm — 72 mm 45 mm — Steel C 45 2.9 kg
48662050 TL 8M-50S-62 4F 2517 60 mm 127.32 mm 125.72 mm 135 mm — 72 mm 45 mm — Steel C 45 3.25 kg
48662056 TL 8M-56S-62 7F 2517 60 mm 142.6 mm 141 mm 150 mm — 72 mm 45 mm 13.5 mm Steel C 45 3.9 kg
48662060 TL 8M-60S-62 7F 2517 60 mm 152.79 mm 151.19 mm 158 mm — 72 mm 45 mm 13.5 mm Steel C 45 4.7 kg
48662064 TL 8M-64S-62 7F 2517 60 mm 162.97 mm 161.37 mm 168 mm — 72 mm 45 mm 13.5 mm Steel C 45 5.6 kg
48662075 TL 8M-75S-62 6 3020 75 mm 190.99 mm 189.39 mm — — 72 mm 51 mm 10.5 mm Cast iron 7.5 kg
48662080 TL 8M-80S-62 6 3020 75 mm 203.72 mm 202.12 mm — — 72 mm 51 mm 10.5 mm Cast iron 9.2 kg
48662090 TL 8M-90S-62 6 3020 75 mm 229.18 mm 227.58 mm — — 72 mm 51 mm 10.5 mm Cast iron 7.7 kg
48662112 TL 8M-112S-62 8 3020 75 mm 285.21 mm 283.61 mm — 198 mm 72 mm 51 mm 10.5 mm Cast iron 12.1 kg
48662140 TL 8M-140S-62 10 3525 100 mm 356.51 mm 354.91 mm — 150 mm 72 mm 65 mm 3.5 mm Cast iron 22.7 kg
48662168 TL 8M-168S-62 10 3525 100 mm 427.81 mm 426.21 mm — 198 mm 72 mm 65 mm 3.5 mm Cast iron 26.8 kg
48662192 TL 8M-192S-62 10 3525 100 mm 488.92 mm 487.32 mm — 198 mm 72 mm 65 mm 3.5 mm Cast iron 34.2 kg

Product Information

Pitch
8.0 mm
