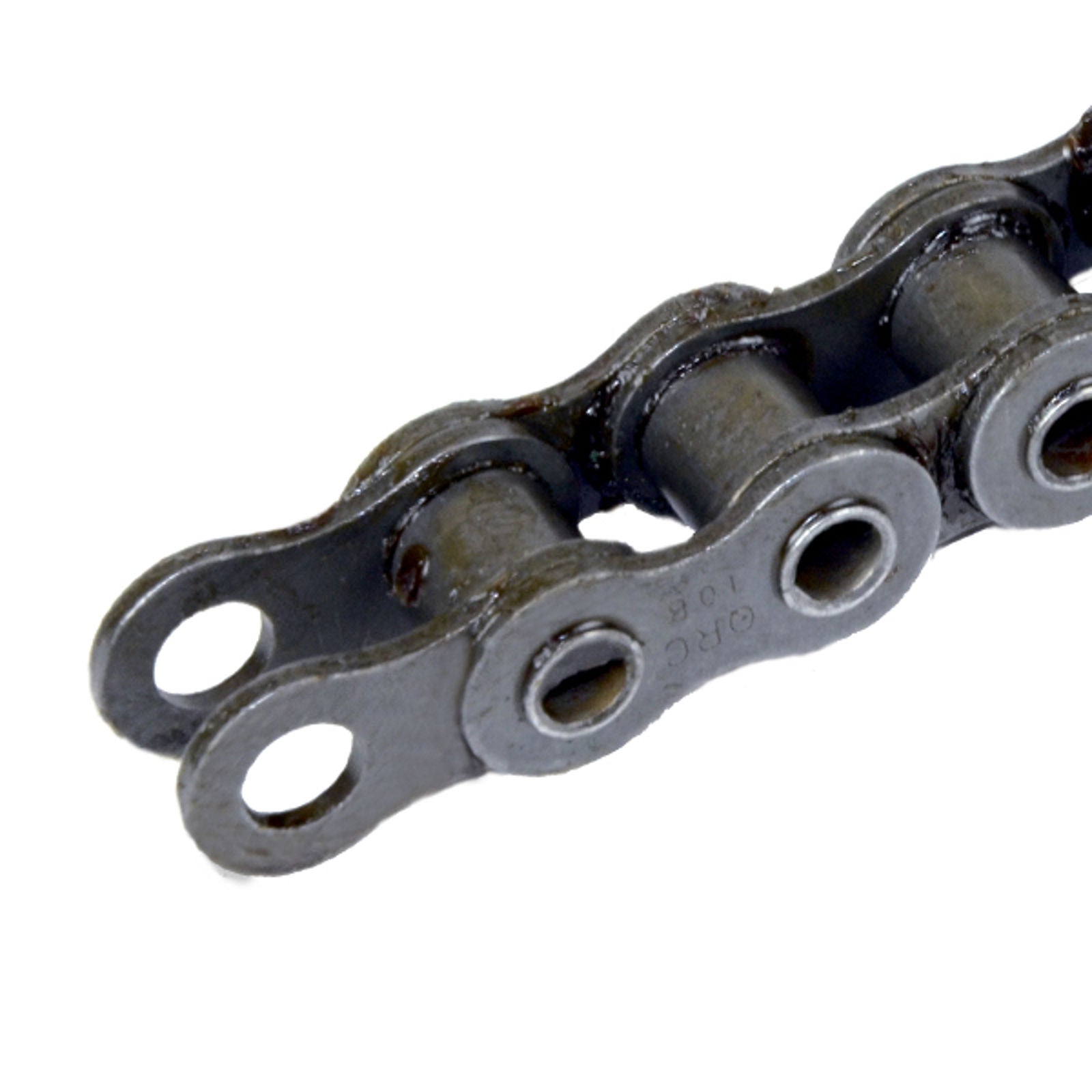

QRC Drilled Pin Chain 08BHP-1 — 5 m Pack
Roller chain 08BHP-1 with drilled (hollow) pins, Ø F bore, to ISO 606 - DIN 8187, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

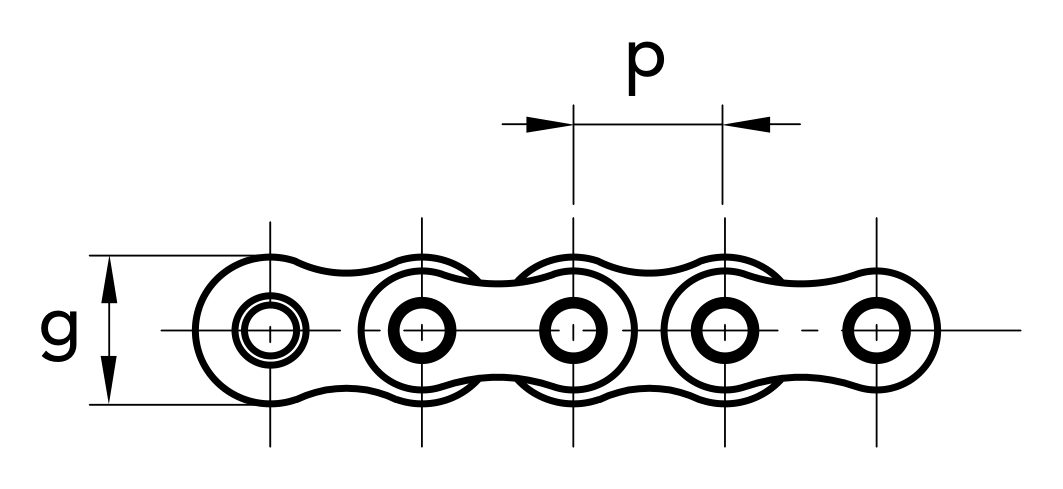

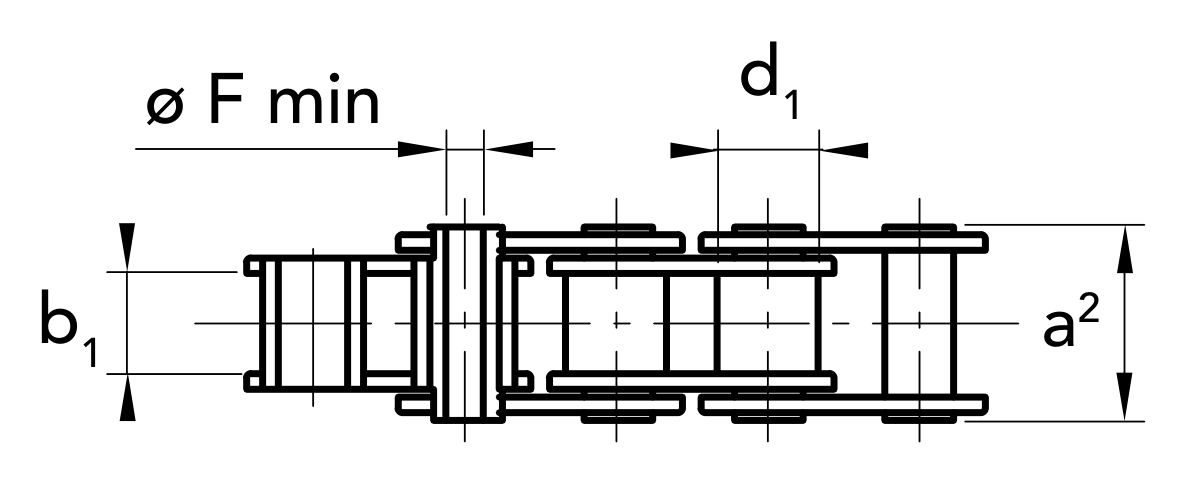

| Code | Item | p | p (inch) | b1 min | d1 max | a2 max | ø F min | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
74112707 |
Chain
|
12.7 mm
|
1/2"
|
7.75 mm
|
8.51 mm
|
17 mm
|
4.4 mm
|
11.7 mm
|
0.7 cm²
|
13.5 kN
|
0.5 kg/m
|
74112757 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
74112787 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
08BHP-1- Chain Type
- QRC® chain — pins drilled
- Packaging
- Pack of 5 m
