Chiaravalli

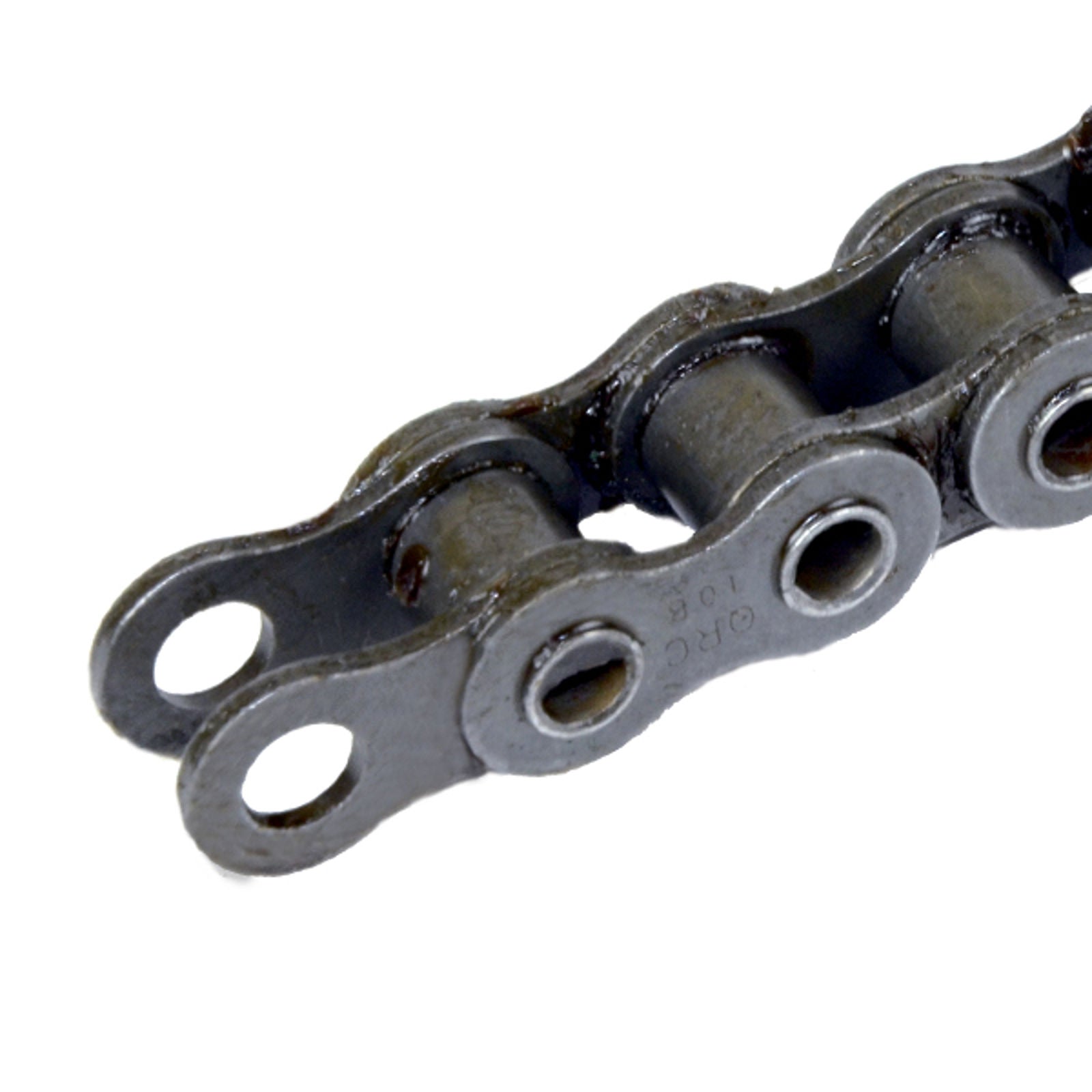

QRC Drilled Pin Chain 10BHP-1 — 5 m Pack
Roller chain 10BHP-1 with drilled (hollow) pins, Ø F bore, to ISO 606 - DIN 8187, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

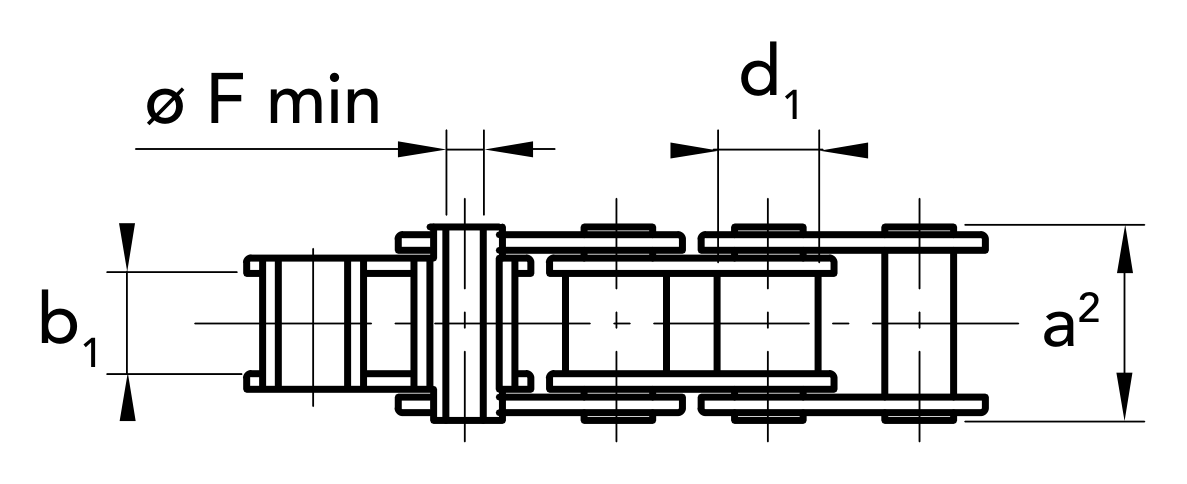

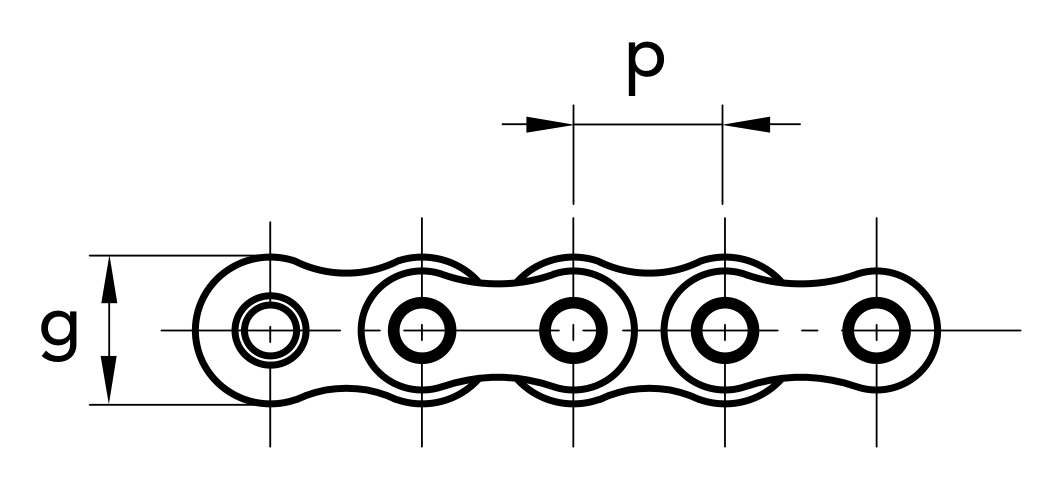

| Code | Item | p | p (inch) | b1 min | d1 max | a2 max | ø F min | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
74115707 |
Chain
|
15.875 mm
|
5/8"
|
9.65 mm
|
10.16 mm
|
21 mm
|
5.1 mm
|
14 mm
|
1 cm²
|
20 kN
|
0.8 kg/m
|
74115757 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
74115787 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
10BHP-1- Chain Type
- QRC® chain — pins drilled
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
