Chiaravalli

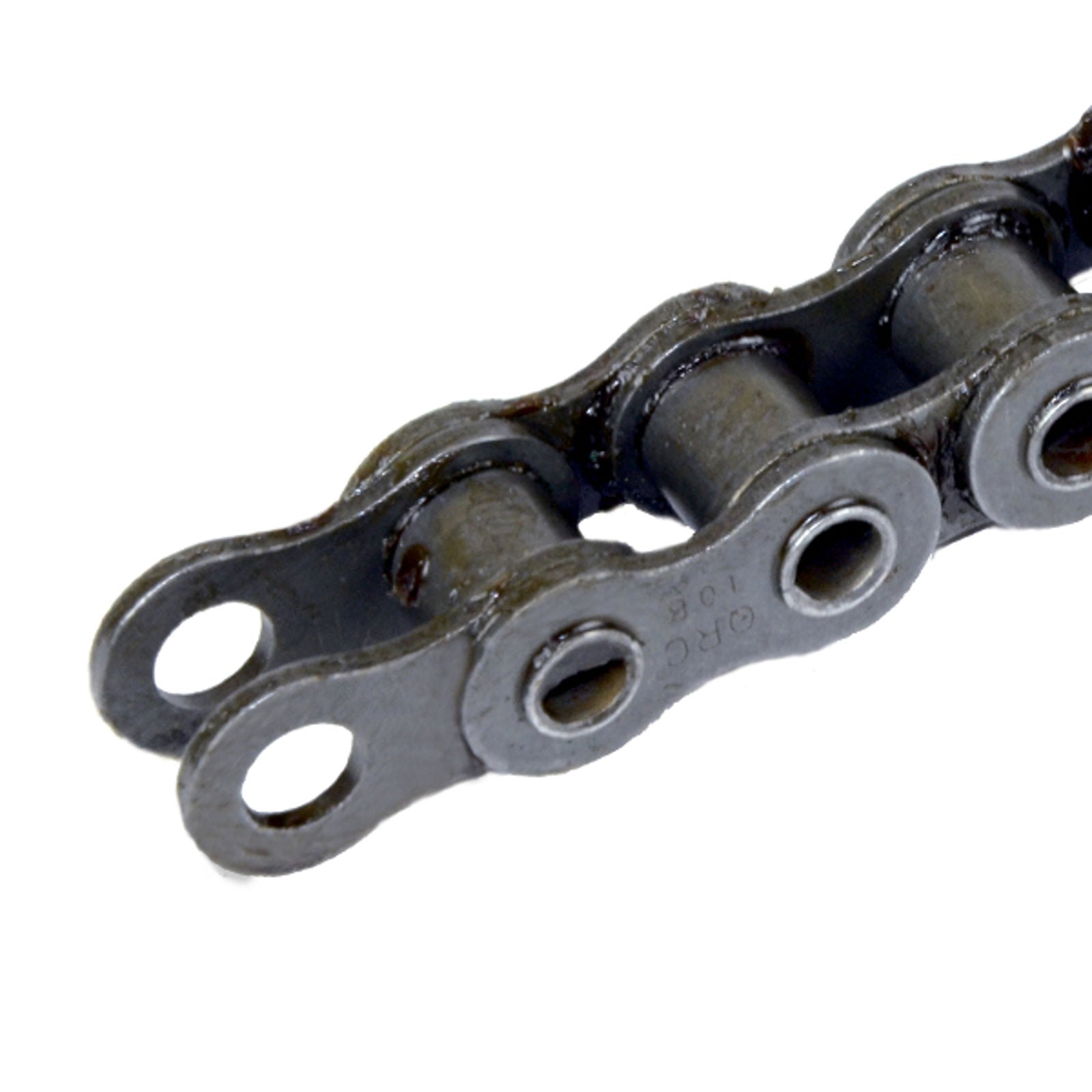

QRC Nickel-Plated Roller Chain 06B-1 Simplex — 5 m Pack
Simplex nickel-plated roller chain 06B-1 to ISO 606 - DIN 8187, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote
| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
73109007 |
Chain
|
9.53 mm
|
3/8"
|
5.72 mm
|
3.28 mm
|
6.35 mm
|
13.5 mm
|
8.26 mm
|
0.28 cm²
|
8.2 kN
|
0.41 kg/m
|
73109057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
73109087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
06B-1- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
- Material
- Nickel-plated
