Chiaravalli

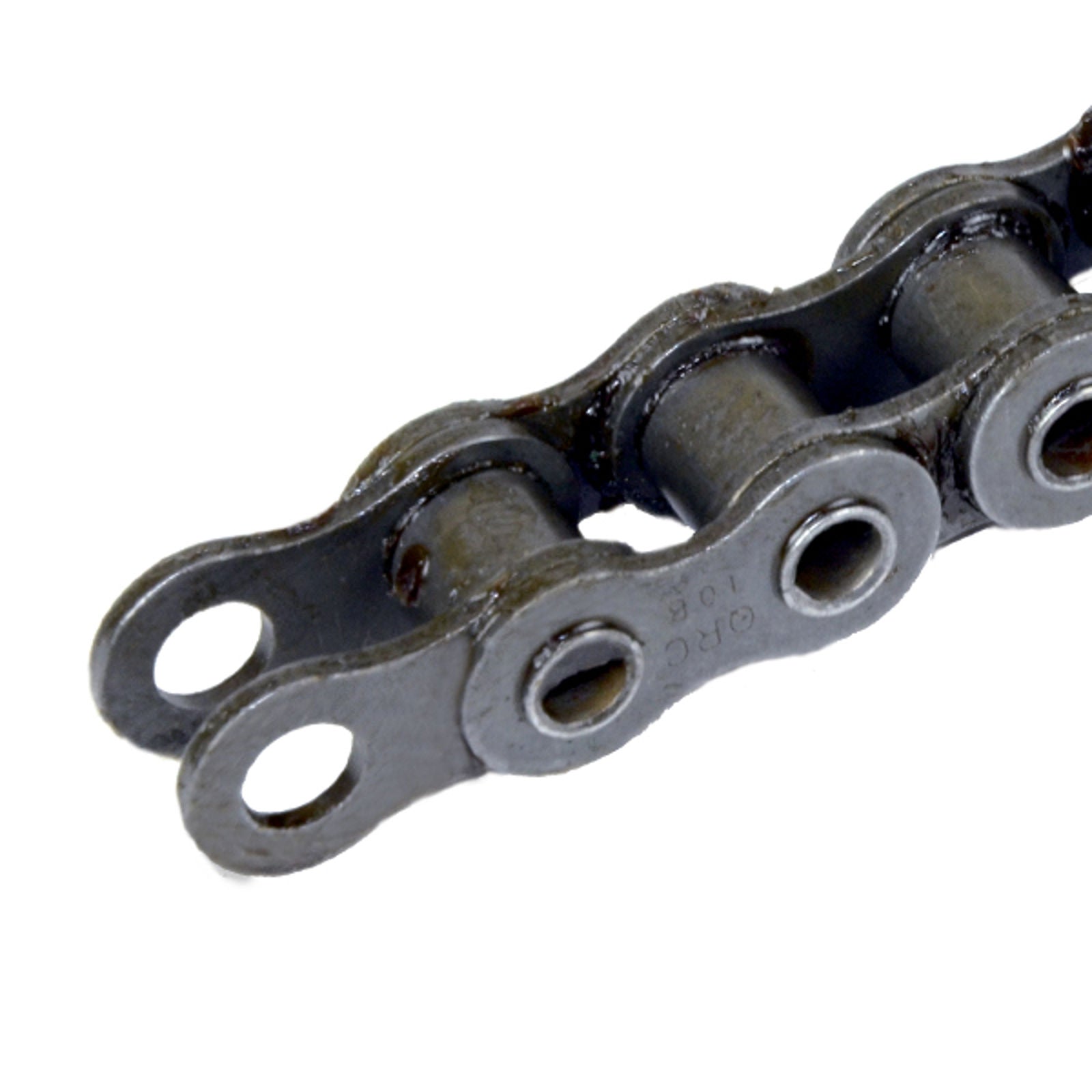

QRC Nickel-Plated Roller Chain 10B-1 Simplex — 5 m Pack
Simplex nickel-plated roller chain 10B-1 to ISO 606 - DIN 8187, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

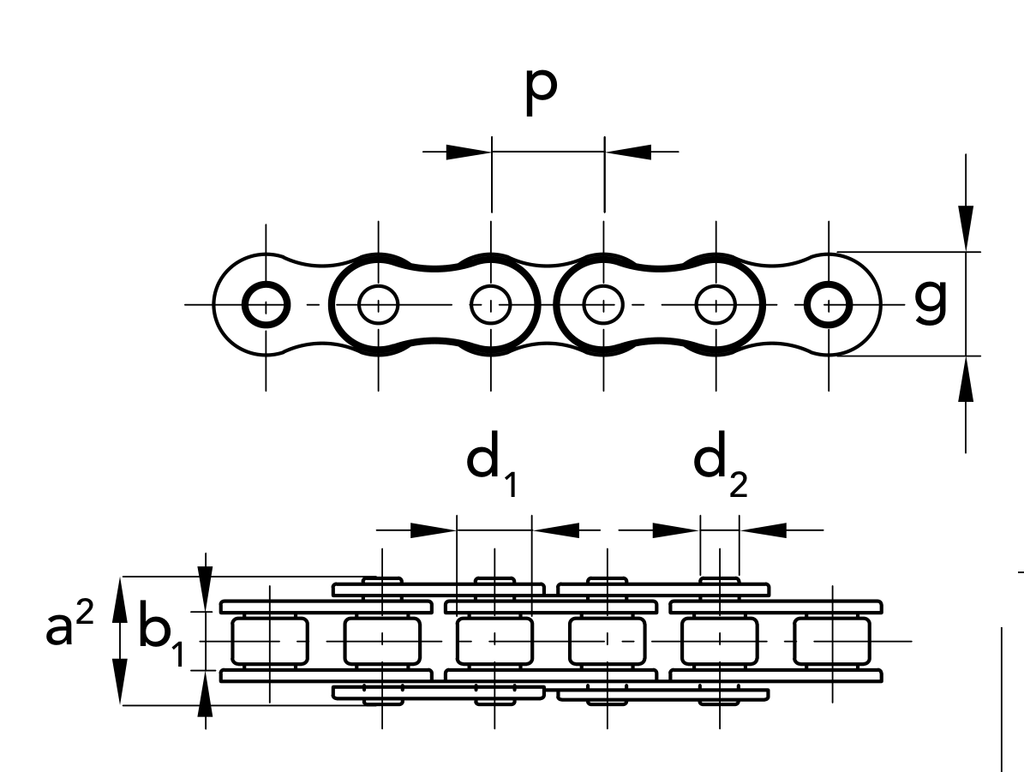

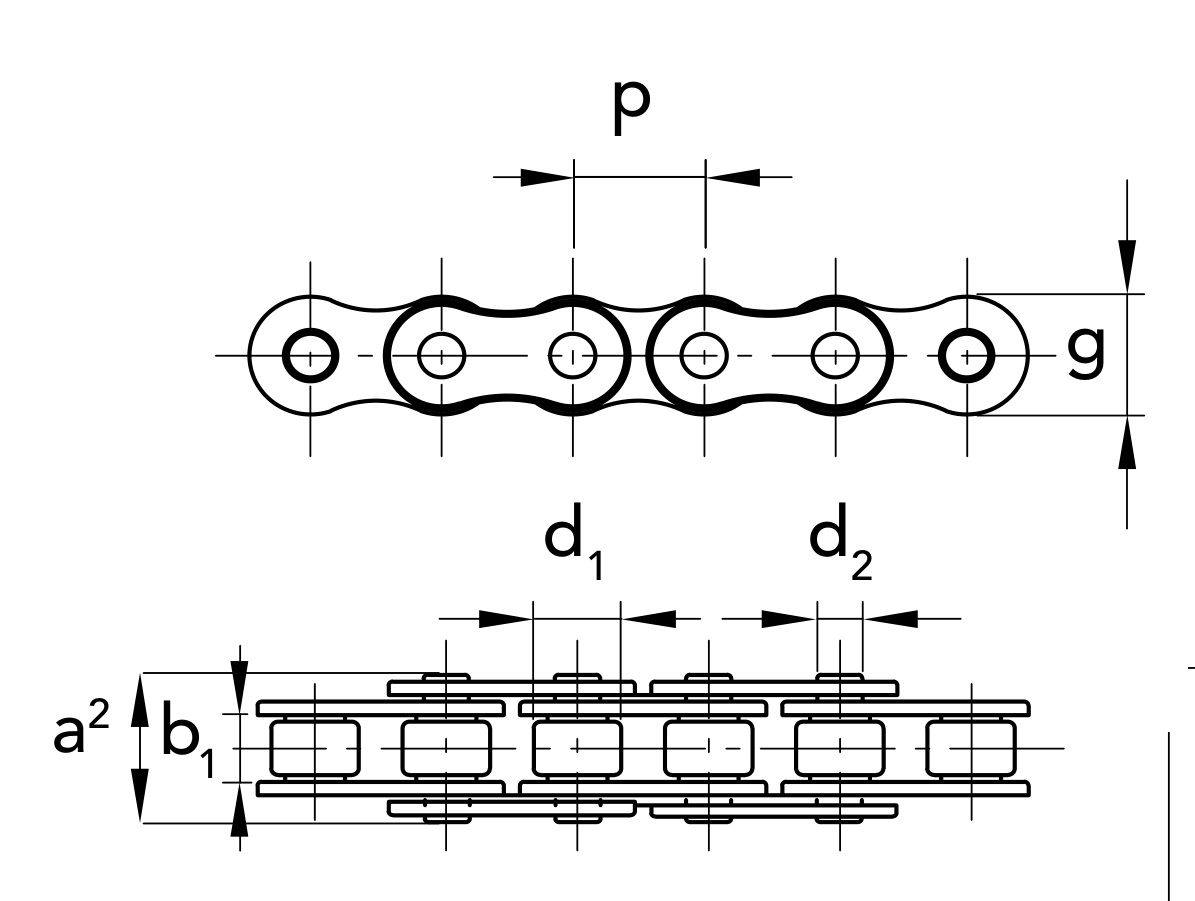

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
73115007 |
Chain
|
15.88 mm
|
5/8"
|
9.65 mm
|
5.08 mm
|
10.16 mm
|
19.6 mm
|
14.73 mm
|
0.67 cm²
|
20.5 kN
|
0.95 kg/m
|
73115057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
73115087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
10B-1- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
- Material
- Nickel-plated
