QRC Nickel-Plated Roller Chain 16B-1 Simplex — 5 m Pack
Simplex nickel-plated roller chain 16B-1 to ISO 606 - DIN 8187, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

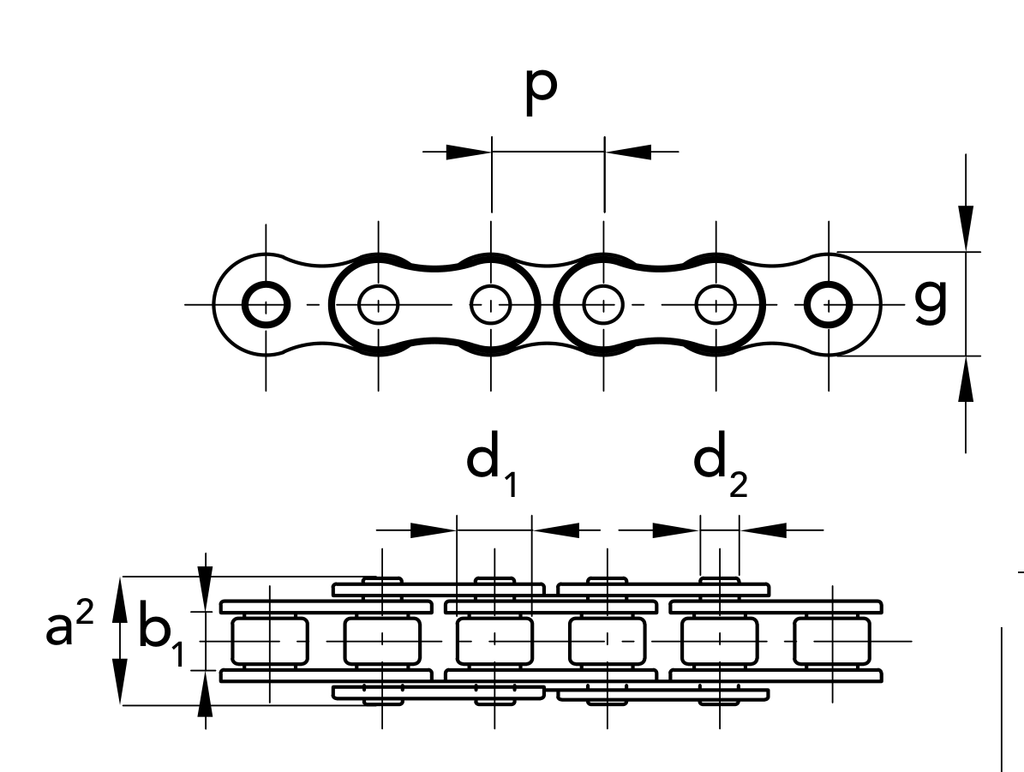

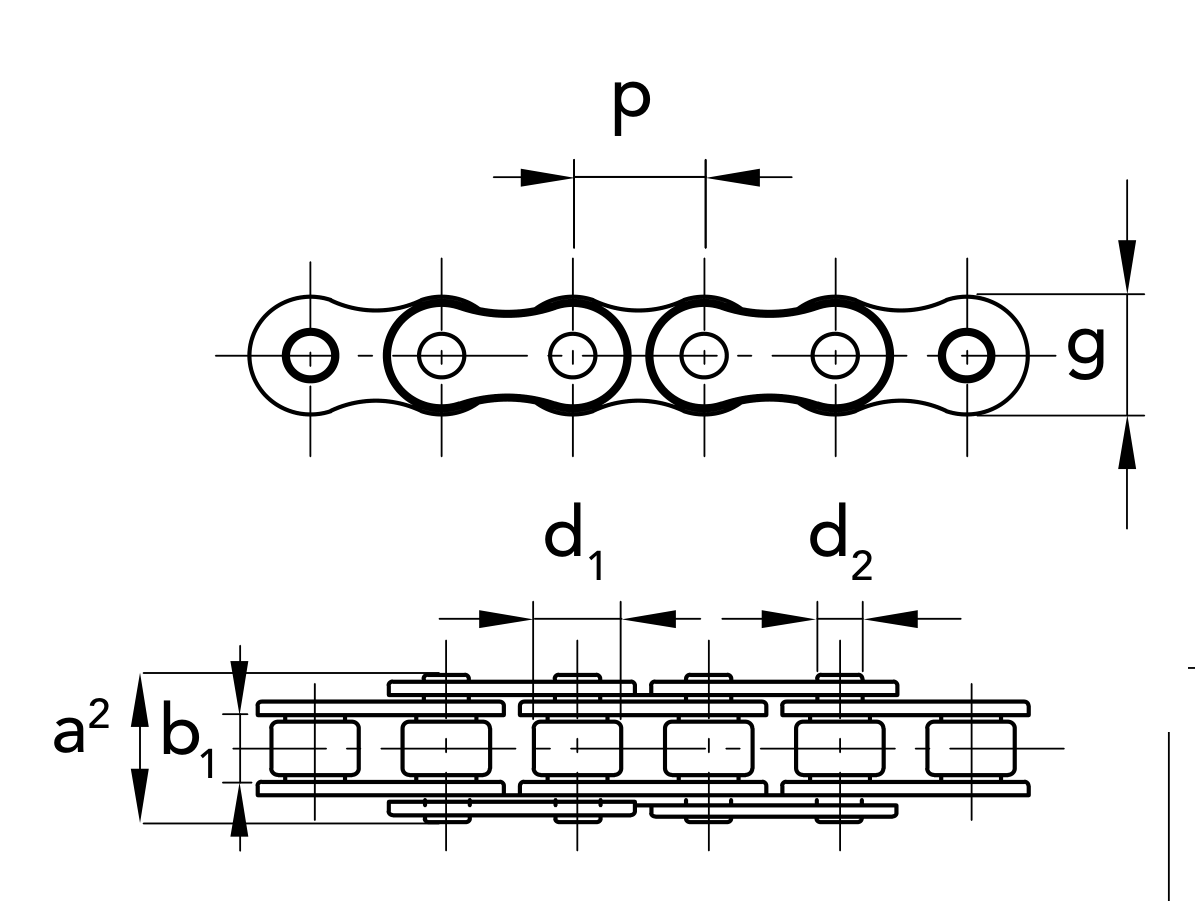

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
73125007 |
Chain
|
25.4 mm
|
1"
|
17.02 mm
|
8.28 mm
|
15.88 mm
|
36.1 mm
|
21.08 mm
|
2.1 cm²
|
52.5 kN
|
2.7 kg/m
|
73125057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
73125087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
73125157 |
Coupling (cotter pin) (cotter pin)
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
16B-1- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
- Material
- Nickel-plated
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
