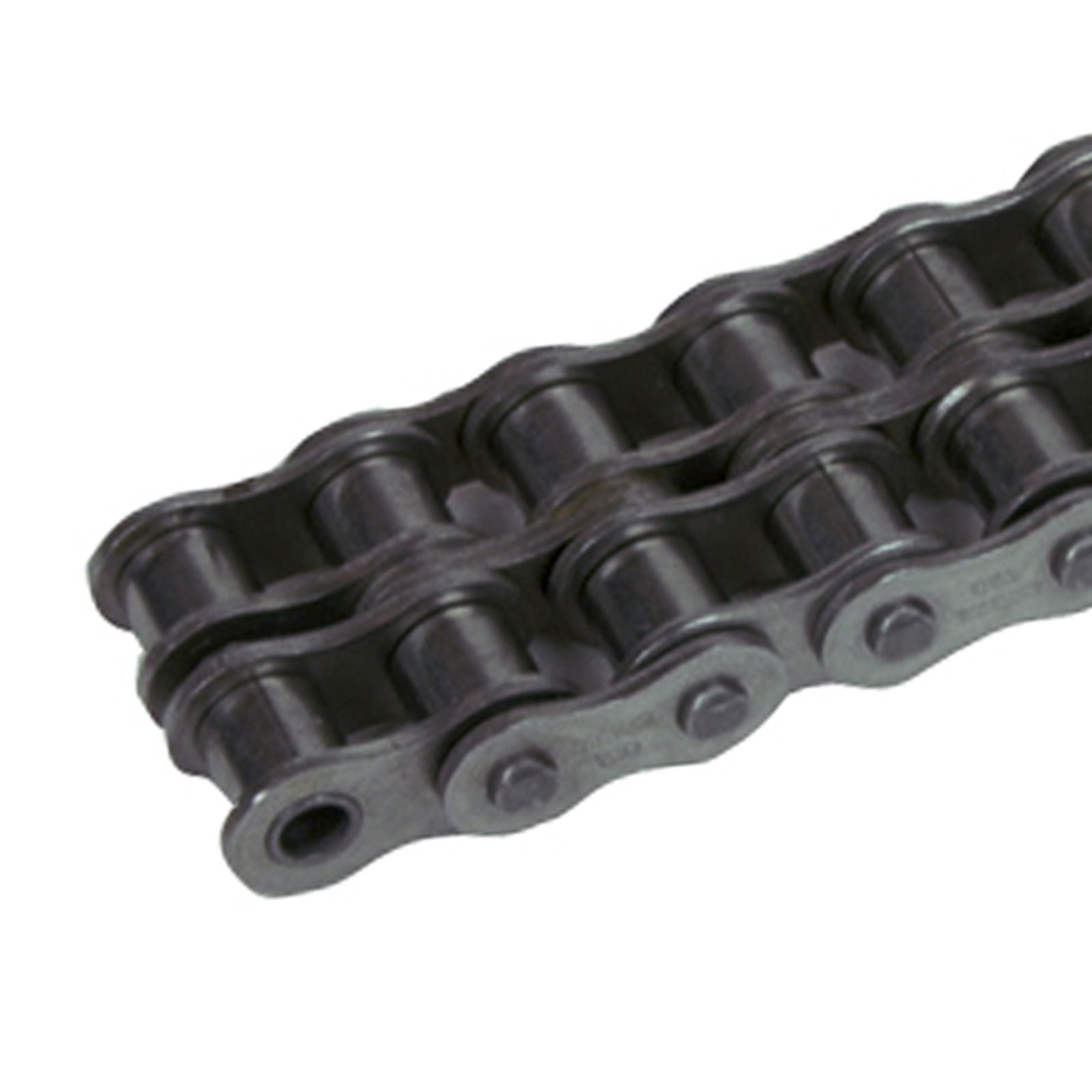

QRC Roller Chain 05B-2 Duplex — 5 m Pack
Duplex roller chain 05B-2 to ISO 606 - DIN 8187, supplied as a 5 m pack. Coupling and offset links are ordered as items on this page.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

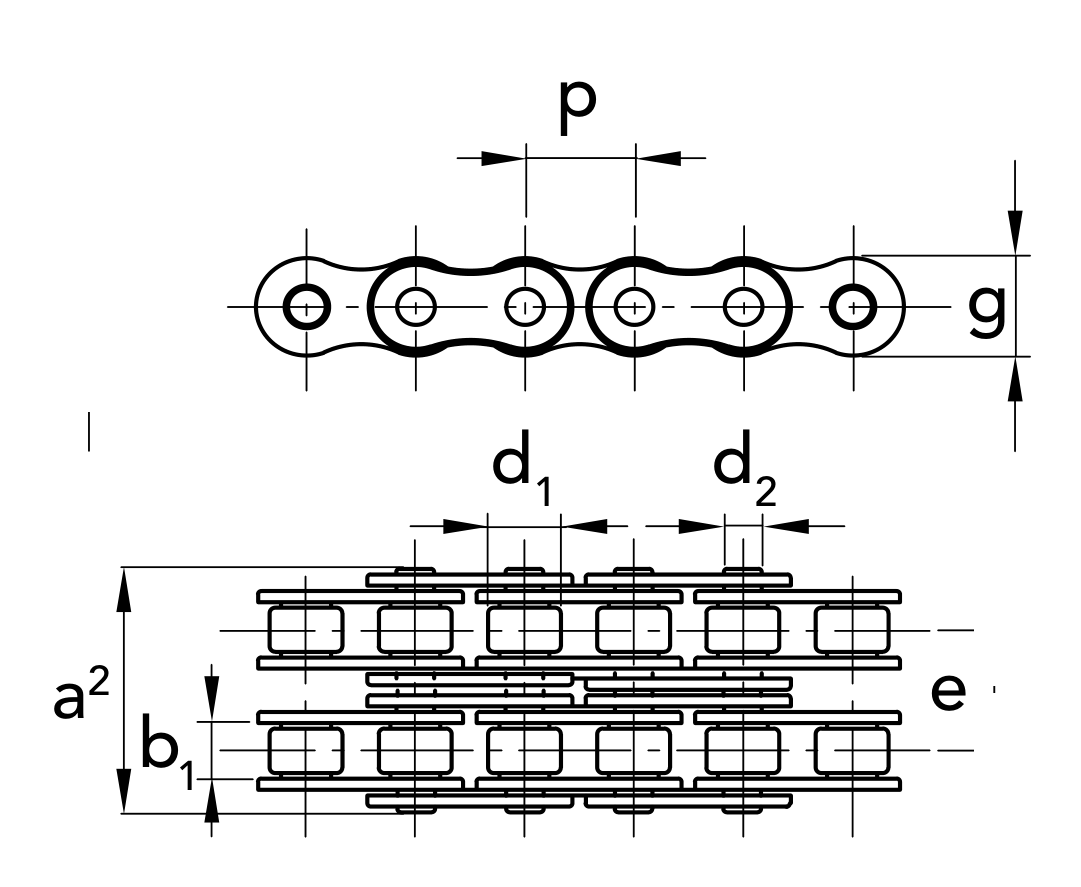

| Code | Item | p | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
70208007 |
Chain
|
8 mm
|
3 mm
|
2.31 mm
|
5 mm
|
14.3 mm
|
7.11 mm
|
5.64 mm
|
0.22 cm²
|
9.8 kN
|
0.36 kg/m
|
70208057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
70208087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
05B-2- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
