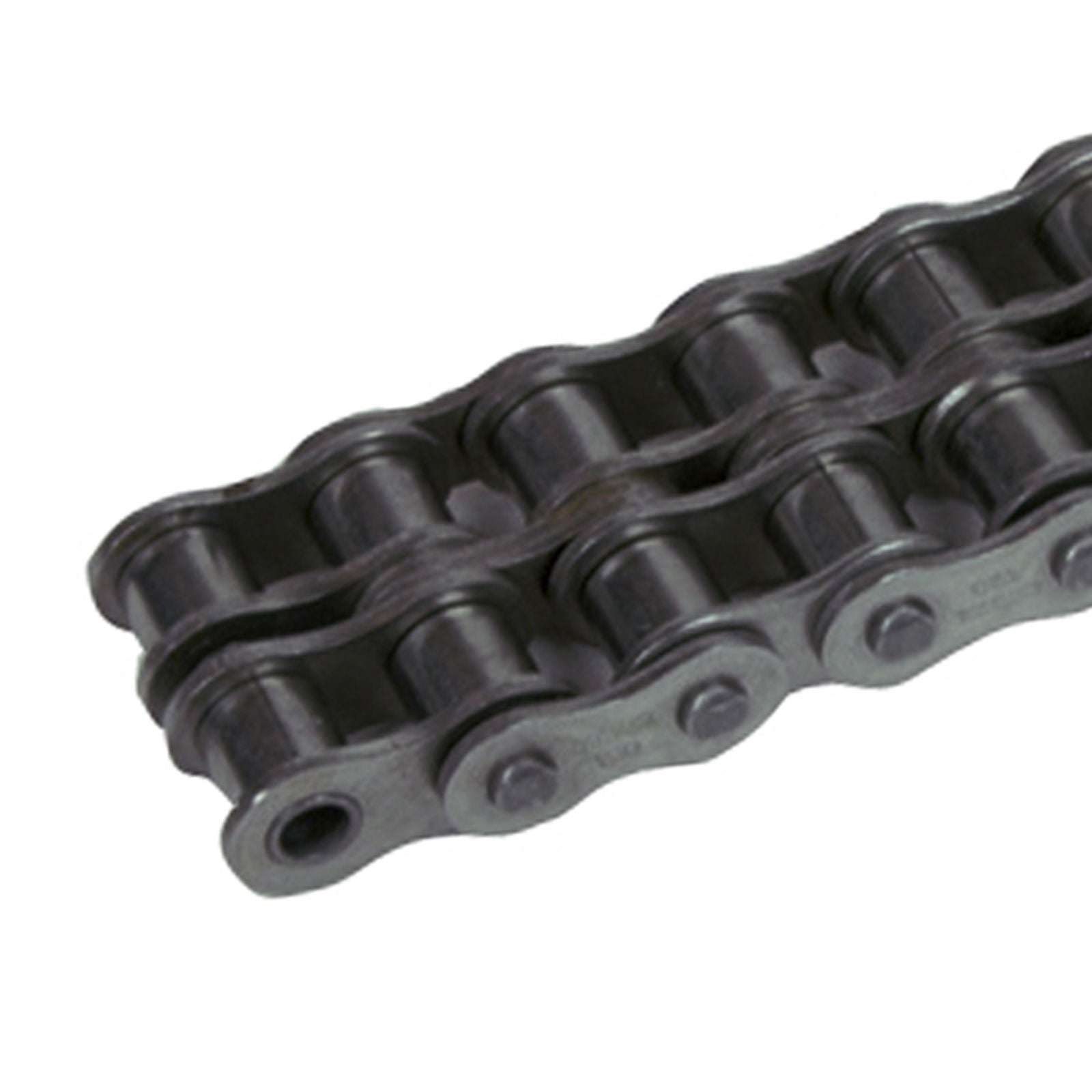

QRC Roller Chain 06B-2 Duplex — 25 m Roll
Duplex roller chain 06B-2 to ISO 606 - DIN 8187, supplied as a 25 m roll. Coupling and offset links are ordered as items on this page.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

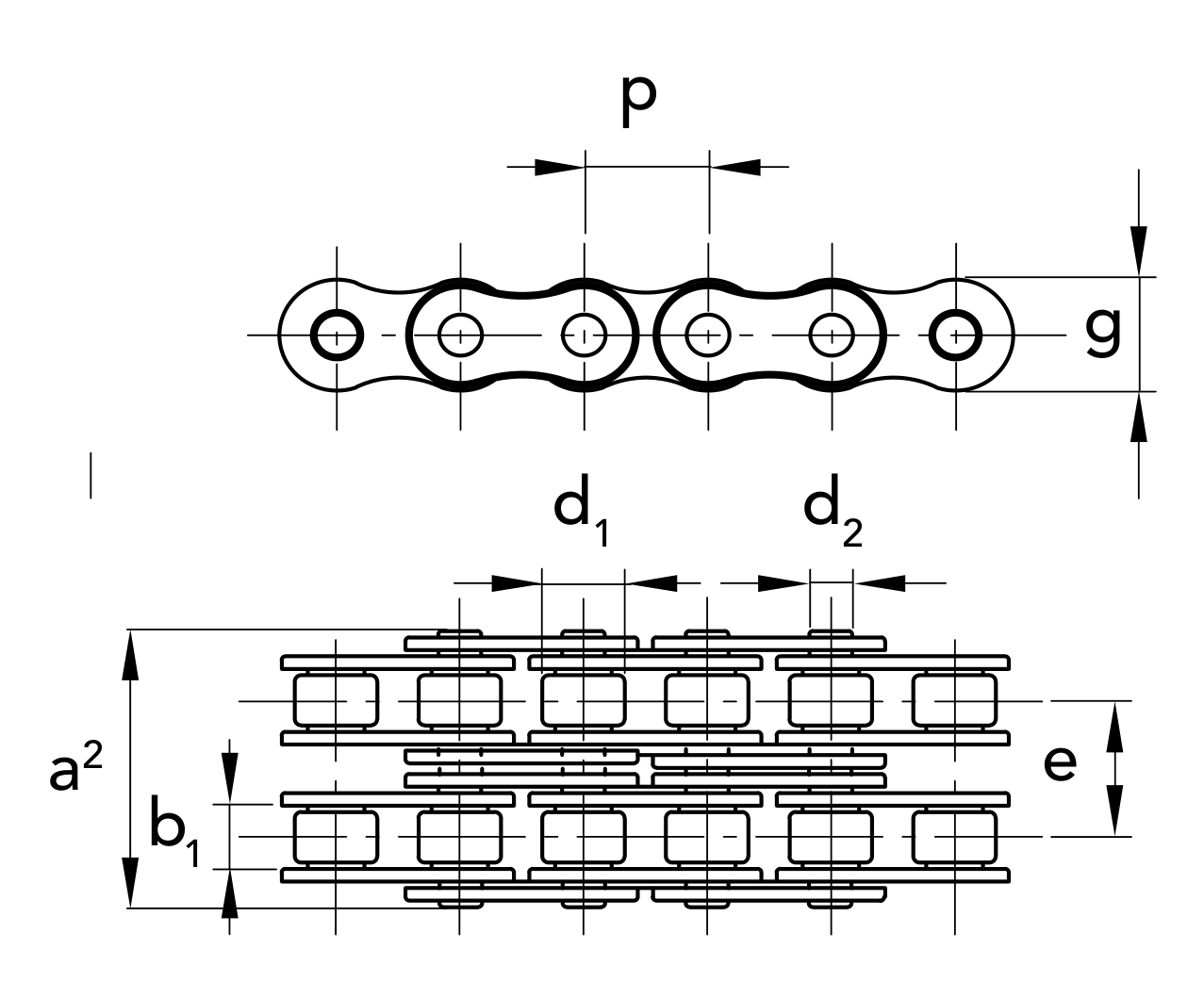

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
72209007 |
Chain
|
9.525 mm
|
3/8"
|
5.72 mm
|
3.28 mm
|
6.35 mm
|
23.8 mm
|
8.26 mm
|
10.24 mm
|
0.55 cm²
|
16.9 kN
|
0.76 kg/m
|
70209057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
70209087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
06B-2- Chain Type
- QRC® roller chain — European series
- Packaging
- 25 m roll
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
