QRC Roller Chain 06B-3 Triplex — 5 m Pack
Triplex roller chain 06B-3 to ISO 606 - DIN 8187, supplied as a 5 m pack. Coupling and offset links are ordered as items on this page.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

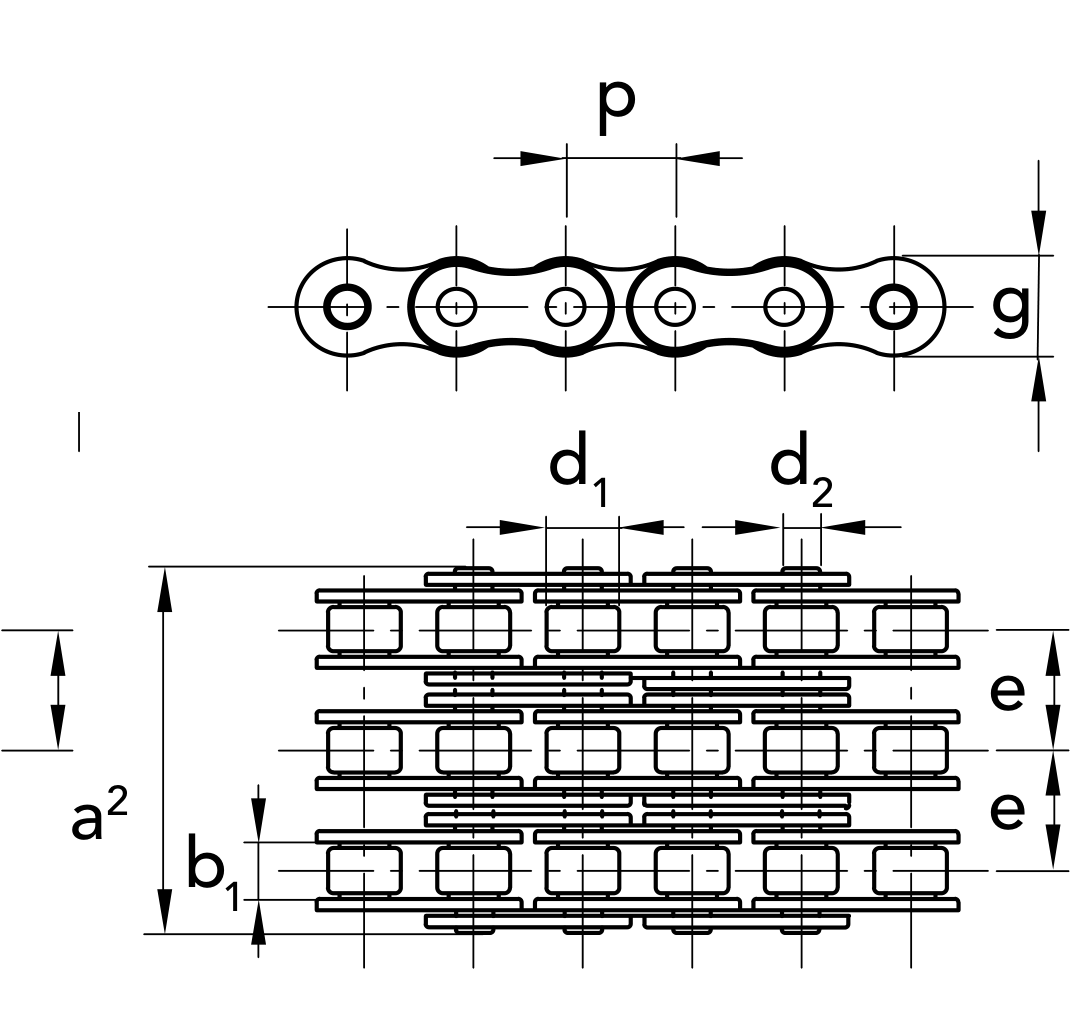

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
70309007 |
Chain
|
9.525 mm
|
3/8"
|
5.72 mm
|
3.28 mm
|
6.35 mm
|
34 mm
|
8.26 mm
|
10.24 mm
|
0.83 cm²
|
24.9 kN
|
1.12 kg/m
|
70309057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
70309087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
06B-3- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
