Chiaravalli
QRC Roller Chain 081-1 Simplex — 5 m Pack
Simplex roller chain 081-1 to ISO 606 - DIN 8187, supplied as a 5 m pack. Coupling and offset links are ordered as items on this page.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

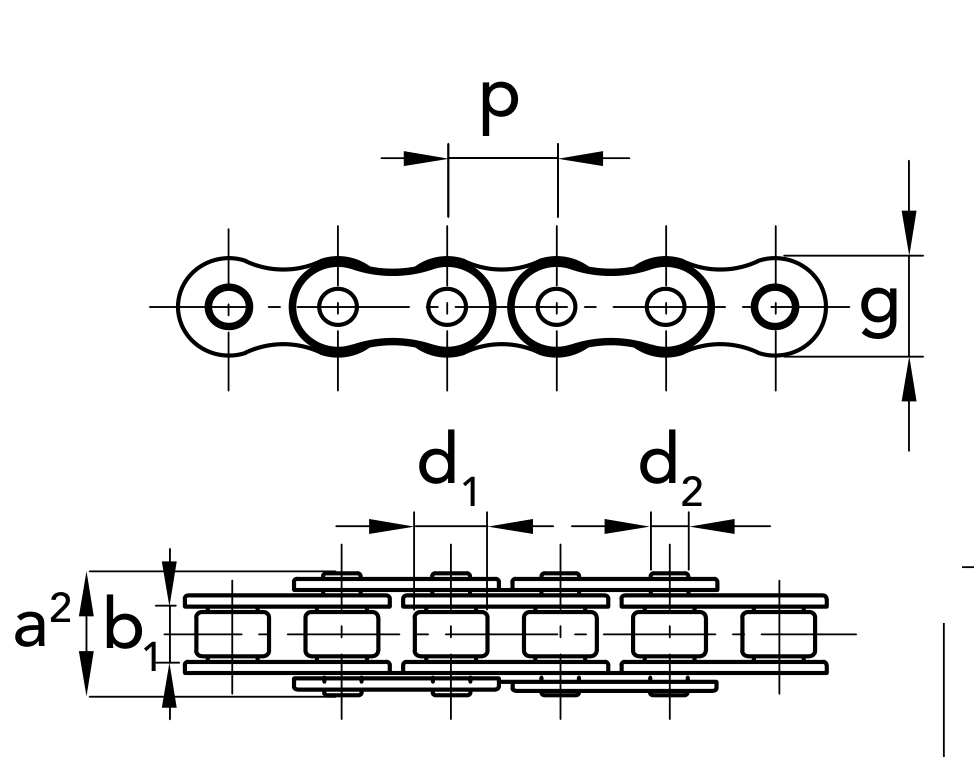

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
70110008 |
Chain
|
12.7 mm
|
1/2"
|
3.3 mm
|
3.64 mm
|
7.75 mm
|
9.3 mm
|
9.8 mm
|
0.2 cm²
|
8 kN
|
0.28 kg/m
|
70110058 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
70110088 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
081-1- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
