QRC Roller Chain 10B-3 Triplex — 5 m Pack
Triplex roller chain 10B-3 to ISO 606 - DIN 8187, supplied as a 5 m pack. Coupling and offset links are ordered as items on this page.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

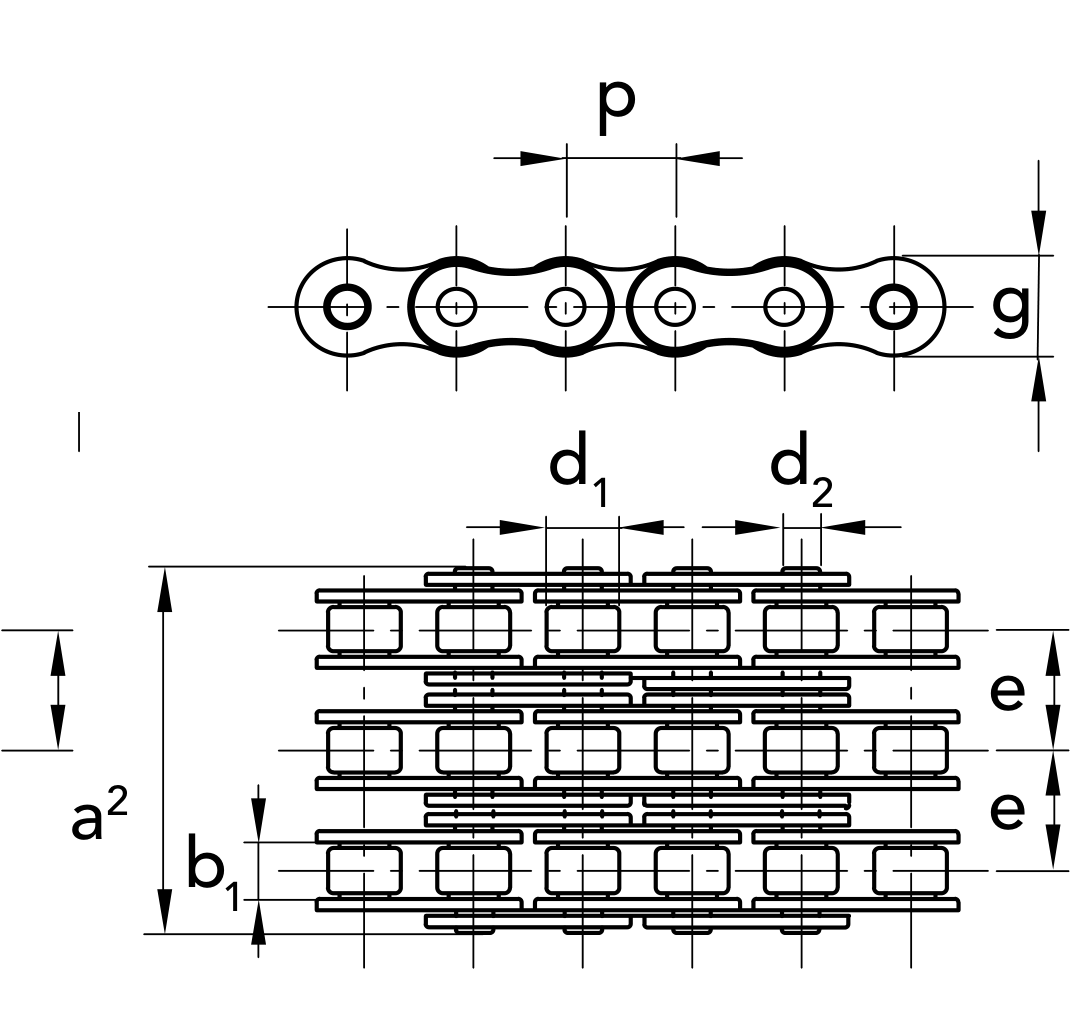

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
70315007 |
Chain
|
15.875 mm
|
5/8"
|
9.65 mm
|
5.08 mm
|
10.16 mm
|
52.8 mm
|
14.73 mm
|
16.59 mm
|
2.02 cm²
|
66.7 kN
|
2.68 kg/m
|
70315057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
70315087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
10B-3- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
