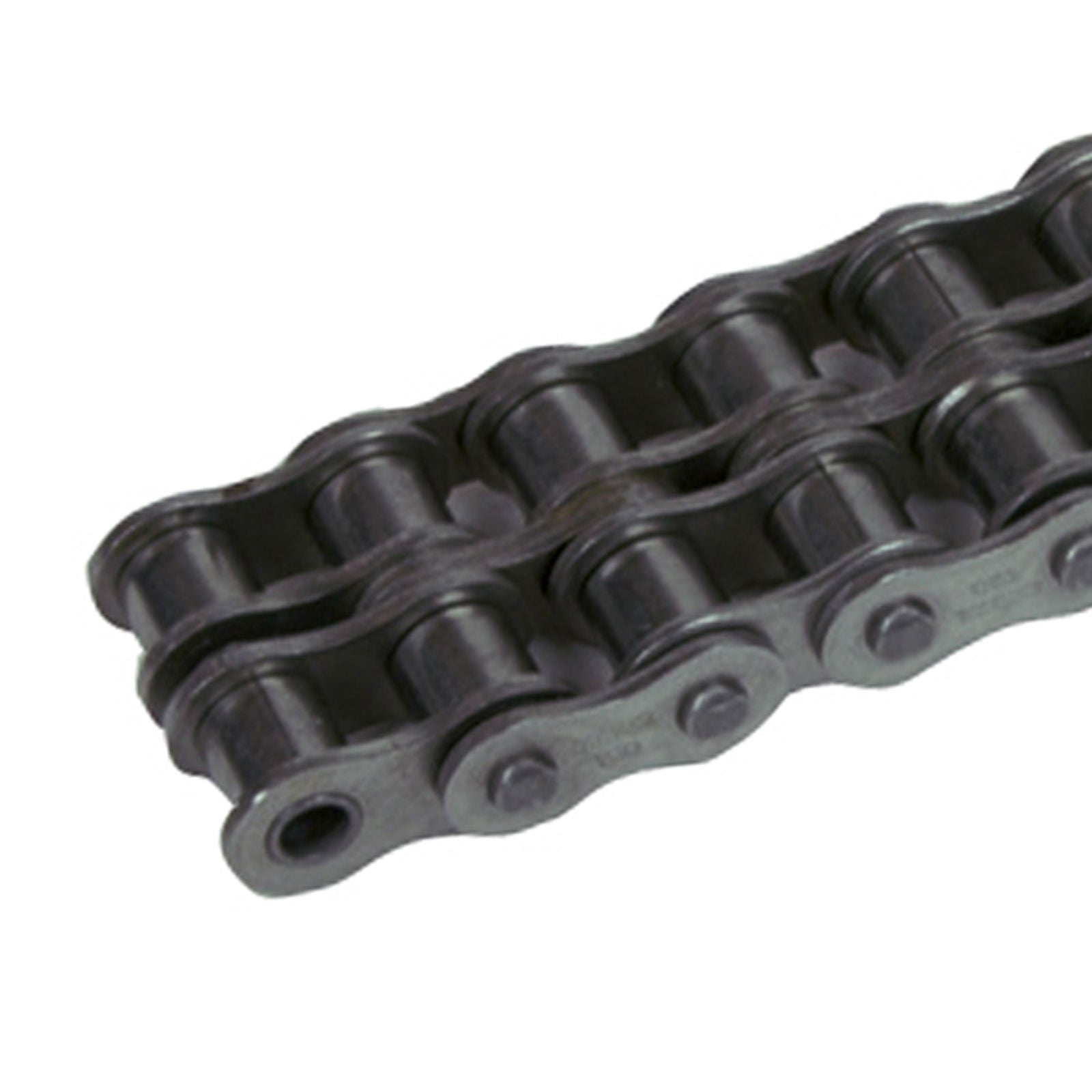

QRC Roller Chain 16B-2 Duplex — 25 m Roll
Duplex roller chain 16B-2 to ISO 606 - DIN 8187, supplied as a 25 m roll. Coupling and offset links are ordered as items on this page.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

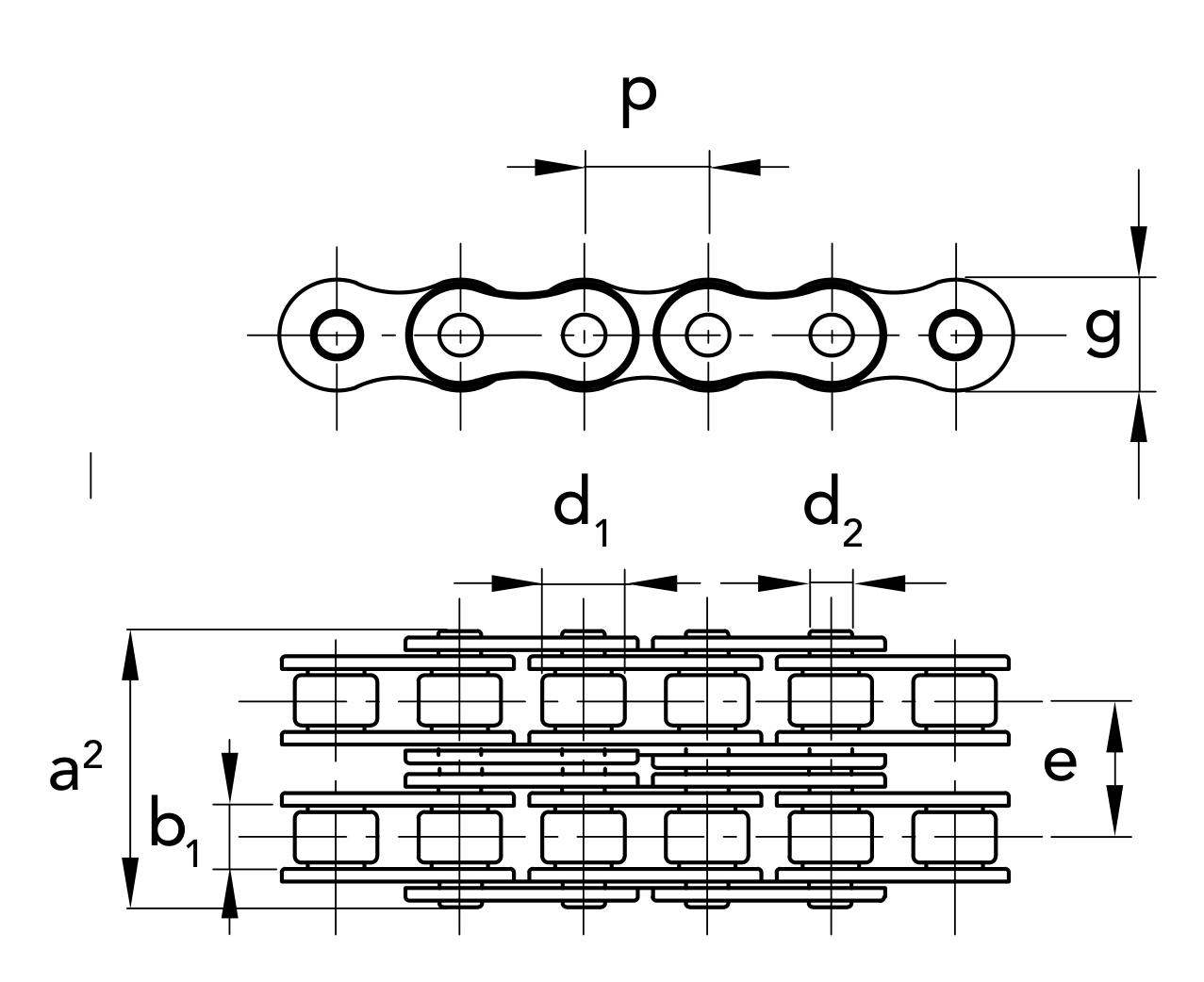

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
72225007 |
Chain
|
25.4 mm
|
1"
|
17.02 mm
|
8.28 mm
|
15.88 mm
|
68 mm
|
21.08 mm
|
31.88 mm
|
4.21 cm²
|
106 kN
|
5.03 kg/m
|
70225057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
70225087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
16B-2- Chain Type
- QRC® roller chain — European series
- Packaging
- 25 m roll
