QRC Roller Chain 28B-3 Triplex — 5 m Pack
Triplex roller chain 28B-3 to ISO 606 - DIN 8187, supplied as a 5 m pack. Coupling and offset links are ordered as items on this page.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

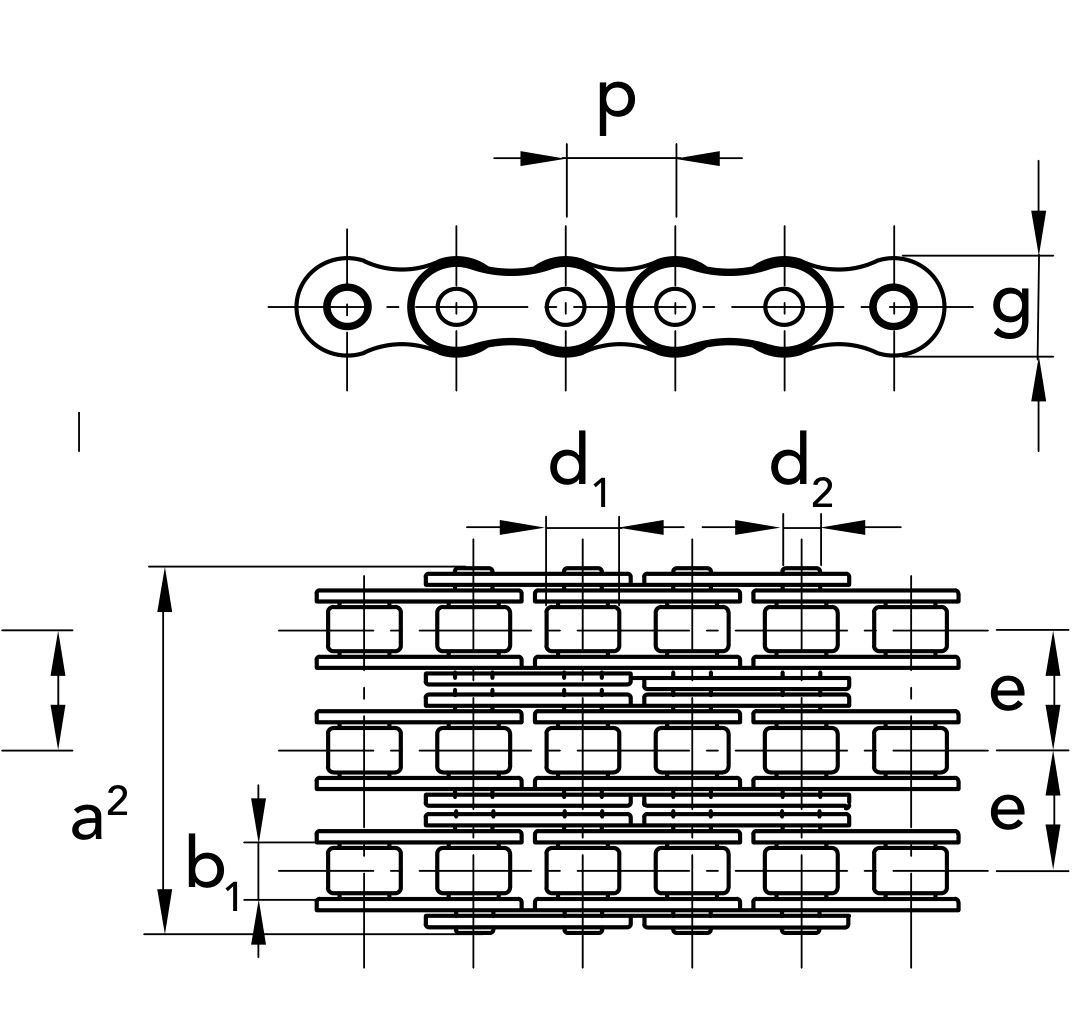

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
70344007 |
Chain
|
44.45 mm
|
1 3/4"
|
30.99 mm
|
15.9 mm
|
27.94 mm
|
184.3 mm
|
37.08 mm
|
59.56 mm
|
22.21 cm²
|
530 kN
|
25.38 kg/m
|
70344057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
70344087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
28B-3- Chain Type
- QRC® roller chain — European series
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
