QRC Roller Chain ASA 100-3 Triplex — 5 m Pack
Triplex American series "ANSI" ASA roller chain 100-3, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

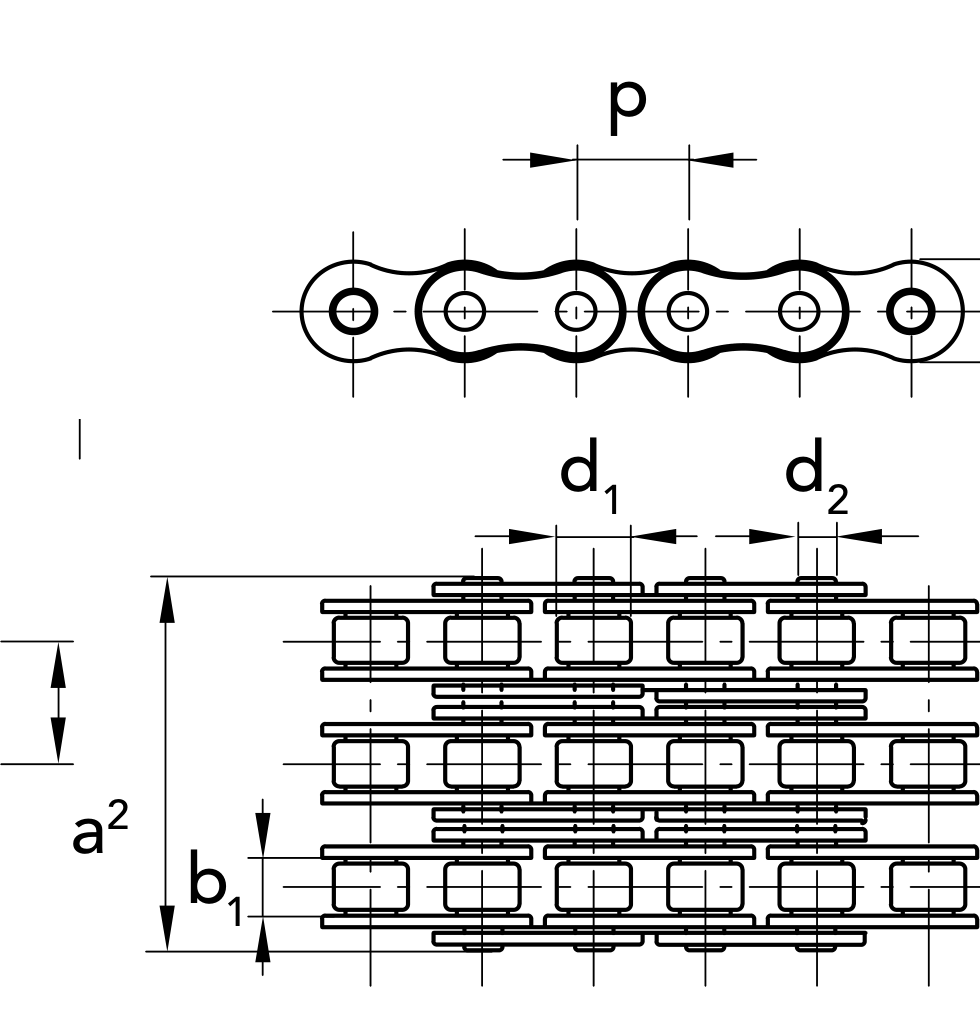

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71310007 |
Chain
|
31.75 mm
|
1 1/4"
|
19.05 mm
|
9.53 mm
|
19.05 mm
|
113 mm
|
30.18 mm
|
35.76 mm
|
7.86 cm²
|
265.5 kN
|
11.43 kg/m
|
71310057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71310087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
100-3- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
