Chiaravalli
QRC Roller Chain ASA 120-3 Triplex — 5 m Pack
Triplex American series "ANSI" ASA roller chain 120-3, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

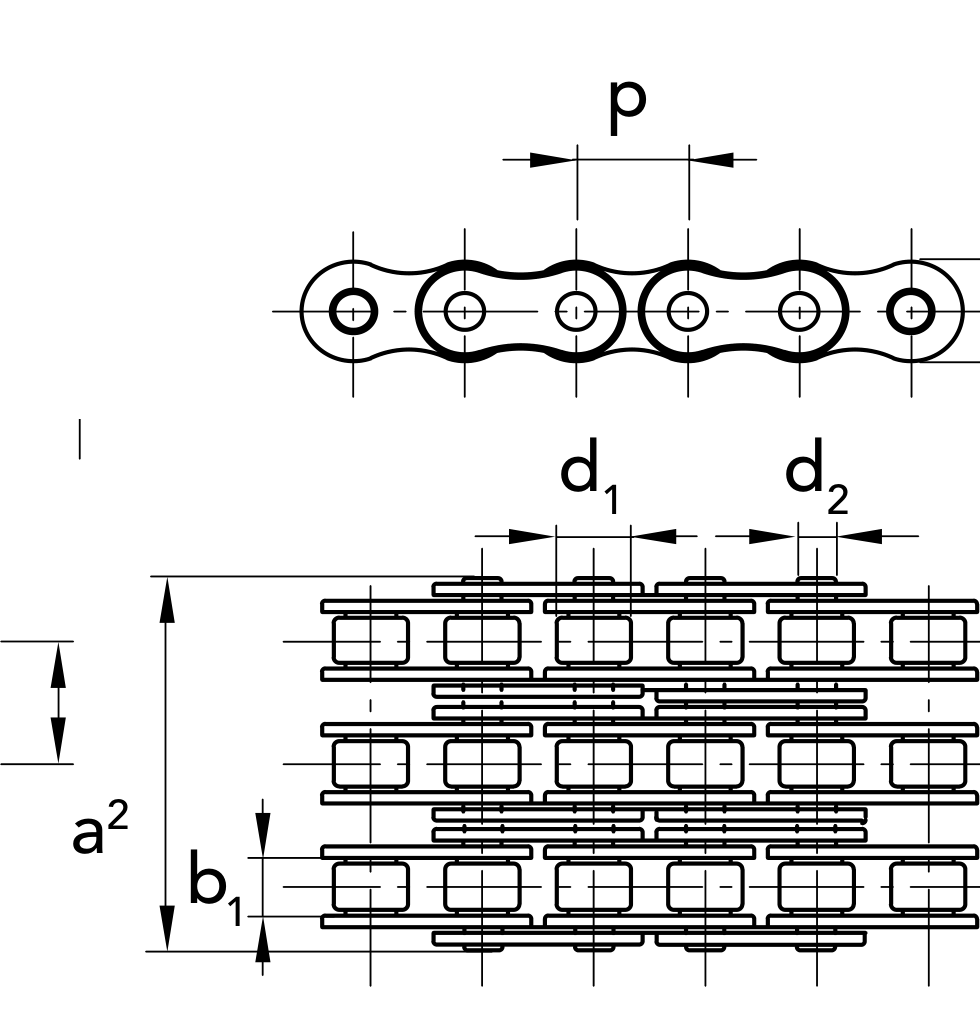

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71312007 |
Chain
|
38.1 mm
|
1 1/2"
|
25.4 mm
|
11.1 mm
|
22.23 mm
|
141.7 mm
|
36.2 mm
|
45.44 mm
|
11.82 cm²
|
381 kN
|
16.67 kg/m
|
71312057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71312087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
120-3- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
