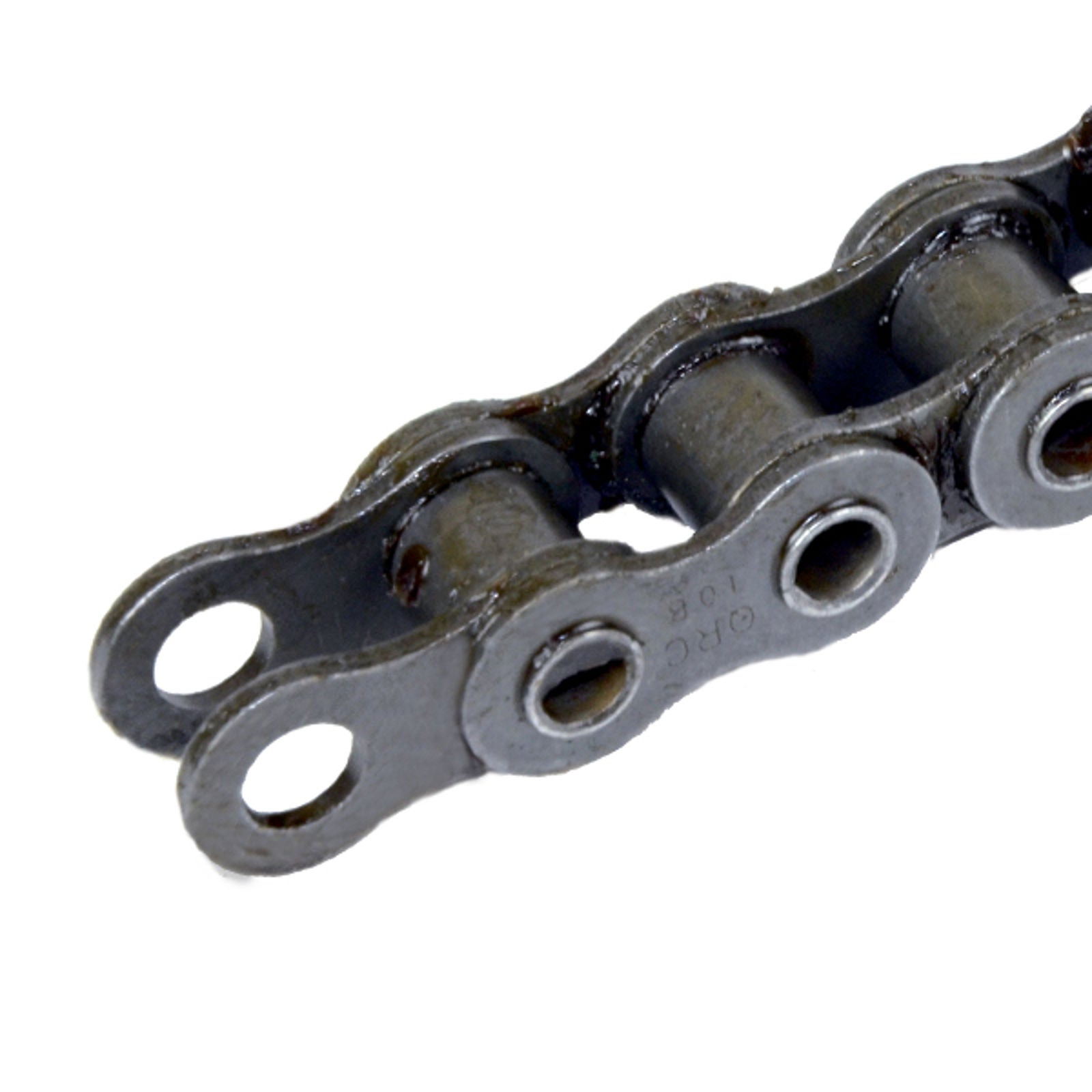

QRC Roller Chain ASA 120-H1 Reinforced — 5 m Pack
Reinforced simplex American series ASA roller chain 120-H1, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

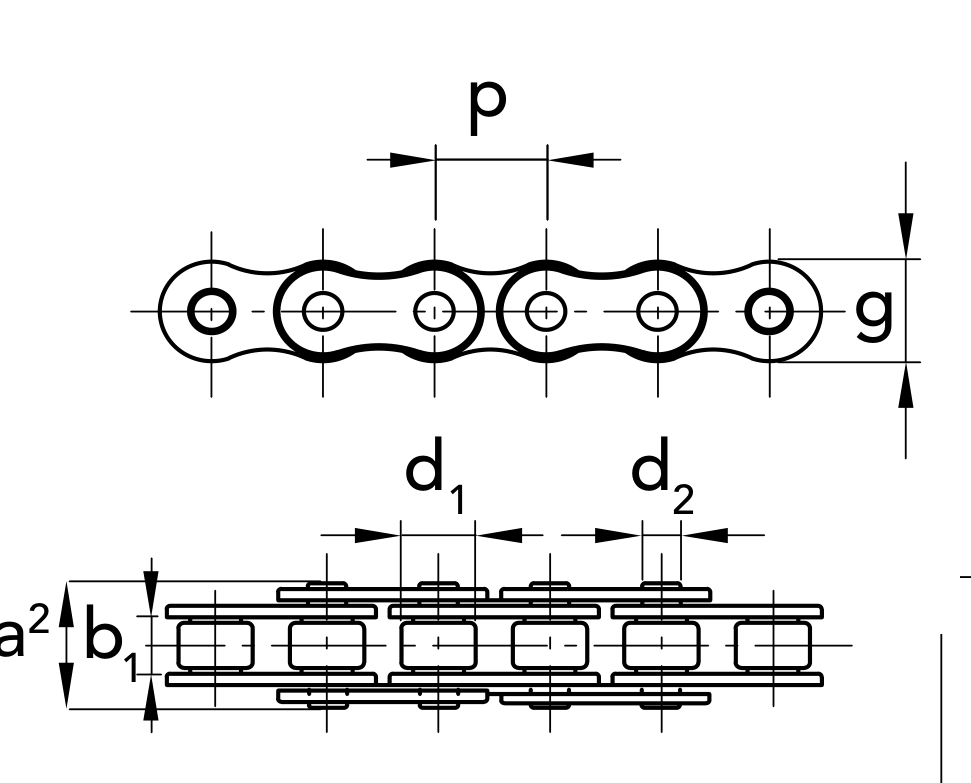

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
72912007 |
Chain
|
38.1 mm
|
1"1/2
|
25.4 mm
|
11.11 mm
|
22.22 mm
|
54.1 mm
|
36.19 mm
|
4 cm²
|
160.5 kN
|
6.2 kg/m
|
72912057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
72912087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
120-H1- Chain Type
- QRC® roller chain — ASA simplex reinforced
- Packaging
- Pack of 5 m
