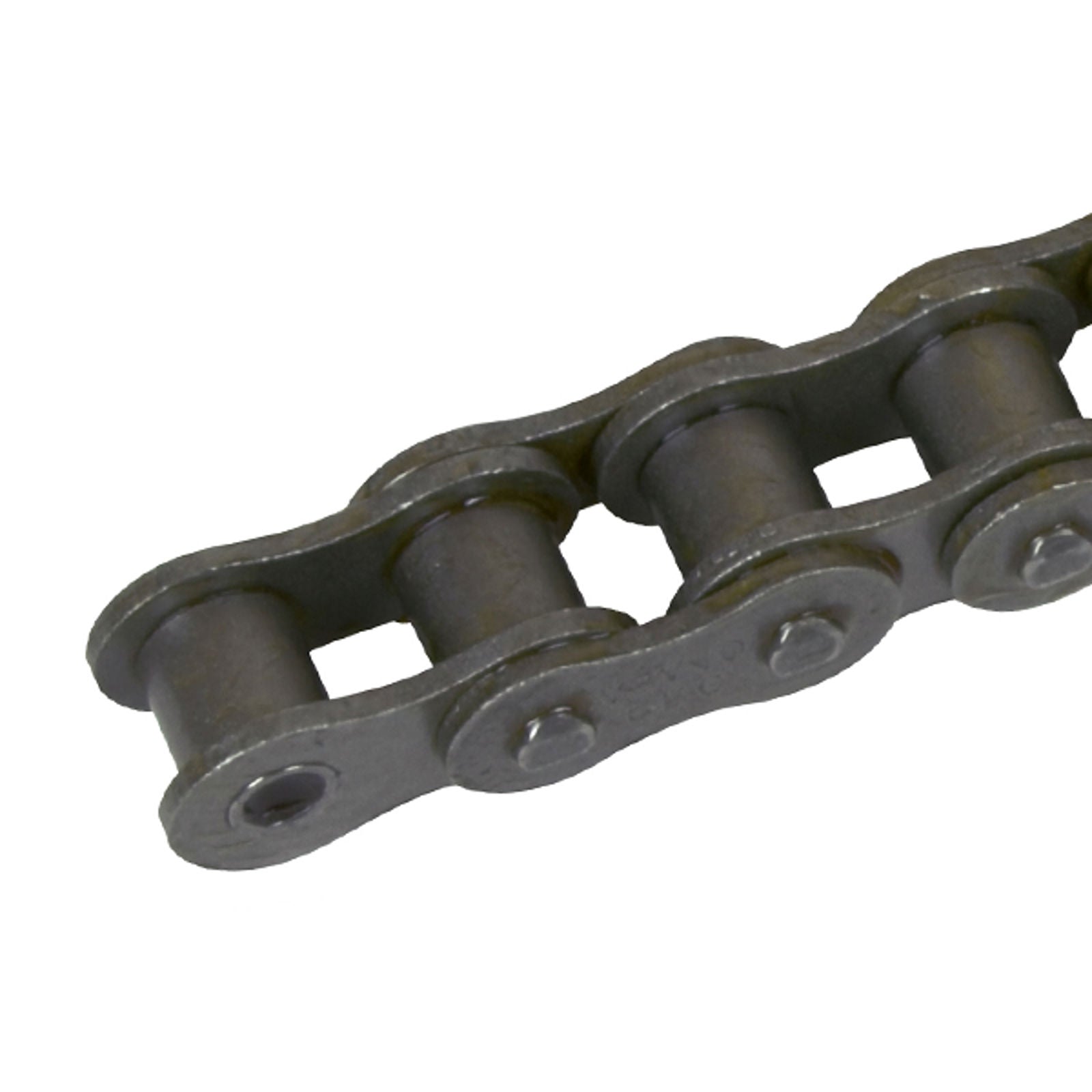

QRC Roller Chain ASA 140-1 Simplex — 5 m Pack
Simplex American series "ANSI" ASA roller chain 140-1, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

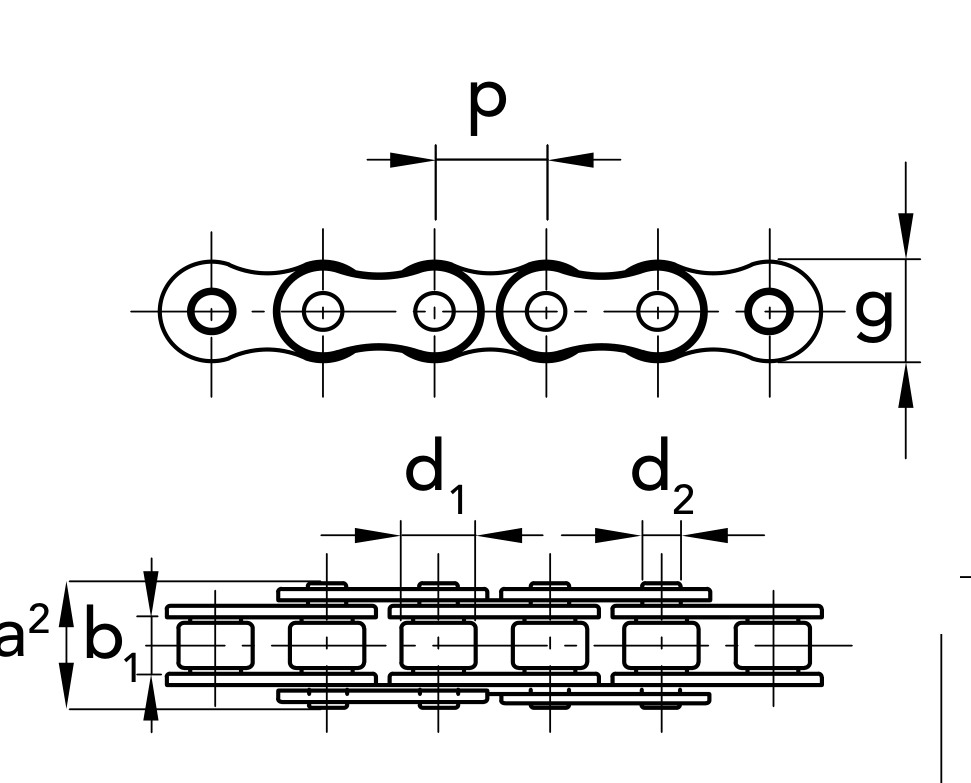

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
71114007 |
Chain
|
44.45 mm
|
1 3/4"
|
25.4 mm
|
12.7 mm
|
25.4 mm
|
54.9 mm
|
42.24 mm
|
4.72 cm²
|
172.4 kN
|
7.24 kg/m
|
71114057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
71114087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
140-1- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
