QRC Roller Chain ASA 160-3 Triplex — 5 m Pack
Triplex American series "ANSI" ASA roller chain 160-3, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

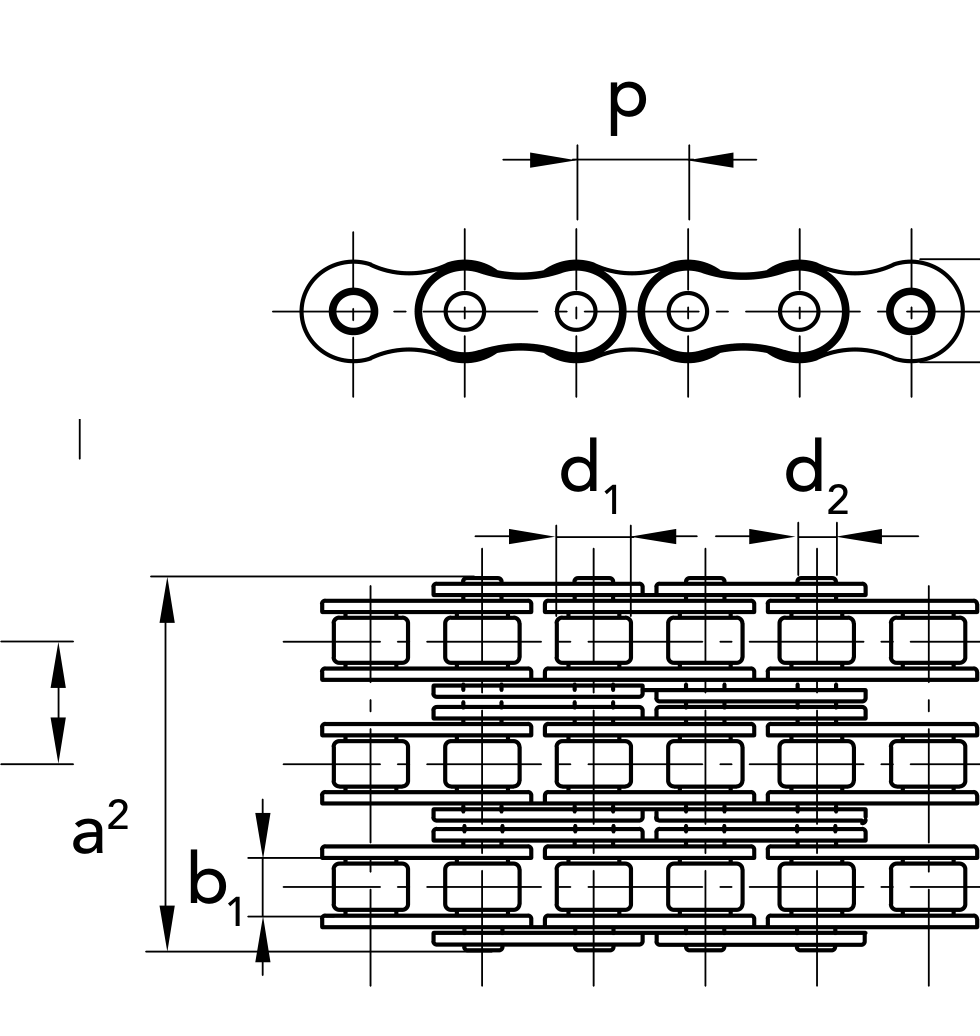

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71316007 |
Chain
|
50.8 mm
|
2"
|
31.75 mm
|
14.27 mm
|
28.58 mm
|
182.9 mm
|
48.26 mm
|
58.55 mm
|
19.5 cm²
|
680.4 kN
|
29.45 kg/m
|
71316057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71316087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
160-3- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
