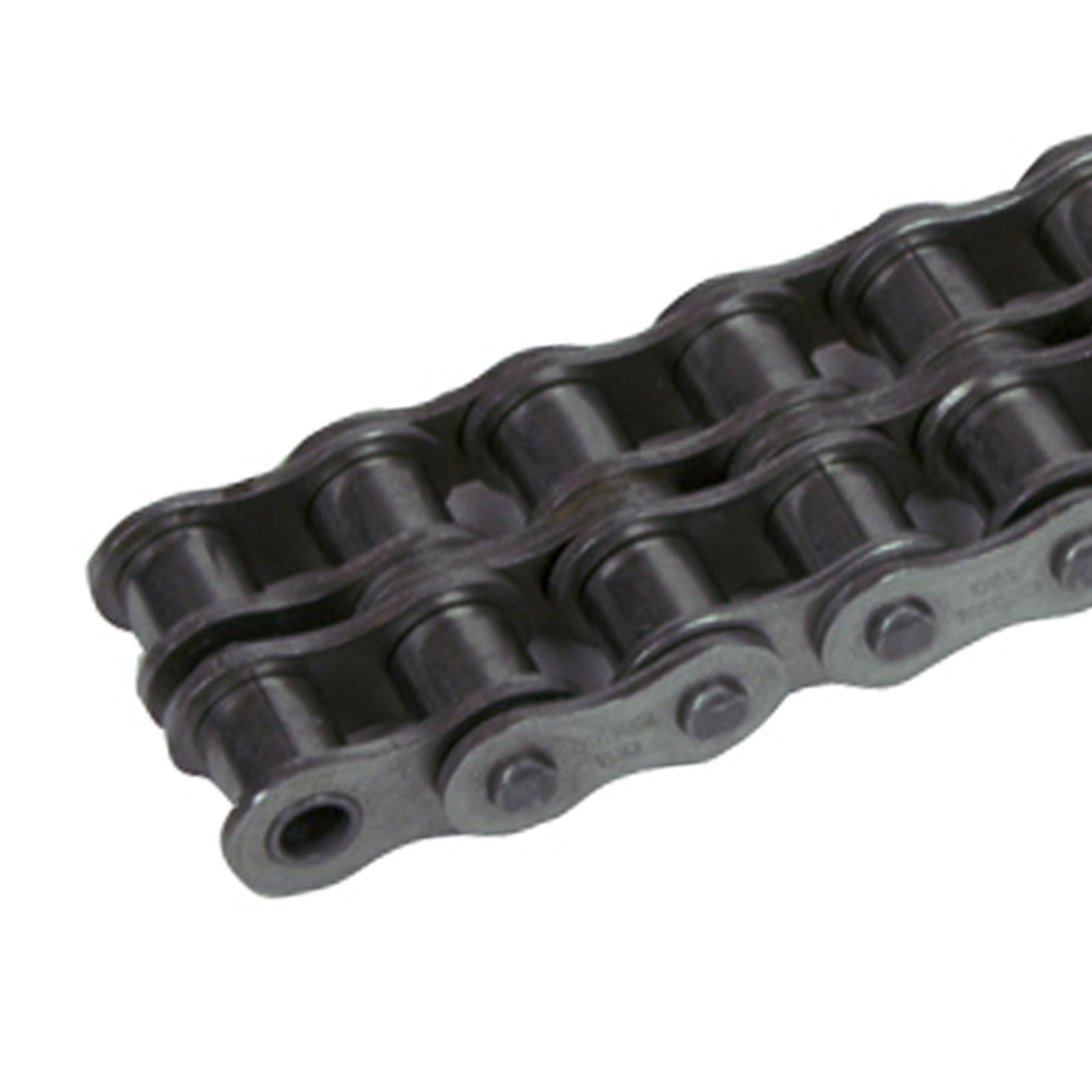

QRC Roller Chain ASA 35-2 Duplex — 5 m Pack
Duplex American series "ANSI" ASA roller chain 35-2, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

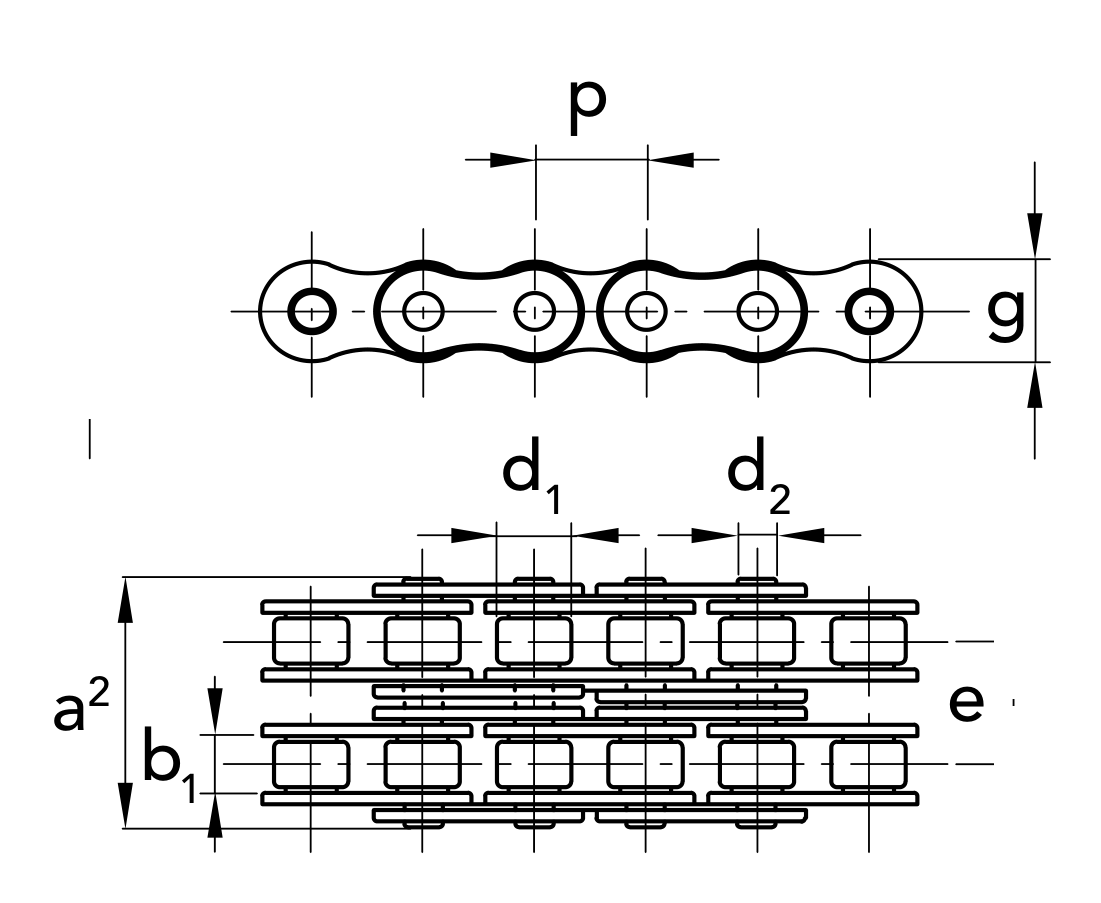

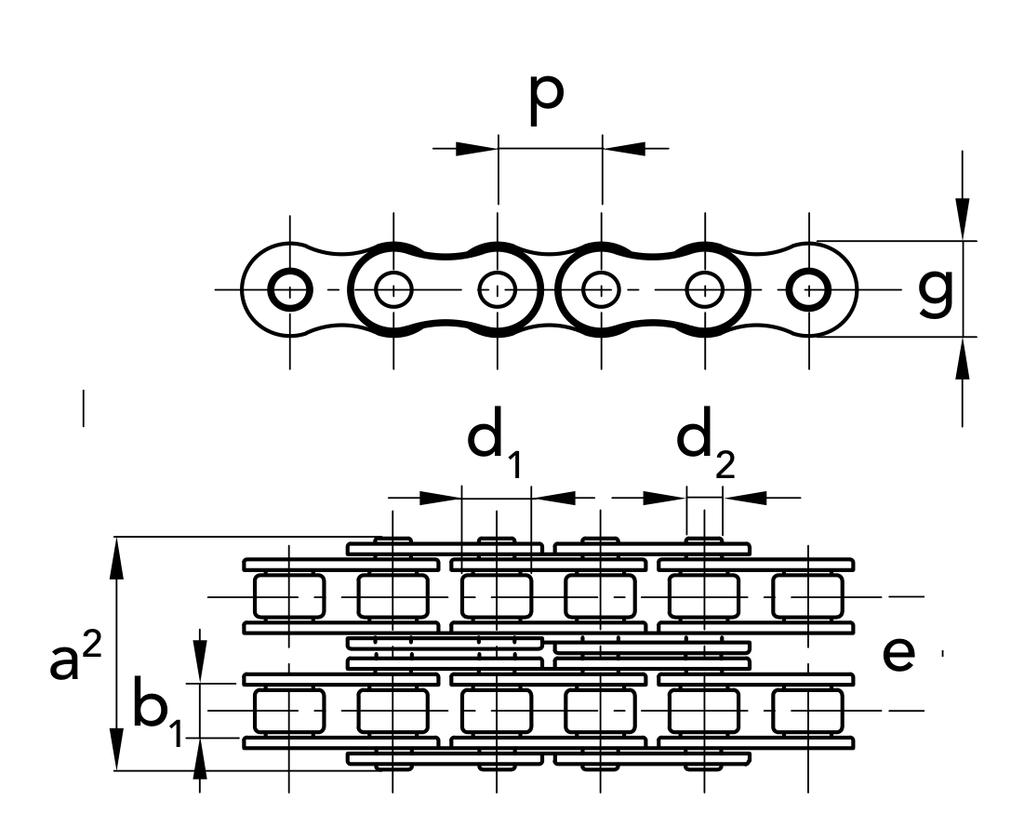

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71203007 |
Chain
|
9.525 mm
|
3/8"
|
4.77 mm
|
3.58 mm
|
5.08 mm
|
21.6 mm
|
9.05 mm
|
10.13 mm
|
0.54 cm²
|
15.8 kN
|
0.67 kg/m
|
71203057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71203087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
35-2- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
