QRC Roller Chain ASA 35-3 Triplex — 5 m Pack
Triplex American series "ANSI" ASA roller chain 35-3, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

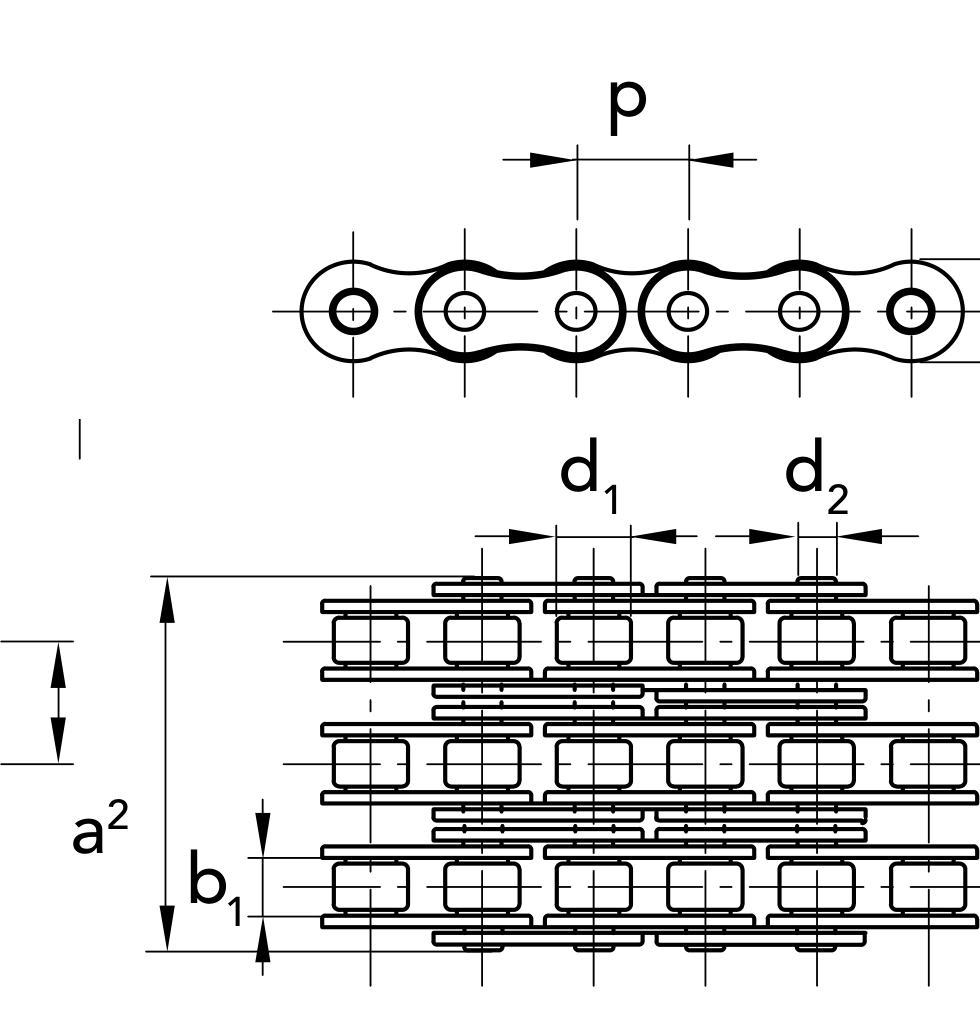

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71303007 |
Chain
|
9.525 mm
|
3/8"
|
4.77 mm
|
3.58 mm
|
5.08 mm
|
31.8 mm
|
9.05 mm
|
10.13 mm
|
0.81 cm²
|
23.7 kN
|
0.99 kg/m
|
71303057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71303087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
35-3- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
