Chiaravalli

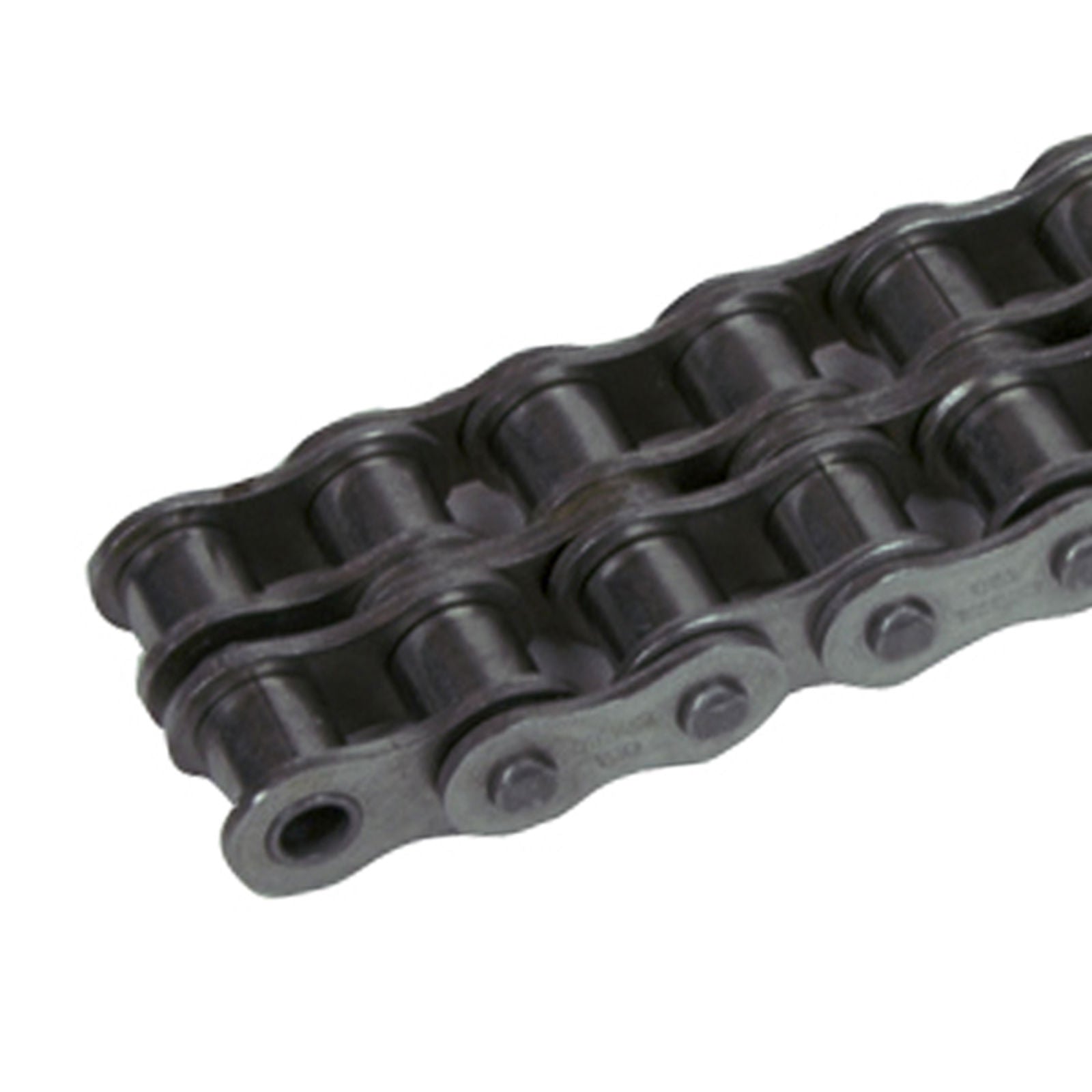

QRC Roller Chain ASA 40-2 Duplex — 5 m Pack
Duplex American series "ANSI" ASA roller chain 40-2, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

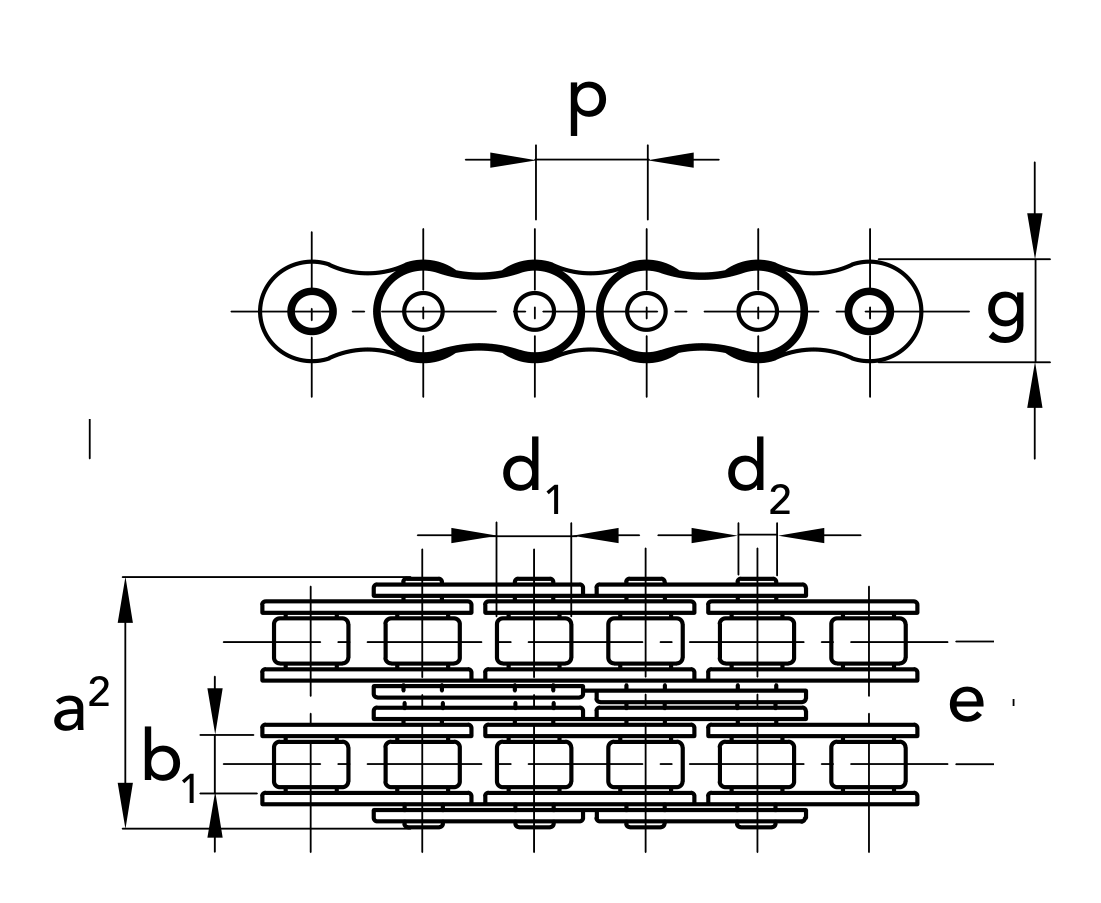

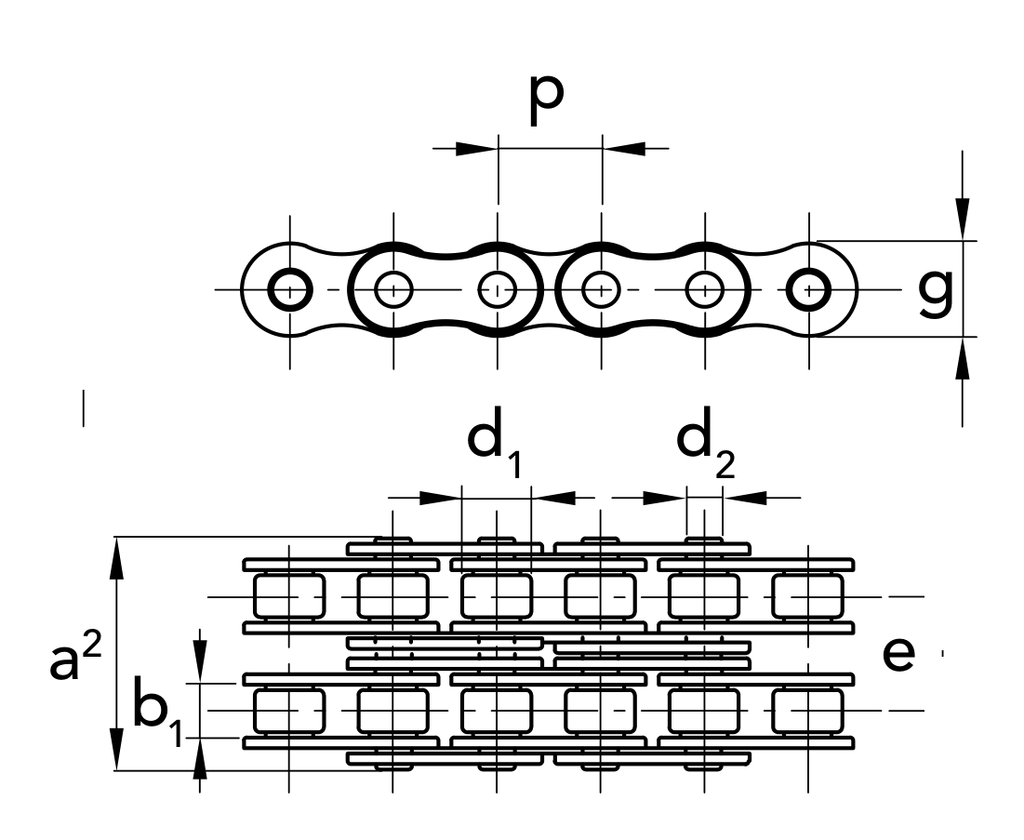

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71204007 |
Chain
|
12.7 mm
|
1/2"
|
7.95 mm
|
3.96 mm
|
7.92 mm
|
32.3 mm
|
12.07 mm
|
14.38 mm
|
0.88 cm²
|
28.2 kN
|
1.26 kg/m
|
71204057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71204087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
40-2- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
