Chiaravalli
QRC Roller Chain ASA 50-3 Triplex — 5 m Pack
Triplex American series "ANSI" ASA roller chain 50-3, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

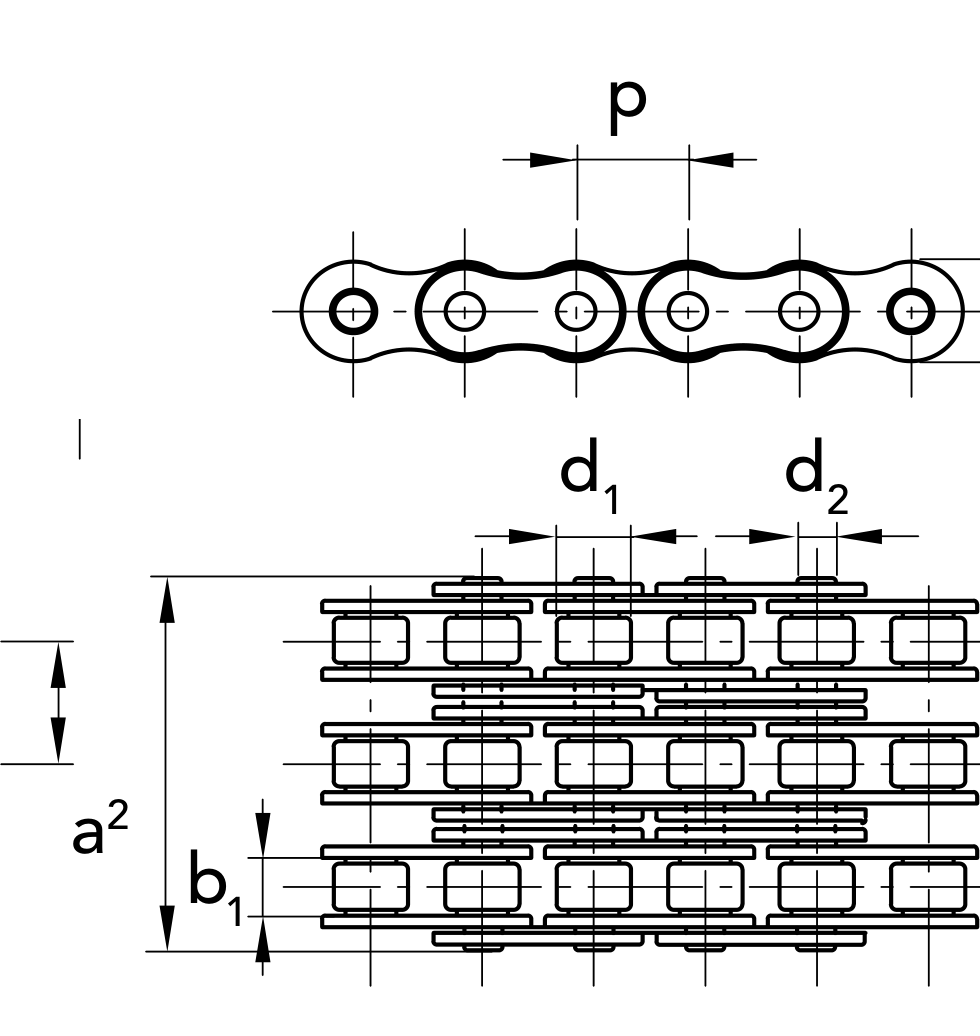

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71305007 |
Chain
|
15.875 mm
|
5/8"
|
9.53 mm
|
5.08 mm
|
10.16 mm
|
57.9 mm
|
15.09 mm
|
18.11 mm
|
2.1 cm²
|
66.6 kN
|
3.06 kg/m
|
71305057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71305087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
50-3- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
