Chiaravalli

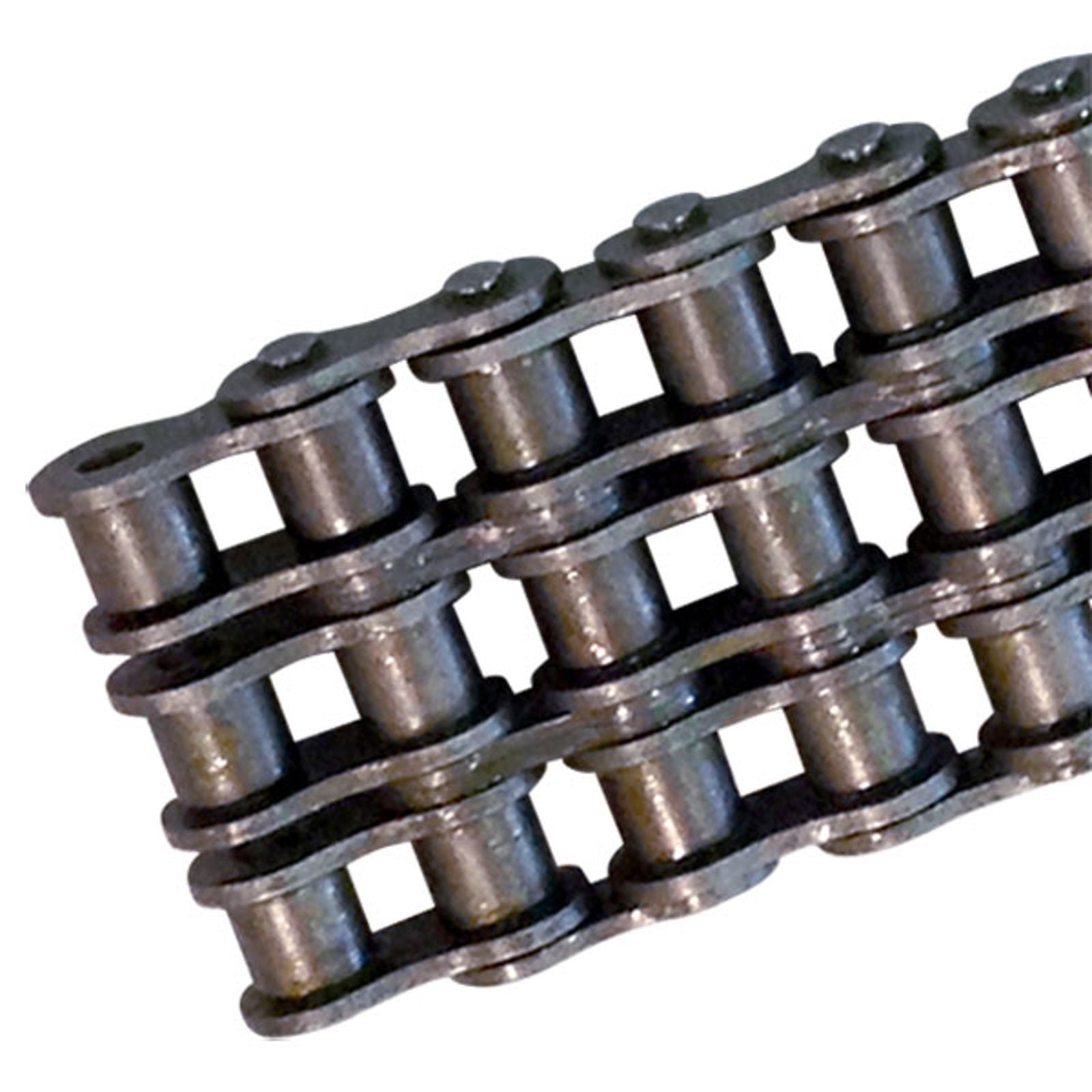

QRC Roller Chain ASA 60-3 Triplex — 5 m Pack
Triplex American series "ANSI" ASA roller chain 60-3, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

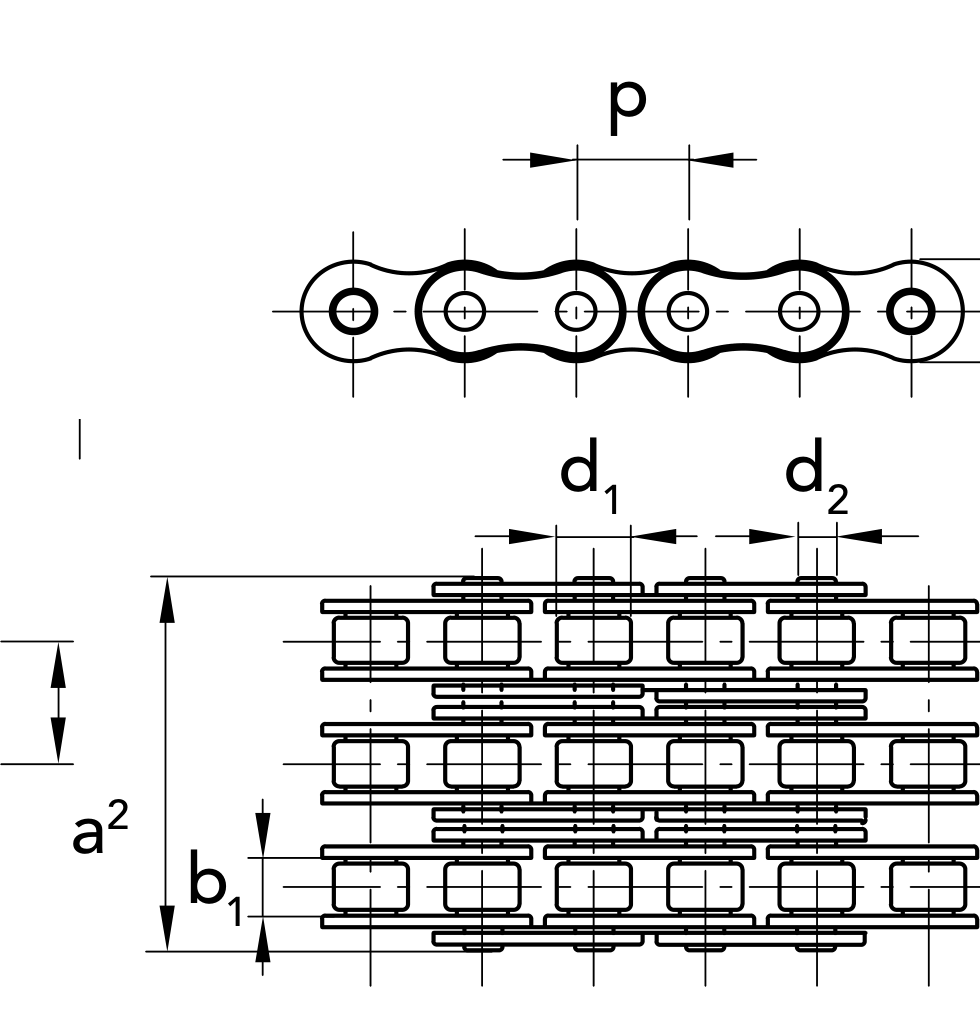

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | e | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
71306007 |
Chain
|
19.05 mm
|
3/4"
|
12.7 mm
|
5.94 mm
|
11.91 mm
|
72.6 mm
|
18.08 mm
|
22.78 mm
|
3.18 cm²
|
95.4 kN
|
4.5 kg/m
|
71306057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — | — |
71306087 |
Offset
|
— | — | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
60-3- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
