QRC Roller Chain ASA 60-H1 Reinforced — 5 m Pack

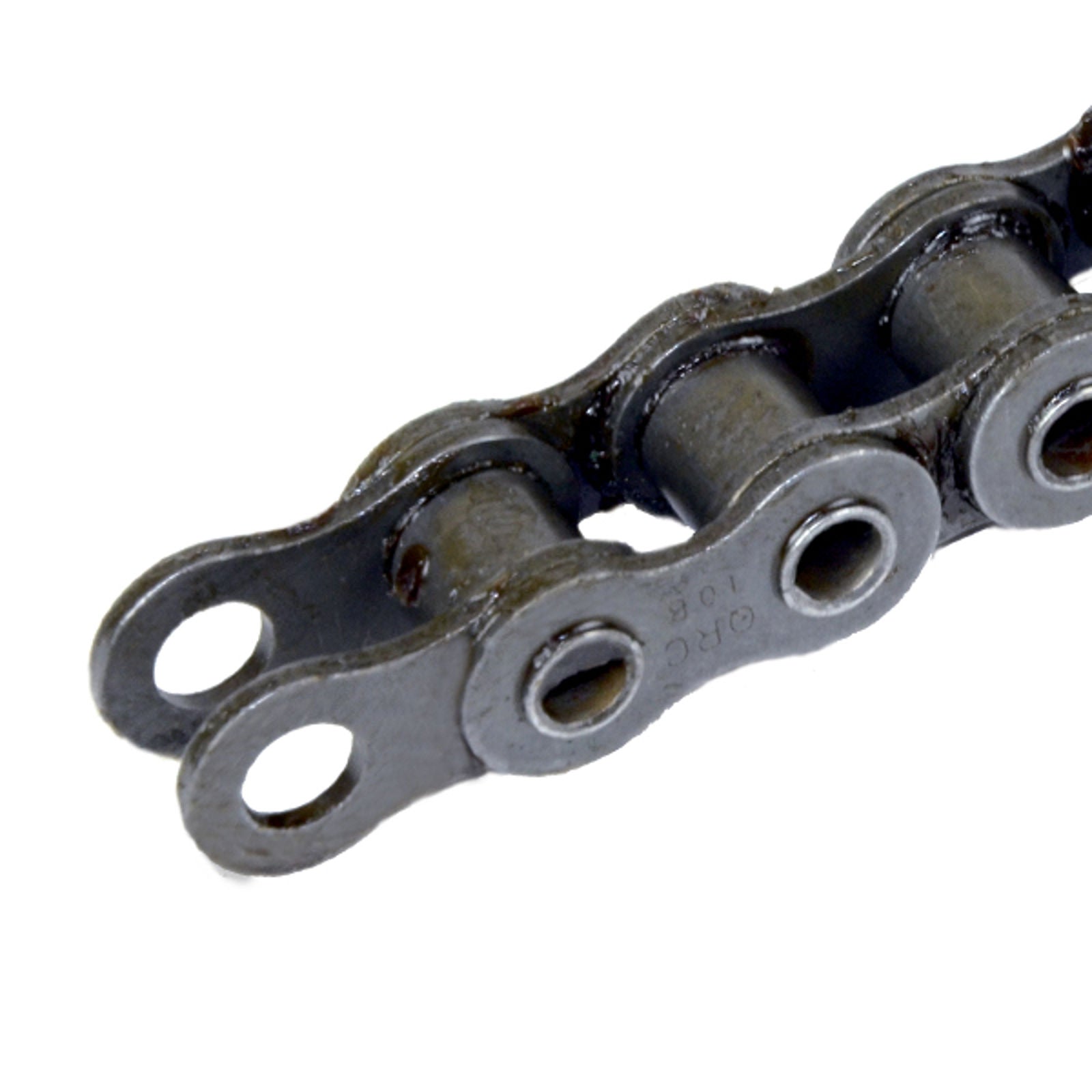

Reinforced simplex American series ASA roller chain 60-H1, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

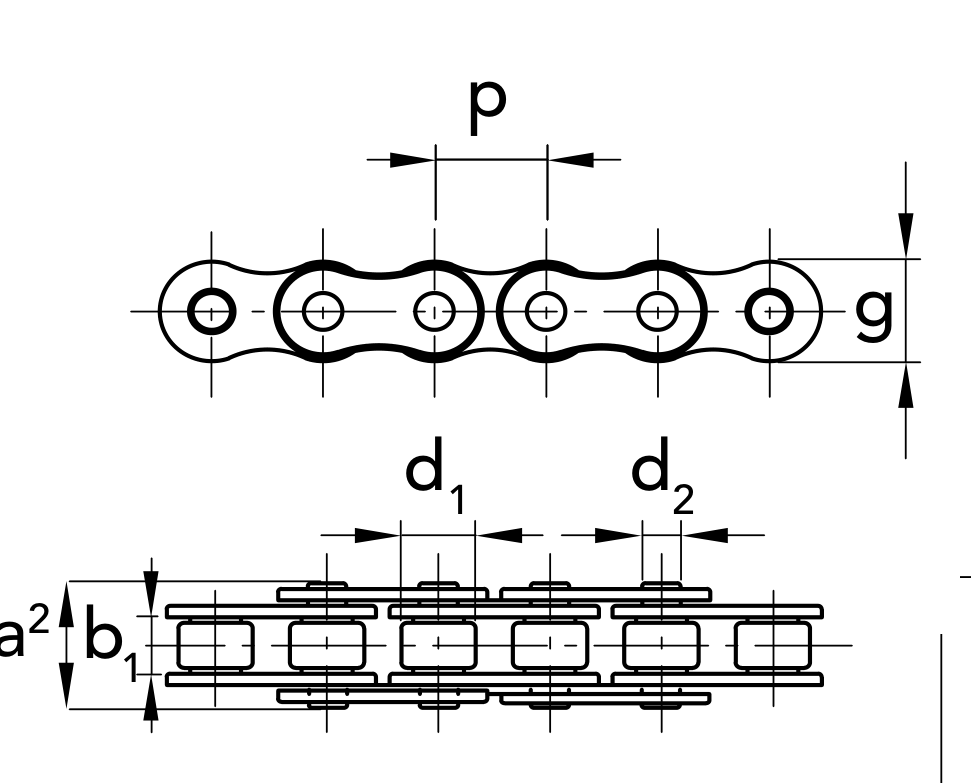

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
72906007 |
Chain
|
19.05 mm
|
3/4"
|
12.7 mm
|
5.94 mm
|
11.91 mm
|
28.9 mm
|
18.08 mm
|
1.06 cm²
|
49 kN
|
1.7 kg/m
|
72906057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
72906087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
60-H1- Chain Type
- QRC® roller chain — ASA simplex reinforced
- Packaging
- Pack of 5 m
