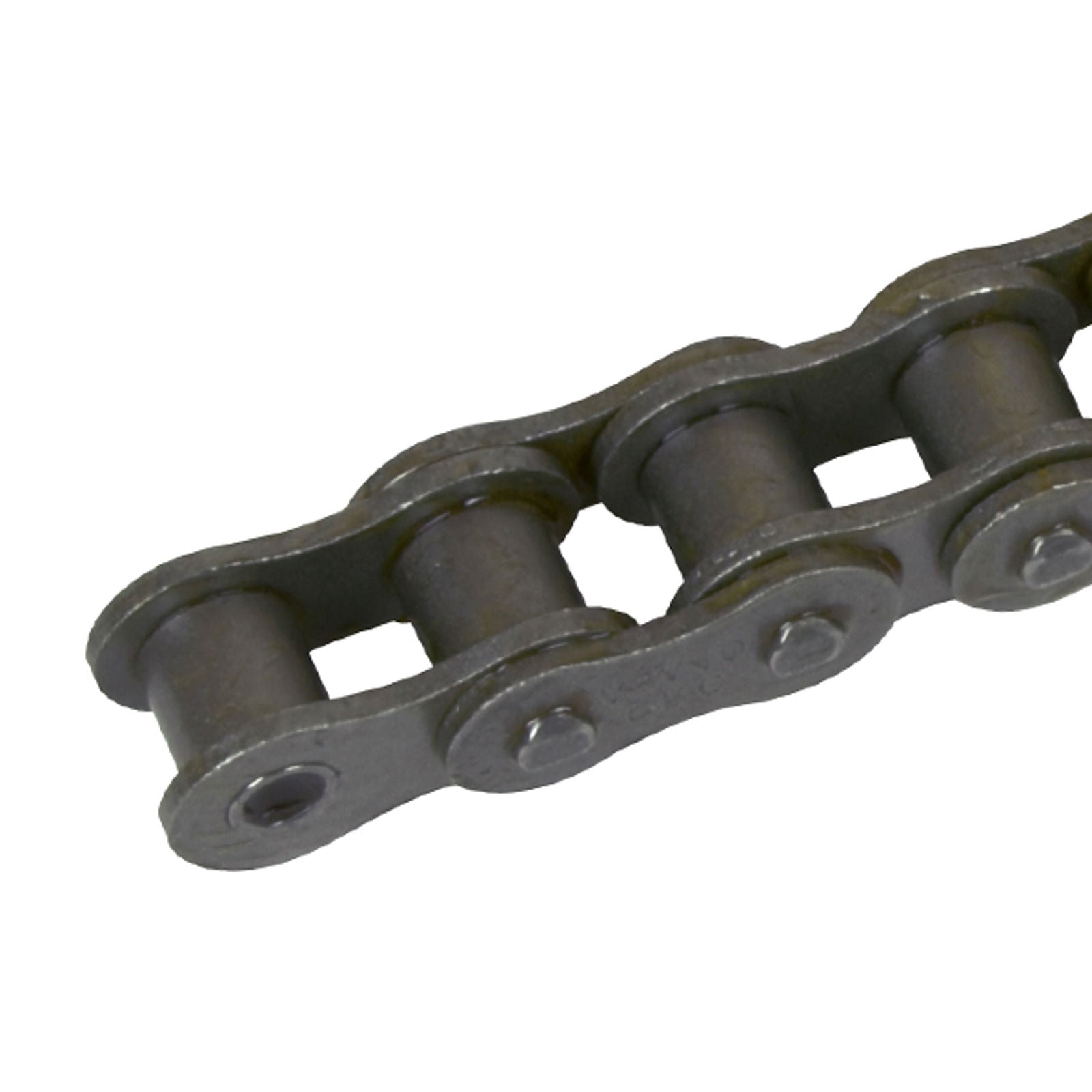

QRC Roller Chain ASA 80-1 Simplex — 5 m Pack
Simplex American series "ANSI" ASA roller chain 80-1, supplied as a 5 m pack.
Chains manufactured by an ISO 9001 certified factory according to ISO 606 - DIN 8187. All QRC® chains are subject to pretensioning — this operation is made in order to fix dimension and stretching.
Product Configuration
Select a row to add it to your quote

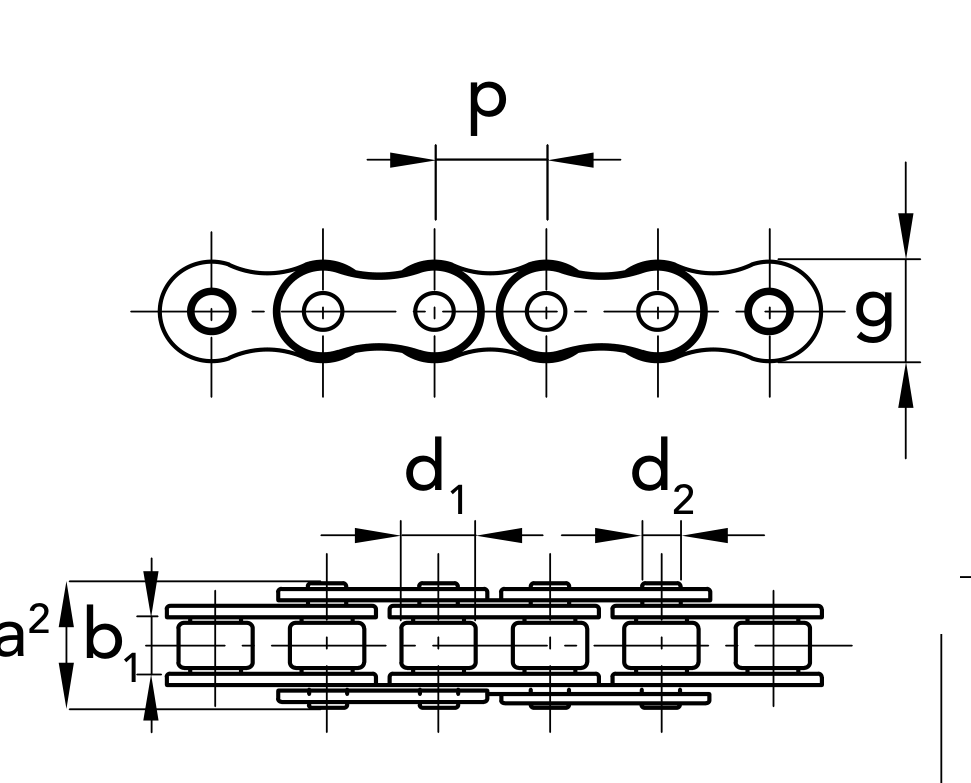

| Code | Item | p | p (inch) | b1 min | d2 | d1 max | a2 max | g max | f (resistant surface) | Breaking load (min) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
71108007 |
Chain
|
25.4 mm
|
1"
|
15.88 mm
|
7.92 mm
|
15.88 mm
|
33.5 mm
|
24.13 mm
|
1.79 cm²
|
56.7 kN
|
2.58 kg/m
|
71108057 |
Coupling
|
— | — | — | — | — | — | — | — | — | — |
71108087 |
Offset
|
— | — | — | — | — | — | — | — | — | — |
No products match the selected filters.
Product Information
- Standard
ISO 606 - DIN 8187- Series
80-1- Chain Type
- QRC® roller chain — American series ASA
- Packaging
- Pack of 5 m
