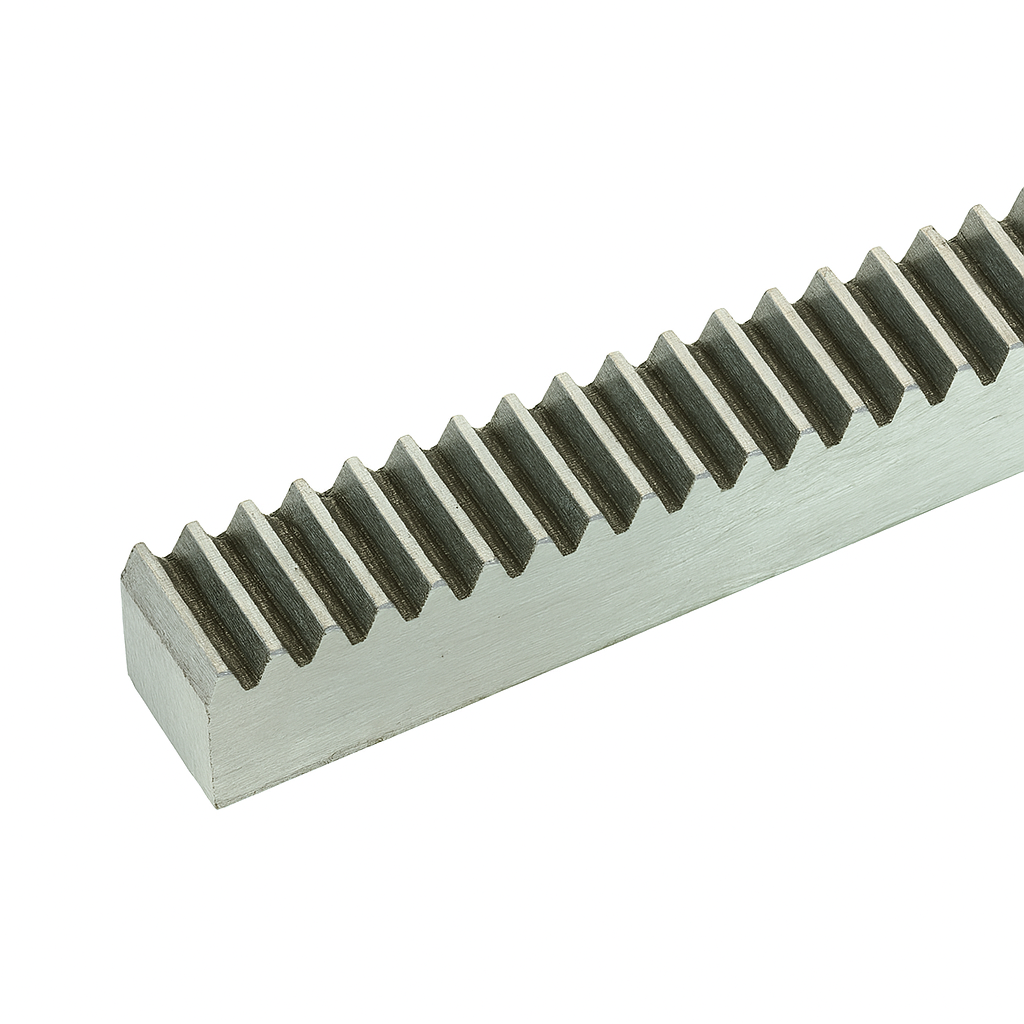

Chiaravalli Rack M1 15×15
Chiaravalli

Rack M1 15×15

Racks · M1

Product Configuration

Select a row to add it to your quote

Code Lbhho Weight CAD
30910050 500 mm 15 mm 15 mm 14 mm 0.82 kg
30910100 1000 mm 15 mm 15 mm 14 mm 1.64 kg
30910200 2000 mm 15 mm 15 mm 14 mm 3.2 kg
30910300 3000 mm 15 mm 15 mm 14 mm 4.8 kg

Product Information

Module (m)
1.0
Pressure Angle (α)
20°
Cross-section
15.0 × 15.0 mm
Standard
DIN 867
Material
C40 Steel

Cross-References

Also Known As

  • rack M1
  • gear rack M1
  • M1 15x15 rack

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
