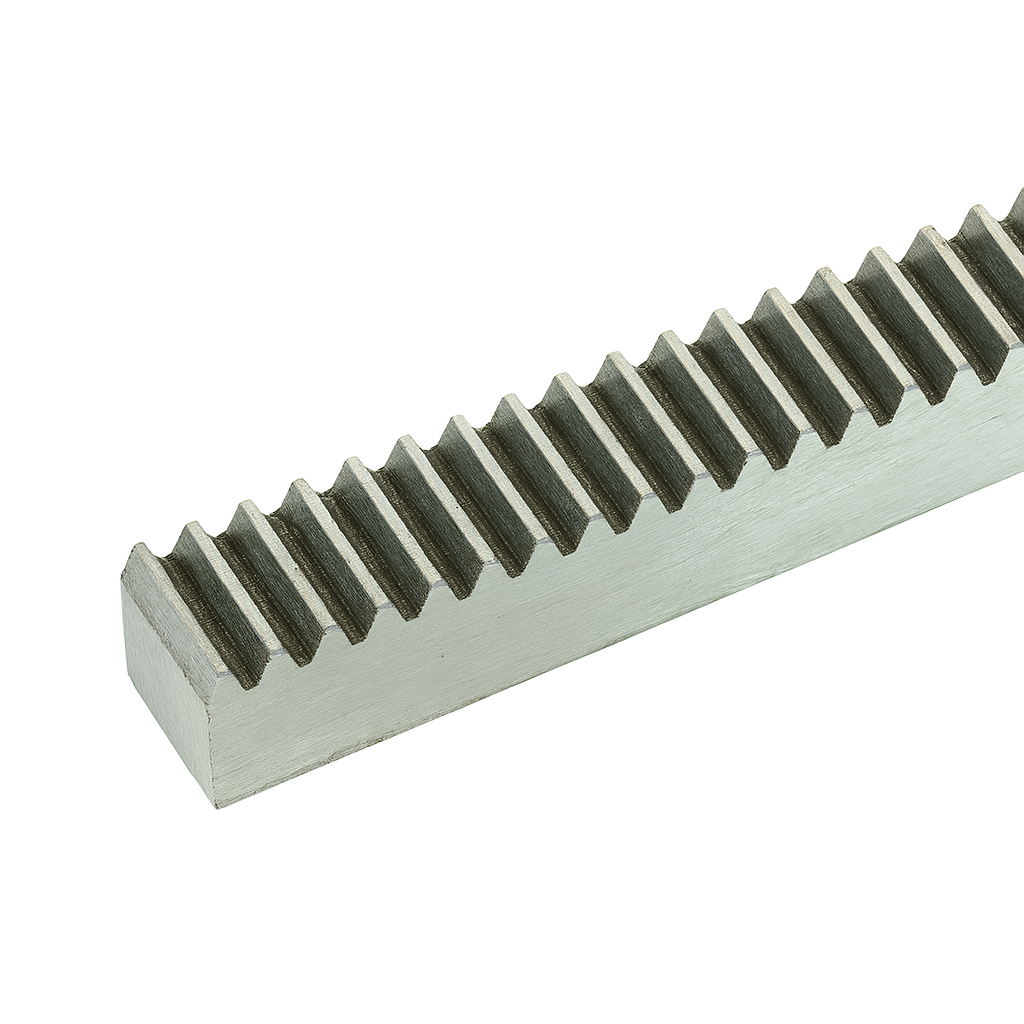

Chiaravalli Rack M1.5 17×17
Chiaravalli

Rack M1.5 17×17

Racks · M1.5

Product Configuration

Select a row to add it to your quote

Code Lbhho Weight CAD
30915050 500 mm 17 mm 17 mm 15.5 mm 1.0 kg
30915100 1000 mm 17 mm 17 mm 15.5 mm 2.05 kg
30915200 2000 mm 17 mm 17 mm 15.5 mm 4.0 kg
30915300 3000 mm 17 mm 17 mm 15.5 mm 6.0 kg

Product Information

Module (m)
1.5
Pressure Angle (α)
20°
Cross-section
17.0 × 17.0 mm
Standard
DIN 867
Material
C40 Steel

Cross-References

Also Known As

  • rack M1.5
  • gear rack M1.5
  • M1.5 17x17 rack

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
