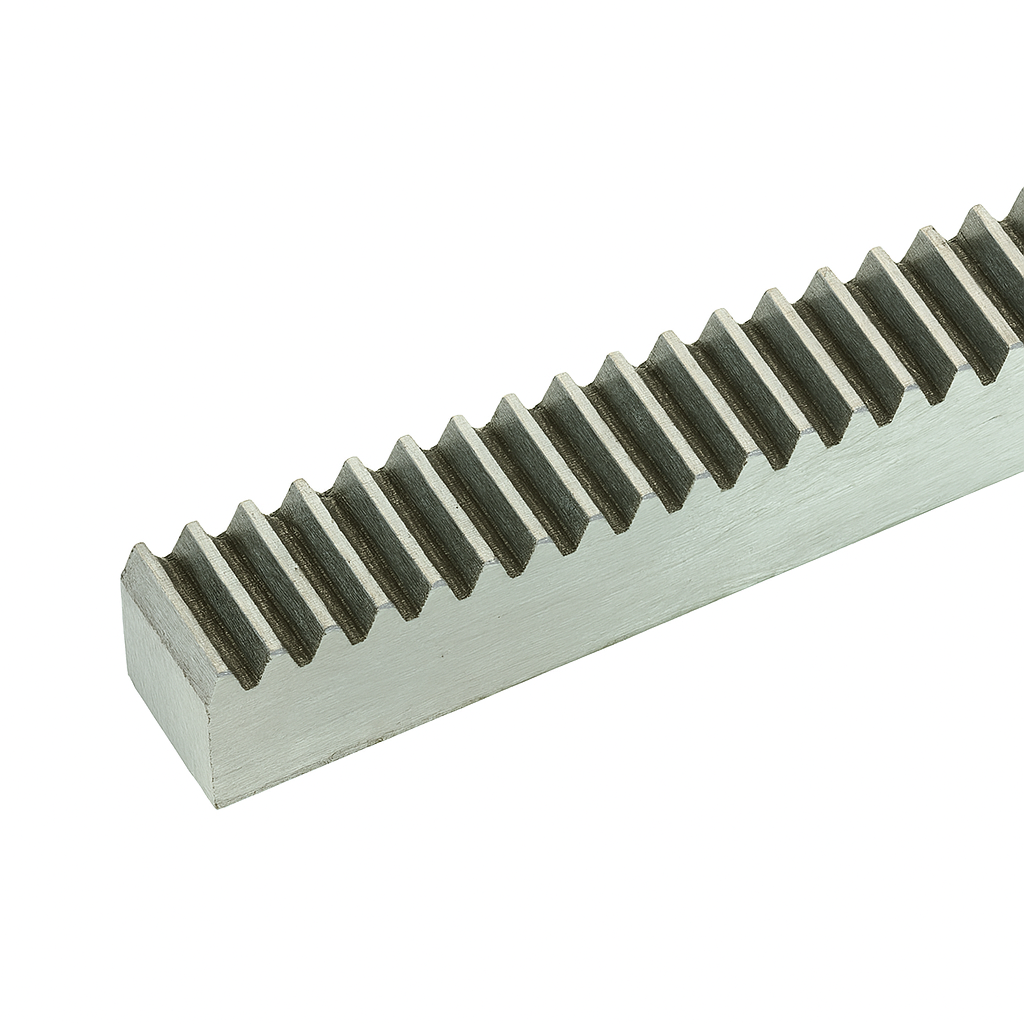

Chiaravalli Rack M2 20×20
Chiaravalli

Rack M2 20×20

Racks · M2

Product Configuration

Select a row to add it to your quote

Code Lbhho Weight CAD
30920050 500 mm 20 mm 20 mm 18 mm 1.41 kg
30920100 1000 mm 20 mm 20 mm 18 mm 2.75 kg
30920200 2000 mm 20 mm 20 mm 18 mm 5.5 kg
30920300 3000 mm 20 mm 20 mm 18 mm 8.2 kg

Product Information

Module (m)
2.0
Pressure Angle (α)
20°
Cross-section
20.0 × 20.0 mm
Standard
DIN 867
Material
C40 Steel

Cross-References

Also Known As

  • rack M2
  • gear rack M2
  • M2 20x20 rack
