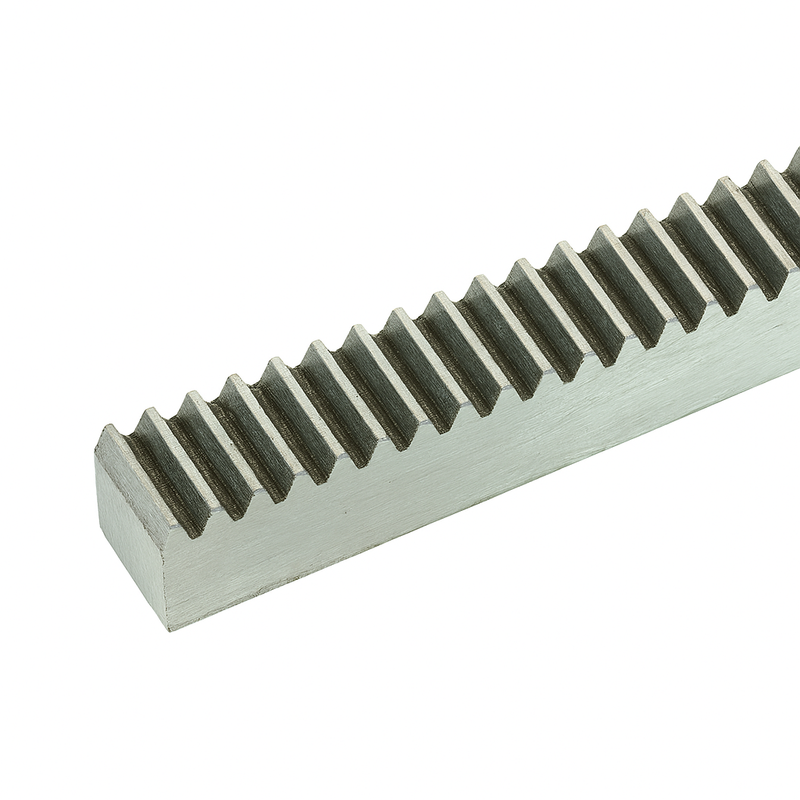

Chiaravalli Rack M5 50×50
Chiaravalli

Rack M5 50×50

Racks · M5

Product Configuration

Select a row to add it to your quote

Code Lbhho Weight CAD
30950050 500 mm 50 mm 50 mm 45 mm 8.3 kg
30950100 1000 mm 50 mm 50 mm 45 mm 17.5 kg
30950200 2000 mm 50 mm 50 mm 45 mm 35.0 kg
30950300 3000 mm 50 mm 50 mm 45 mm 52.4 kg

Product Information

Module (m)
5.0
Pressure Angle (α)
20°
Cross-section
50.0 × 50.0 mm
Standard
DIN 867
Material
C40 Steel

Cross-References

Also Known As

  • rack M5
  • gear rack M5
  • M5 50x50 rack
