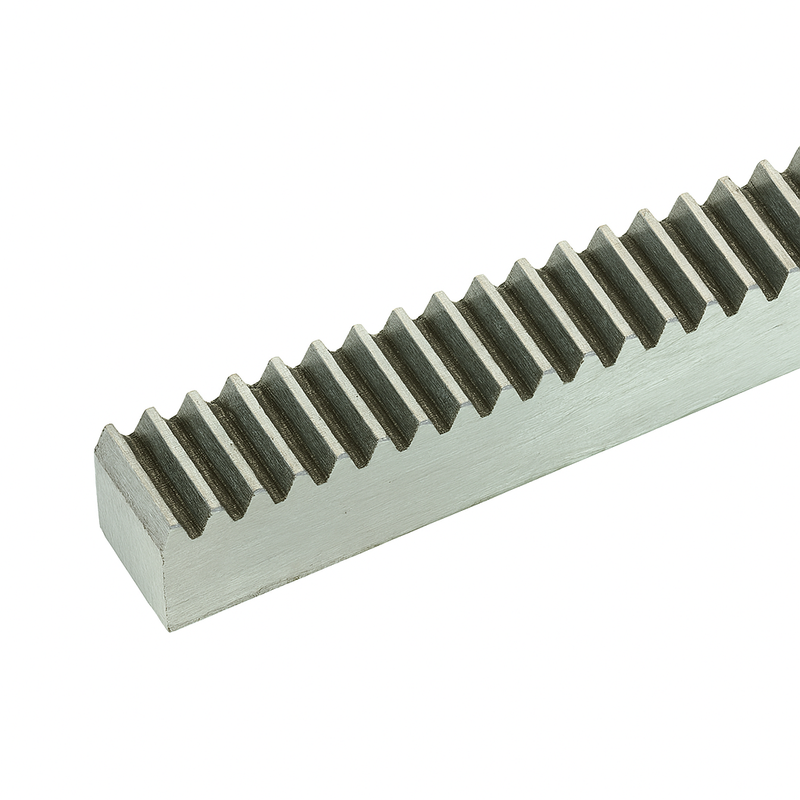

Chiaravalli Rack M6 60×60
Chiaravalli

Rack M6 60×60

Racks · M6

Product Configuration

Select a row to add it to your quote

Code Lbhho Weight CAD
30960050 500 mm 60 mm 60 mm 54 mm 12.65 kg
30960100 1000 mm 60 mm 60 mm 54 mm 25.5 kg
30960200 2000 mm 60 mm 60 mm 54 mm 51.0 kg
30960300 3000 mm 60 mm 60 mm 54 mm 76.4 kg

Product Information

Module (m)
6.0
Pressure Angle (α)
20°
Cross-section
60.0 × 60.0 mm
Standard
DIN 867
Material
C40 Steel

Cross-References

Also Known As

  • rack M6
  • gear rack M6
  • M6 60x60 rack

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
