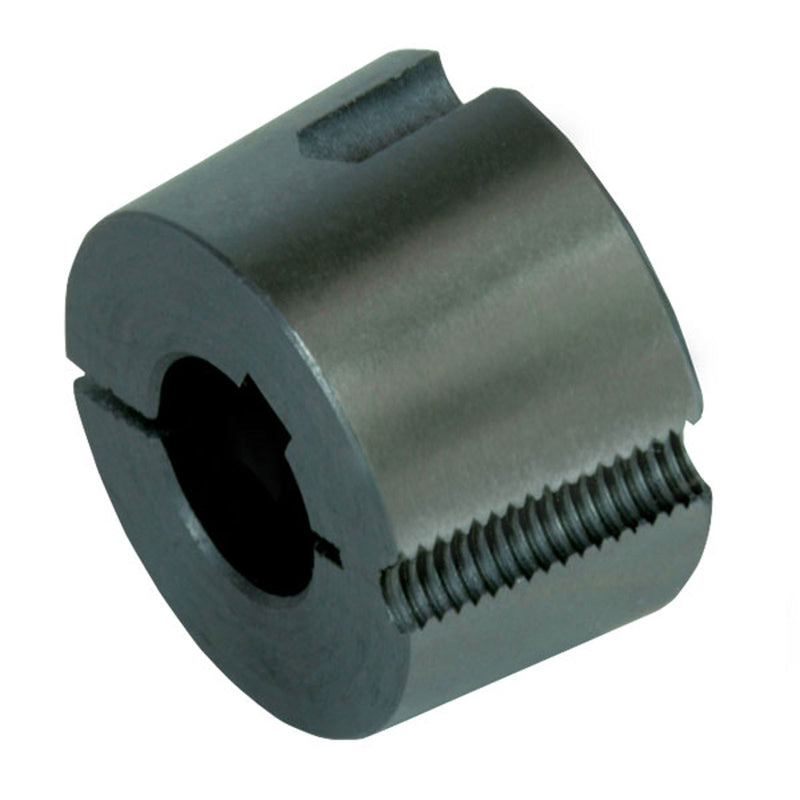

Chiaravalli RCB® Taper Bush TL 1108 — product photo
Chiaravalli

RCB® Taper Bush TL 1108

Taper-Lock® bush TL 1108, execution A. Finished bores are reamed ISO G7 with a DIN 6885-JS9 keyway (B × T2); the prebore version is supplied H8 without keyway for machining to size.

  • Outside diameter D1: 38 mm
  • Length L: 22 mm
  • Grub screws: 1/4”x1/2” British Standard Whitworth
  • Tightening torque: 5.6 N·m

Product Configuration

Select a row to add it to your quote

Code Bore Ø D2BT2 Weight CAD
29110800 12 (prebore H8, no keyway) mm — — 0.15 kg
29110812 12 G7 mm 4 mm 1.8 mm 0.15 kg
29110814 14 G7 mm 5 mm 2.3 mm 0.15 kg
29110816 16 G7 mm 5 mm 2.3 mm 0.14 kg
29110818 18 G7 mm 6 mm 2.8 mm 0.13 kg
29110819 19 G7 mm 6 mm 2.8 mm 0.13 kg
29110820 20 G7 mm 6 mm 2.8 mm 0.12 kg
29110824 24 G7 mm 8 mm 3.3 mm 0.1 kg
29110825 25 G7 mm 8 mm 3.3 mm 0.09 kg
29110828 28 G7 mm 8 mm 2 mm 0.07 kg

Product Information

Material
Grey cast iron UNI EN 1561
Standard
Bore ISO G7 — keyway DIN 6885-JS9
