Chiaravalli

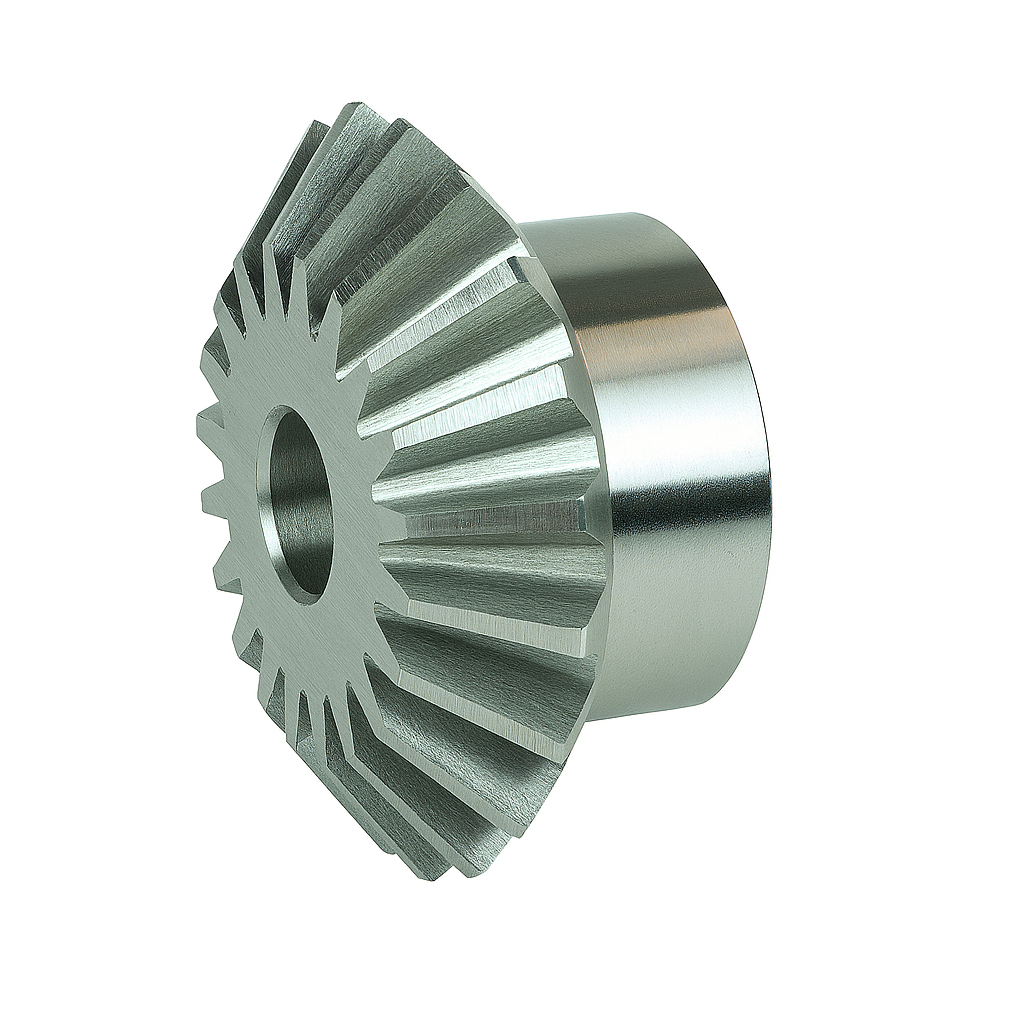

Special Bevel Gear M1.5 1:1

Name: Chiaravalli Special Bevel Gear M1.5 1:1
Brand: Chiaravalli

Bevel Gears · M1.5 1:1

Select a row to add it to your quote

Teeth

Code	Z	dp	de	F	A	dm	D1	V	Lm	Weight
`35151116`	`16`	`24` mm	`26.1` mm	`6` mm	`18.9` mm	`20.3` mm	`8` mm	`7.1` mm	`12` mm	`0.04` kg
`35151119`	`19`	`28.5` mm	`30.6` mm	`7` mm	`21.3` mm	`20.3` mm	`8` mm	`8.7` mm	`12` mm	`0.05` kg
`35151122`	`22`	`33` mm	`35.1` mm	`7.5` mm	`22.5` mm	`25.3` mm	`8` mm	`10.5` mm	`12` mm	`0.09` kg
`35151126`	`26`	`39` mm	`41.1` mm	`8.5` mm	`23.2` mm	`28.3` mm	`8` mm	`12.8` mm	`12` mm	`0.12` kg
`35151130`	`30`	`45` mm	`47.1` mm	`10` mm	`27.2` mm	`30.3` mm	`12` mm	`14.8` mm	`12` mm	`0.17` kg
