Chiaravalli

Special Bevel Gear M2.5 1:1

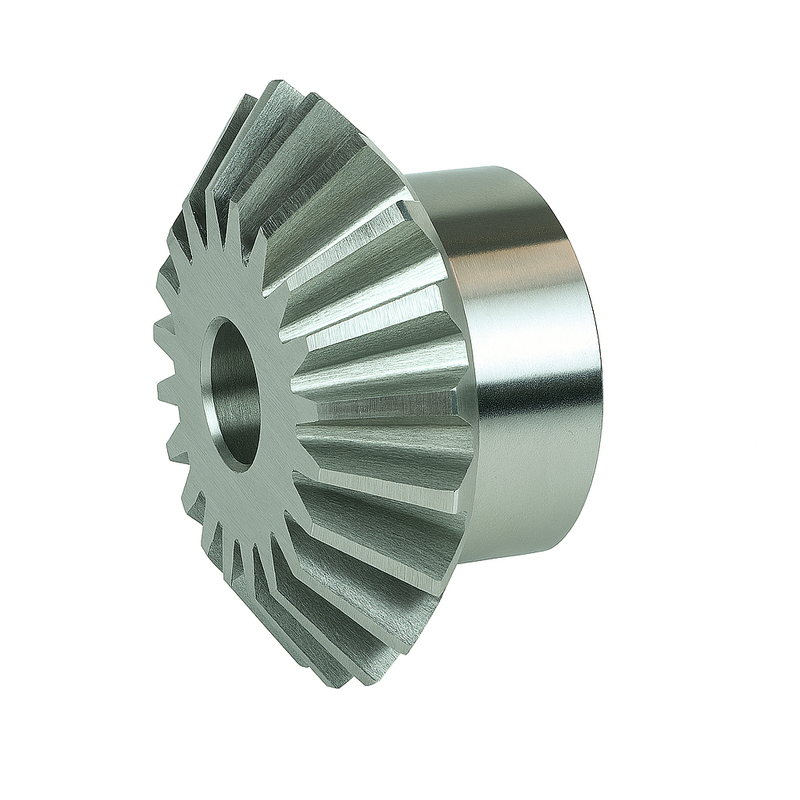

Name: Chiaravalli Special Bevel Gear M2.5 1:1
Brand: Chiaravalli

Bevel Gears · M2.5 1:1

Select a row to add it to your quote

Teeth

Code	Z	dp	de	F	A	dm	D1	V	Lm	Weight
`35251116`	`16`	`40` mm	`43.5` mm	`10` mm	`28.1` mm	`30.3` mm	`12` mm	`11.9` mm	`15` mm	`0.14` kg
`35251119`	`19`	`47.5` mm	`51` mm	`11` mm	`27.1` mm	`35.3` mm	`12` mm	`14.9` mm	`13` mm	`0.21` kg
`35251122`	`22`	`55` mm	`58.5` mm	`12` mm	`30.1` mm	`45.3` mm	`16` mm	`17.9` mm	`16` mm	`0.36` kg
`35251126`	`26`	`65` mm	`68.5` mm	`15` mm	`33.2` mm	`45.3` mm	`16` mm	`20.8` mm	`16` mm	`0.47` kg
`35251130`	`30`	`75` mm	`78.5` mm	`16` mm	`39` mm	`50.3` mm	`16` mm	`25` mm	`20` mm	`0.74` kg
