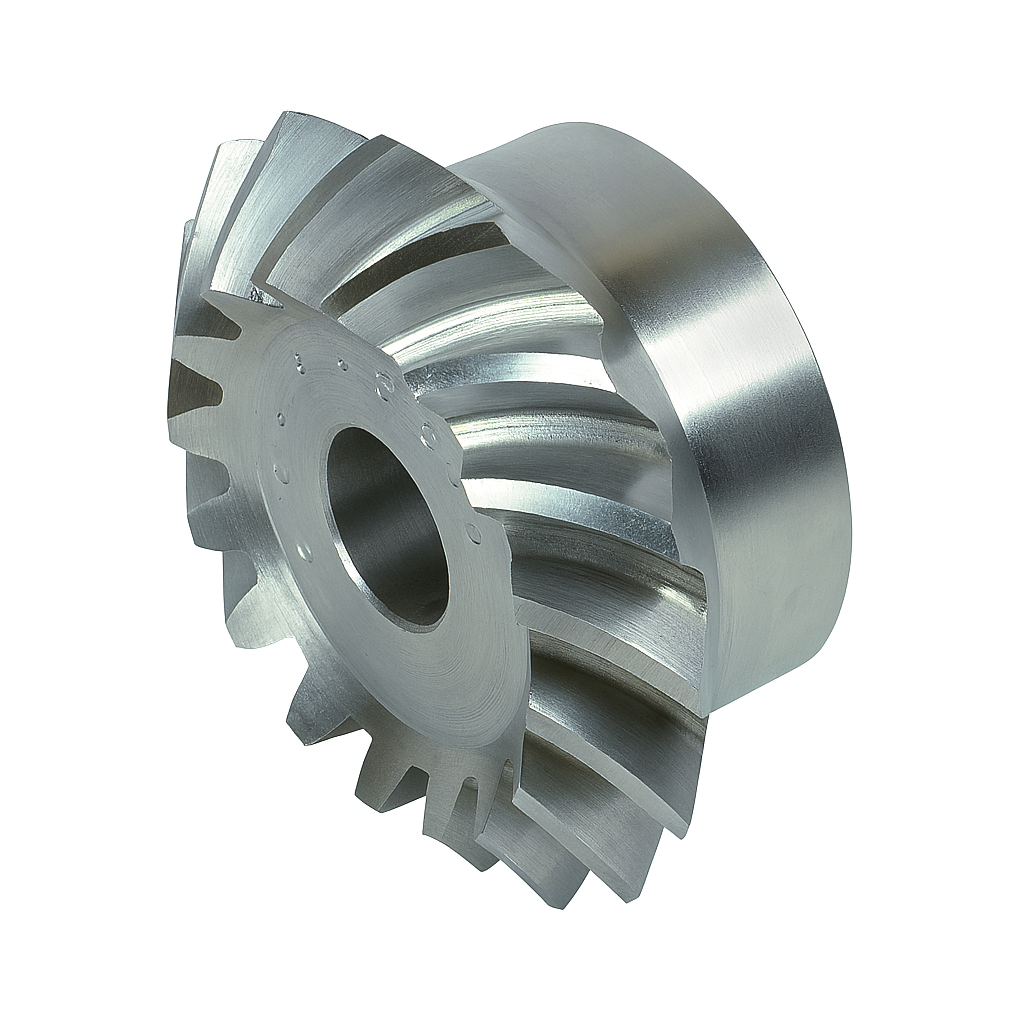

Chiaravalli Spiral Bevel Gear M1.5 1:1
Chiaravalli

Spiral Bevel Gear M1.5 1:1

Bevel Gears · M1.5 1:1

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31151117 16 24 mm 18 mm 8 mm 6 mm 25.3 mm 9 mm 16 mm 16.7 mm 24 0.04 kg
31151116 16 24 mm 18 mm 8 mm 6 mm 25.3 mm 9 mm 16 mm 16.7 mm 24 0.04 kg
31151121 20 30 mm 22 mm 8 mm 7 mm 31.3 mm 10 mm 18 mm 19.4 mm 29 -0,05 0.12 kg
31151120 20 30 mm 22 mm 8 mm 7 mm 31.3 mm 10 mm 18 mm 19.4 mm 29 -0,05 0.12 kg
31151126 25 37.5 mm 28 mm 8 mm 8 mm 38.8 mm 11.5 mm 21 mm 22.5 mm 35 -0,1 0.21 kg
31151125 25 37.5 mm 28 mm 8 mm 8 mm 38.8 mm 11.5 mm 21 mm 22.5 mm 35 -0,1 0.21 kg
31151131 30 45 mm 32 mm 10 mm 10 mm 46.3 mm 11 mm 23 mm 25.1 mm 40 0.4 kg
31151130 30 45 mm 32 mm 10 mm 10 mm 46.3 mm 11 mm 23 mm 25.1 mm 40 0.4 kg

Product Information

Module (m)
1.5
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:1
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M1.5 1:1
  • spiral bevel M1.5
  • M1.5 ratio 1:1 bevel
