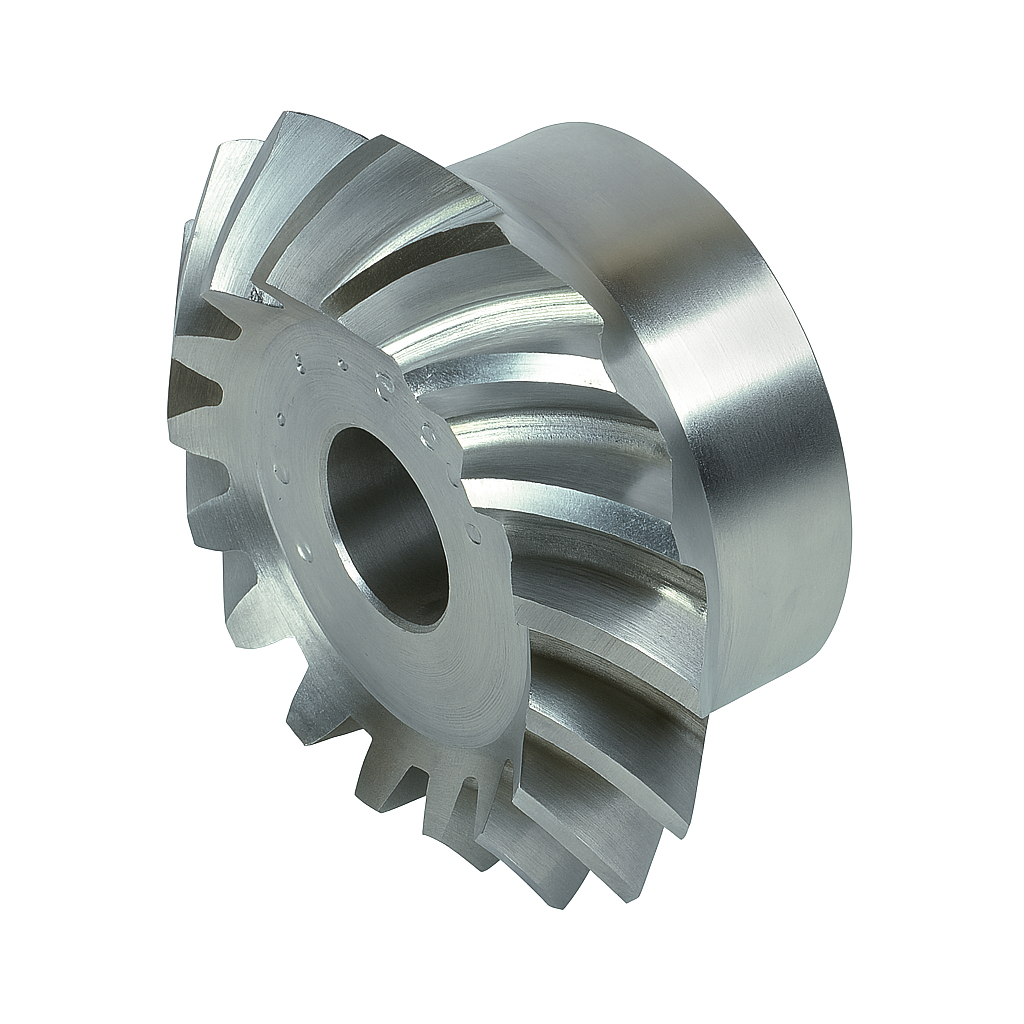

Chiaravalli Spiral Bevel Gear M1.5 1:2
Chiaravalli

Spiral Bevel Gear M1.5 1:2

Bevel Gears · M1.5 1:2

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31151216 16 24 mm 20 mm 10 mm 8 mm 26.5 mm 9.5 mm 17 mm 18.6 mm 35 -0,05 / -0,1 0.07 kg
31151232 32 48 mm 32 mm 12 mm 8 mm 48.3 mm 10 mm 18 mm 20 mm 28 -0,05 / -0,1 0.29 kg

Product Information

Module (m)
1.5
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:2
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M1.5 1:2
  • spiral bevel M1.5
  • M1.5 ratio 1:2 bevel
