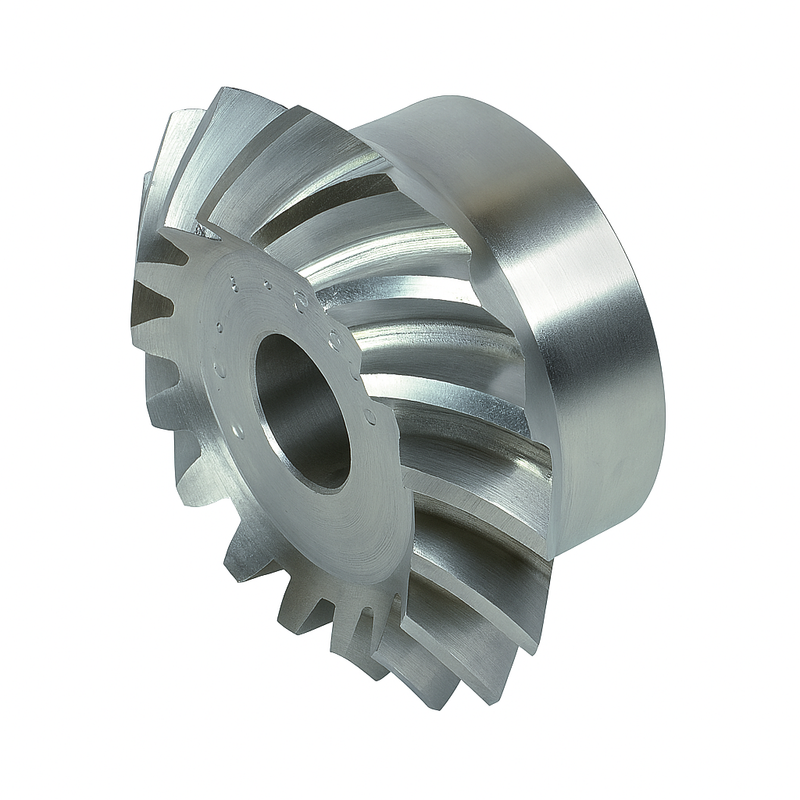

Chiaravalli Spiral Bevel Gear M2 1:1
Chiaravalli

Spiral Bevel Gear M2 1:1

Bevel Gears · M2 1:1

Product Configuration

Select a row to add it to your quote

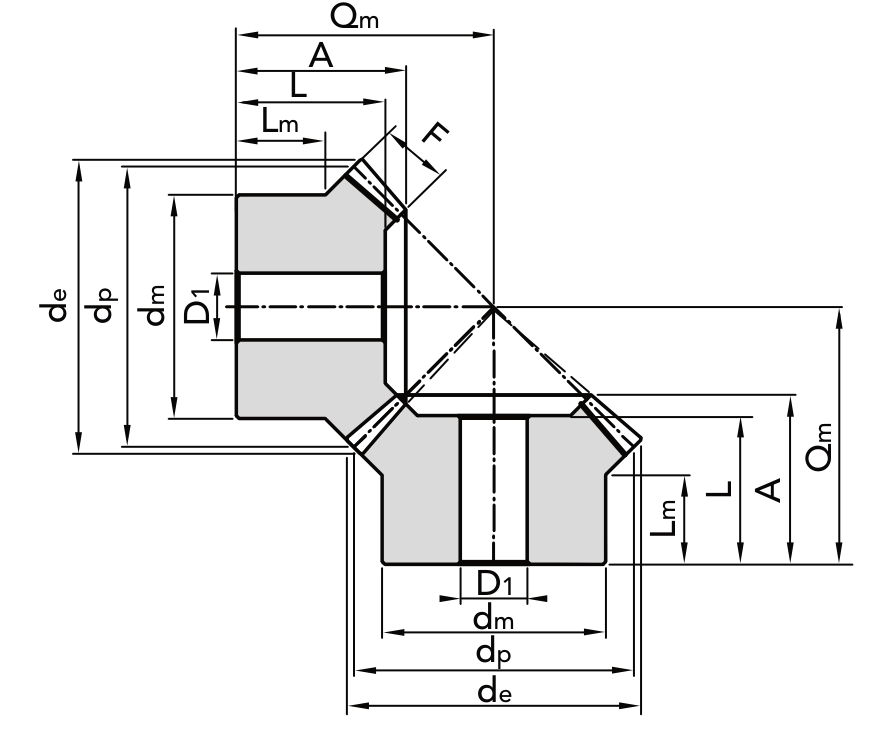

Code ZdpdmD1FdeLmLAQm Weight CAD
31201117 16 32 mm 25 mm 10 mm 9 mm 34 mm 9.45 mm 16.9 mm 19.9 mm 29 0.06 kg
31201116 16 32 mm 25 mm 10 mm 9 mm 34 mm 9.45 mm 16.9 mm 19.9 mm 29 0.06 kg
31201121 20 40 mm 32 mm 10 mm 12 mm 42 mm 11.95 mm 21.7 mm 24.9 mm 36 -0,05 0.14 kg
31201120 20 40 mm 32 mm 10 mm 12 mm 42 mm 11.95 mm 21.7 mm 24.9 mm 36 -0,05 0.14 kg
31201126 25 50 mm 40 mm 12 mm 14 mm 52 mm 11.9 mm 24.8 mm 27.4 mm 42 -0,1 0.25 kg
31201125 25 50 mm 40 mm 12 mm 14 mm 52 mm 11.9 mm 24.8 mm 27.4 mm 42 -0,1 0.25 kg
31201131 30 60 mm 50 mm 12 mm 16 mm 62 mm 12.95 mm 26.9 mm 29.9 mm 48 0.42 kg
31201130 30 60 mm 50 mm 12 mm 16 mm 62 mm 12.95 mm 26.9 mm 29.9 mm 48 0.42 kg

Product Information

Module (m)
2.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:1
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M2 1:1
  • spiral bevel M2
  • M2 ratio 1:1 bevel
