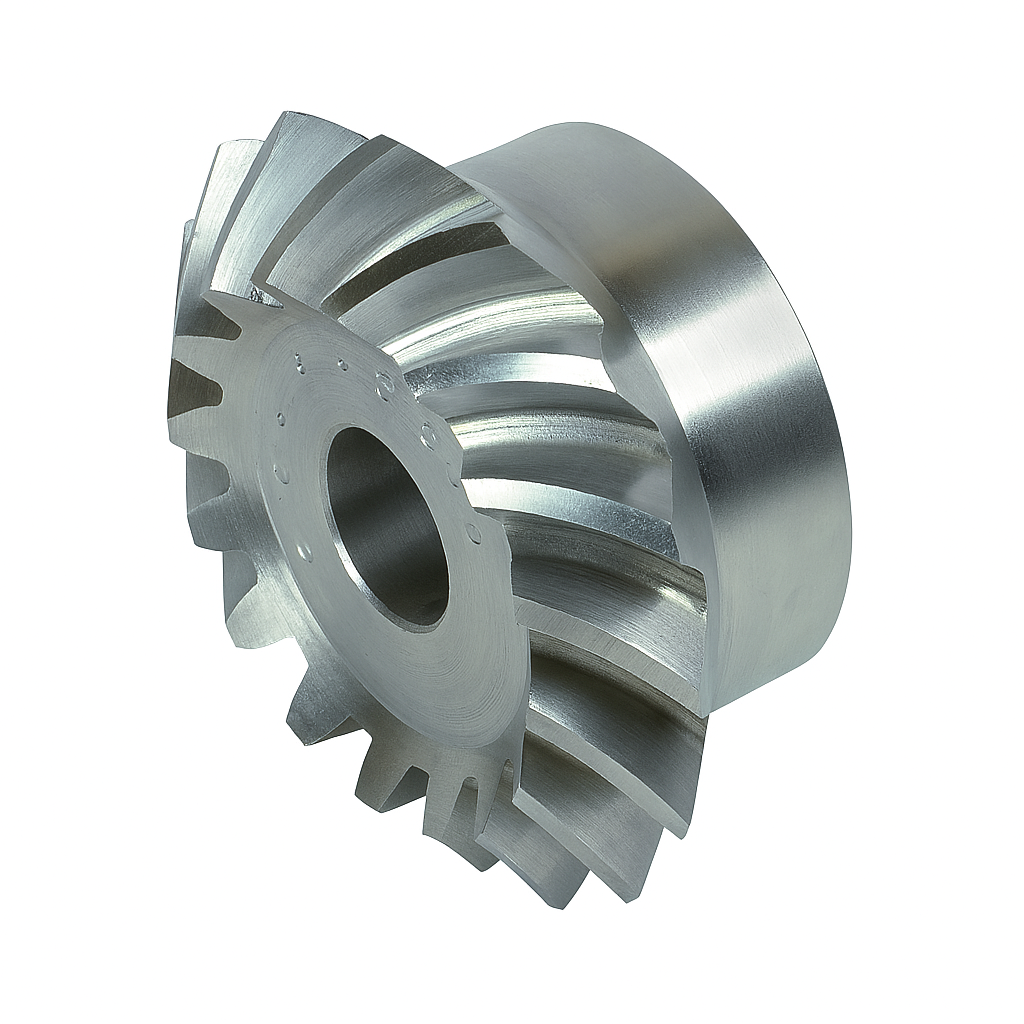

Chiaravalli Spiral Bevel Gear M2 1:2
Chiaravalli

Spiral Bevel Gear M2 1:2

Bevel Gears · M2 1:2

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31201216 16 32 mm 27 mm 10 mm 10 mm 35.5 mm 11.7 mm 21 mm 22.5 mm 45 -0,05 / -0,1 0.09 kg
31201232 32 64 mm 40 mm 12 mm 10 mm 64.5 mm 10 mm 21.5 mm 24.1 mm 35 -0,05 / -0,1 0.32 kg

Product Information

Module (m)
2.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:2
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M2 1:2
  • spiral bevel M2
  • M2 ratio 1:2 bevel
