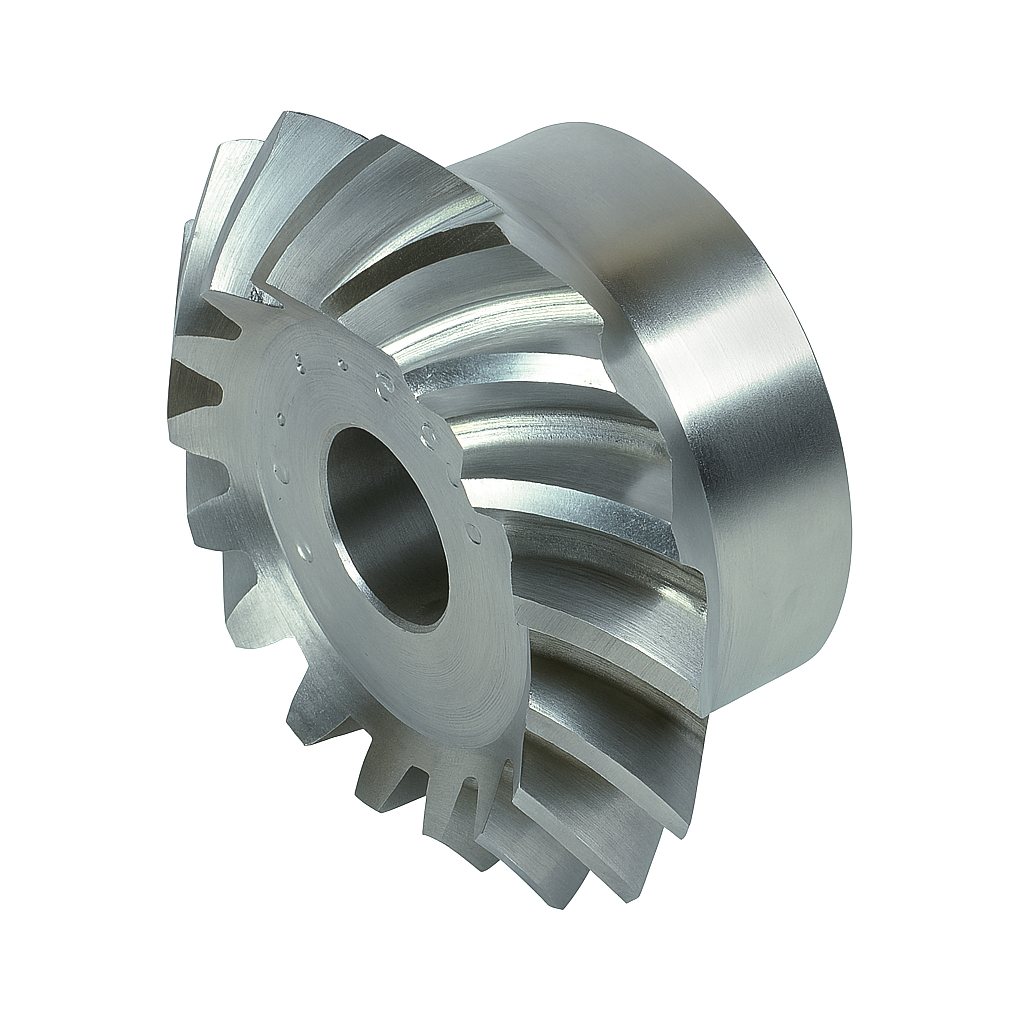

Chiaravalli Spiral Bevel Gear M2.5 1:1
Chiaravalli

Spiral Bevel Gear M2.5 1:1

Bevel Gears · M2.5 1:1

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31251117 16 40 mm 32 mm 12 mm 10 mm 42.5 mm 13 mm 21.8 mm 24.8 mm 37 0.13 kg
31251116 16 40 mm 32 mm 12 mm 10 mm 42.5 mm 13 mm 21.8 mm 24.8 mm 37 0.13 kg
31251121 20 50 mm 40 mm 12 mm 12 mm 52.5 mm 16 mm 26.7 mm 30.2 mm 46 -0,05 0.27 kg
31251120 20 50 mm 40 mm 12 mm 12 mm 52.5 mm 16 mm 26.7 mm 30.2 mm 46 -0,05 0.27 kg
31251126 25 62.5 mm 50 mm 15 mm 15 mm 65 mm 16 mm 29.9 mm 33.2 mm 53 -0,1 0.47 kg
31251125 25 62.5 mm 50 mm 15 mm 15 mm 65 mm 16 mm 29.9 mm 33.2 mm 53 -0,1 0.47 kg
31251131 30 75 mm 55 mm 15 mm 18 mm 77.5 mm 16 mm 31.8 mm 35 mm 59 0.69 kg
31251130 30 75 mm 55 mm 15 mm 18 mm 77.5 mm 16 mm 31.8 mm 35 mm 59 0.69 kg

Product Information

Module (m)
2.5
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:1
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M2.5 1:1
  • spiral bevel M2.5
  • M2.5 ratio 1:1 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
