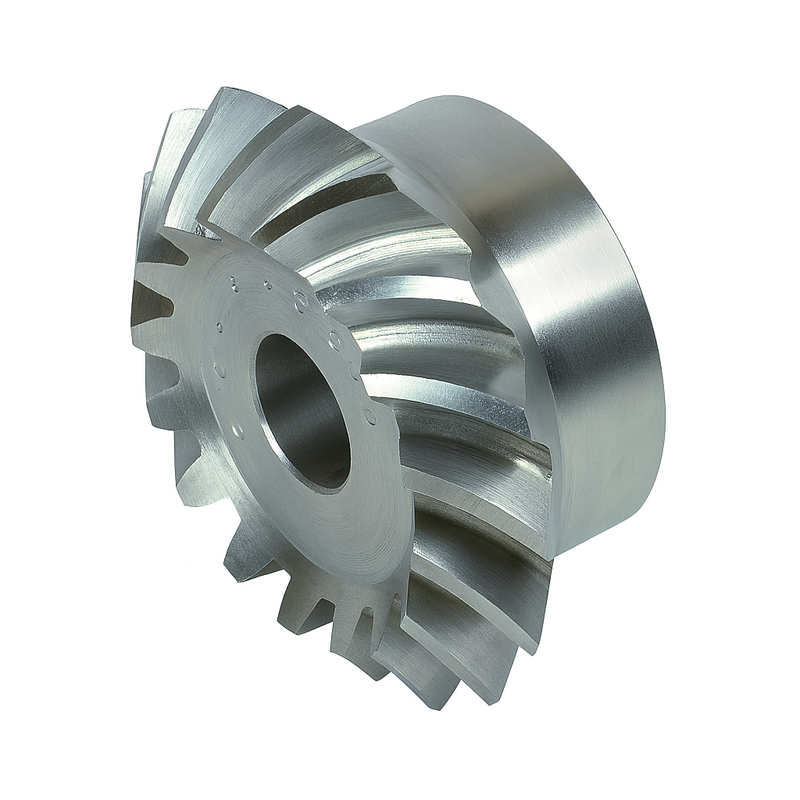

Chiaravalli Spiral Bevel Gear M3 1:1
Chiaravalli

Spiral Bevel Gear M3 1:1

Bevel Gears · M3 1:1

Product Configuration

Select a row to add it to your quote

Code ZdpdmD1FdeLmLAQm Weight CAD
31301117 16 48 mm 40 mm 15 mm 12 mm 51 mm 16 mm 25.8 mm 29.4 mm 44 0.23 kg
31301116 16 48 mm 40 mm 15 mm 12 mm 51 mm 16 mm 25.8 mm 29.4 mm 44 0.23 kg
31301121 20 60 mm 45 mm 15 mm 18 mm 63 mm 13.5 mm 30.7 mm 34.5 mm 51 -0,076 0.41 kg
31301120 20 60 mm 45 mm 15 mm 18 mm 63 mm 13.5 mm 30.7 mm 34.5 mm 51 -0,076 0.41 kg
31301126 25 75 mm 55 mm 15 mm 20 mm 78 mm 16 mm 33.7 mm 37.5 mm 60 -0,127 0.72 kg
31301125 25 75 mm 55 mm 15 mm 20 mm 78 mm 16 mm 33.7 mm 37.5 mm 60 -0,127 0.72 kg
31301131 30 90 mm 60 mm 20 mm 22 mm 93 mm 19 mm 35.8 mm 39.5 mm 68 0.99 kg
31301130 30 90 mm 60 mm 20 mm 22 mm 93 mm 19 mm 35.8 mm 39.5 mm 68 0.99 kg

Product Information

Module (m)
3.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:1
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M3 1:1
  • spiral bevel M3
  • M3 ratio 1:1 bevel

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
