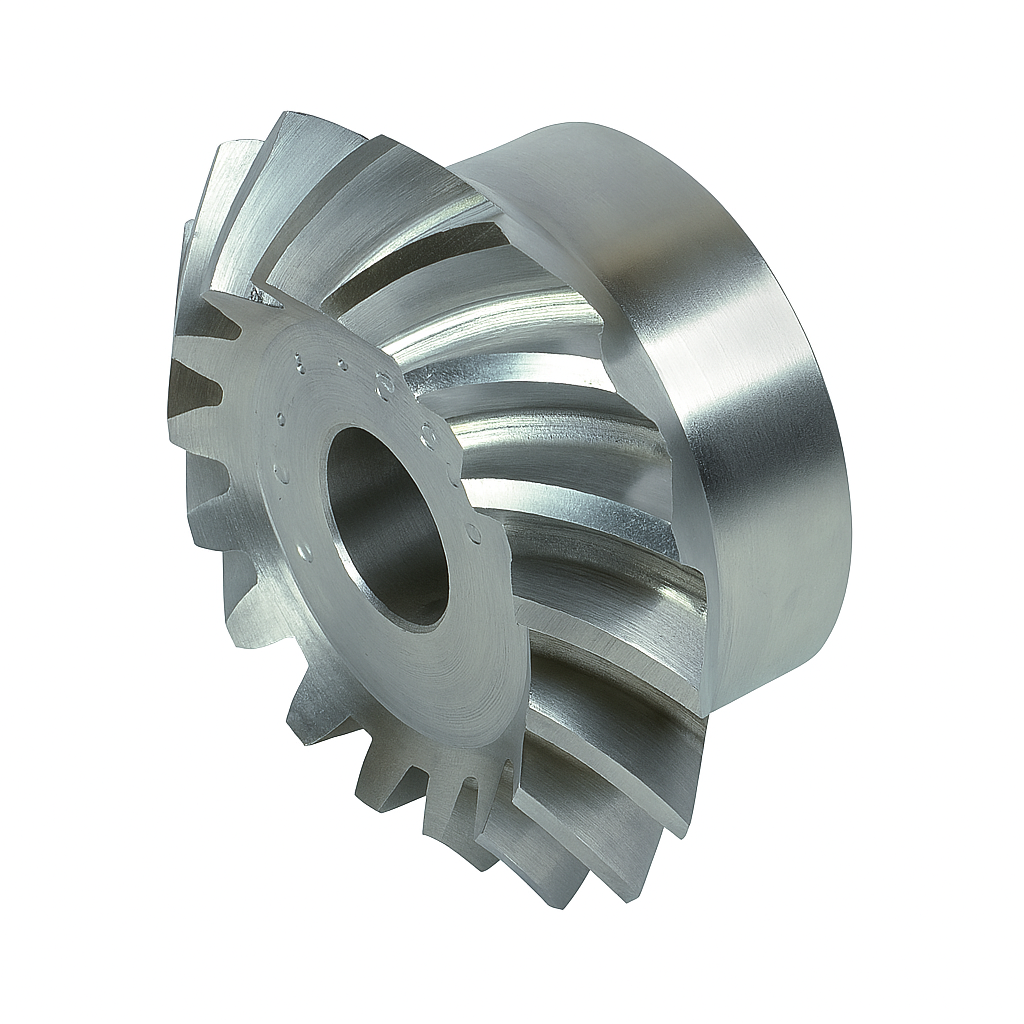

Chiaravalli Spiral Bevel Gear M3 1:2
Chiaravalli

Spiral Bevel Gear M3 1:2

Bevel Gears · M3 1:2

Product Configuration

Select a row to add it to your quote

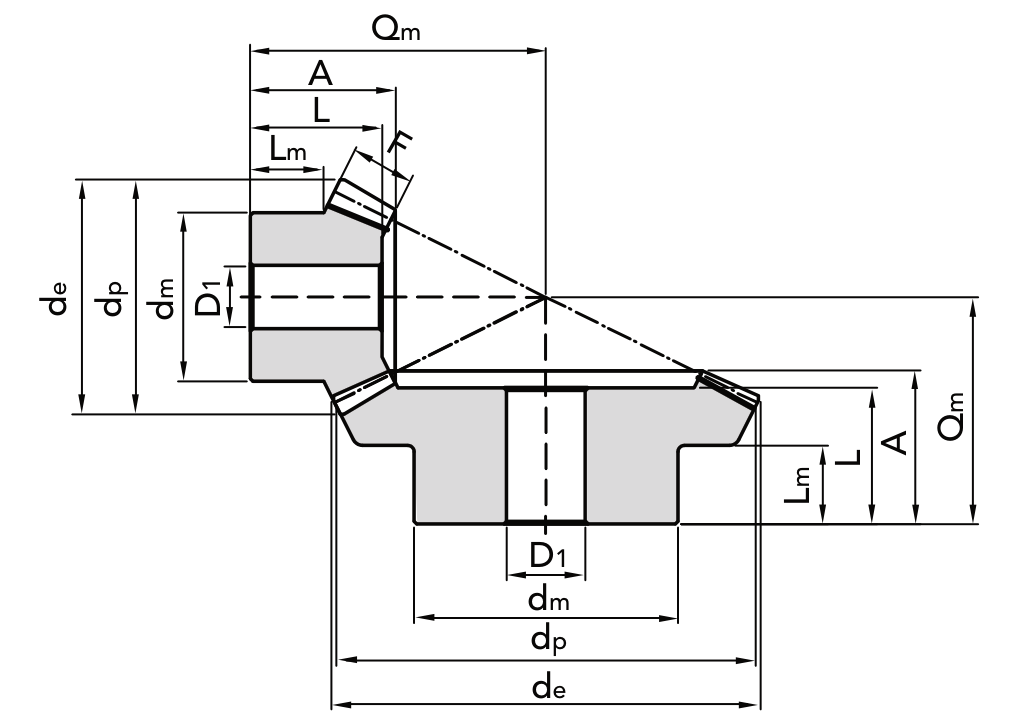

Code ZdpdmD1FdeLmLAQm Weight CAD
31301216 16 48 mm 40 mm 15 mm 15 mm 53.5 mm 12 mm 25.2 mm 28.4 mm 62 -0,076 / -0,127 0.25 kg
31301232 32 96 mm 60 mm 15 mm 15 mm 97 mm 15 mm 29.8 mm 34.6 mm 51 -0,076 / -0,127 1.03 kg

Product Information

Module (m)
3.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:2
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M3 1:2
  • spiral bevel M3
  • M3 ratio 1:2 bevel
