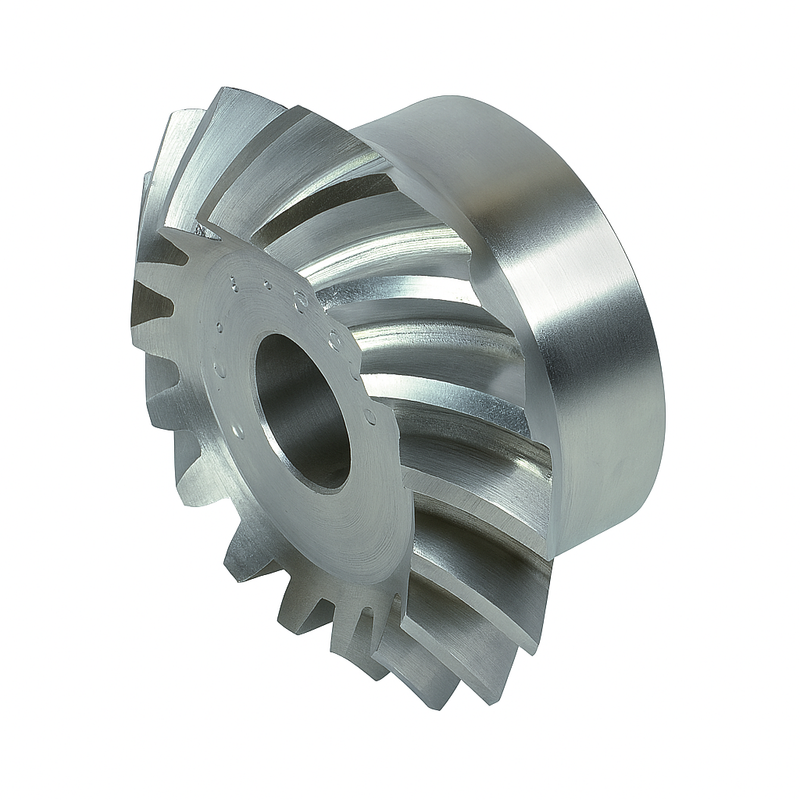

Chiaravalli Spiral Bevel Gear M4 1:1
Chiaravalli

Spiral Bevel Gear M4 1:1

Bevel Gears · M4 1:1

Product Configuration

Select a row to add it to your quote

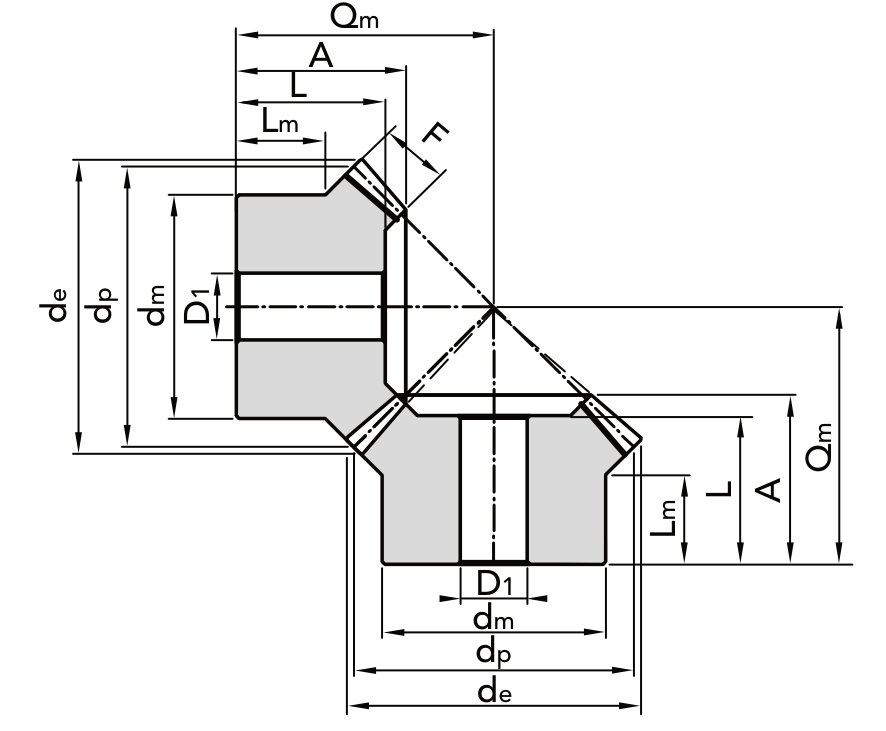

Code ZdpdmD1FdeLmLAQm Weight CAD
31401117 16 64 mm 50 mm 15 mm 15 mm 68 mm 17.75 mm 30.8 mm 36 mm 56 0.51 kg
31401116 16 64 mm 50 mm 15 mm 15 mm 68 mm 17.75 mm 30.8 mm 36 mm 56 0.51 kg
31401121 20 80 mm 60 mm 18 mm 17 mm 84 mm 18 mm 32.5 mm 37.5 mm 64 -0,102 0.81 kg
31401120 20 80 mm 60 mm 18 mm 17 mm 84 mm 18 mm 32.5 mm 37.5 mm 64 -0,102 0.81 kg
31401126 25 100 mm 70 mm 20 mm 21 mm 104 mm 18 mm 35.2 mm 40.4 mm 74 -0,152 1.33 kg
31401125 25 100 mm 70 mm 20 mm 21 mm 104 mm 18 mm 35.2 mm 40.4 mm 74 -0,152 1.33 kg
31401131 30 120 mm 80 mm 25 mm 25 mm 124 mm 16 mm 38.1 mm 43.2 mm 84 2.1 kg
31401130 30 120 mm 80 mm 25 mm 25 mm 124 mm 16 mm 38.1 mm 43.2 mm 84 2.1 kg

Product Information

Module (m)
4.0
Pressure Angle (α)
20°
Bevel Type
Spiral
Ratio (i)
1:1
Standard
Gleason system
Material
C45 UNI 7847

Cross-References

Also Known As

  • bevel gear M4 1:1
  • spiral bevel M4
  • M4 ratio 1:1 bevel
